Glasbord Hygienic Liners

Our range of fibreglass reinforced plastic (FRP) offers a number of significant features including resistance to mold, mildew, and bacteria growth, high impact strength, high moisture resistance, chemical resistance, stain resistance, sanitary finish, low maintenance, and easy installation.

If you would like more information, contact our office on
1800 051 100.

If you would like more information about our new range of soundproofing membranes, watch the Tecsound® video or give our office a call on 1800 051 100.

Product GuideProduct Guide
Glasbord Liners
Wall and Ceiling liners
  • Abattoirs, butchers and boning rooms
  • Commercial kitchens
  • Food processing plants
  • Public Restrooms
Glasbord Sandwich Panels
Glasbord + Dow Styrofoam Insulation
  • High corrosive environments ie cheese, fish and butter
  • Cool-rooms
  • Moist-rooms
  • Storage areas
  • Ripening rooms
Innovative Finishes
Decorative Wall Liners
  • Restaurants and cafe’s
  • Reception areas and waiting rooms
  • Assisted living centres
  • School hallways
Sanigrid
Ceiling Grid System
  • Chemical processing plants
  • Laboratories
  • Public Restrooms
  • Locker rooms
  • Dormitories
  • Kennels and catteries
Kemply
Glasbord + Rigid Substrate
  • Food processing plants
  • Fisheries
  • Refrigerated warehouses
  • Breweries
  • Laboratories
  • Chemical plants
  • Restaurant kitchens
  • Supermarkets
  • Day care centres
  • Public Bathrooms
Glasbord Accessories
  • Colour matched Glasbord panel mouldings including division bars, corners and angles
  • Glasbord Rollers
  • V-Notch Trowel
  • Advanced Polymer Adhesive



Glasbord Liners

Details

Glasbord fibreglass reinforced plastic (FRP) wall and ceiling liner panel system is a durable, flexible building material that will never mould, mildew, rot or corrode. Glasbord FRP wall and ceiling liner panel exhibits excellent resistance to mild chemicals and moisture and has a Class C rating from flame spread and smoke development when tested per ASTM E-84.

Glasbord FRP wall and ceiling liner panels have an unique surface treatment called Surfaseal that, when compared to ordinary FRP, exhibits up to ten times the cleanability, six times the stain resistance and twice the abrasion resistance.

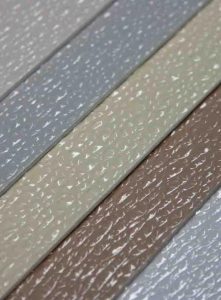

Glasbord FRP with Surfaseal embossed liner panels are designed for interior wall finishes where a Class C, sanitary, easy to clean panel is desired. Glasbord with Surfaseal FRP panels are approved for lay-in ceiling applications in a steel suspended ceiling system, without overlaid gypsum or insulation panels or blankets.

Applications

  • Abattoir’s, butchers and boning rooms
  • Commercial Kitchens
  • Food processing plants
  • Restaurants
  • Restrooms
  • Convenience Stores
  • Locker Rooms

Features

  • Mould, mildew and bacteria resistant
  • Easy to install
  • Cleanable
  • Durable
  • Available in a smooth or embossed finish in a range of decorative colours

Standards

  • Compliant with AS3837, AS1530, AS4674, BCA, HACCP and AQIS

Technical Data

Product Name:Glasbord with Surfaseal
Fibreglass reinforced plastic panel
Product Description:Glasbord with Surfaseal is a hygienic interior wall and ceiling fibreglass reinforced plastic (frp) liner panel system for use in high traffic areas such as commercial kitchens, food processing plants, restaurants and restrooms
Finish:Embossed
Product code:Glasbord PIF with Surfaseal
Colour:Thickness:White, Colonial White, Beige, Ivory, Pearl Grey, Silver, Black, Stone, custom colours*
Width x Length:2.3mm
Flexural Strength:1.2 x 2.4 m
Flexural Modulus:1.2 x 2.7 m
Tensile Strength:1.2 x 3.0 m
Tensile Modulus:59 MPa
Barcol Hardness:2413 MPa
Izod Impact
Water Absorption:
34 MPa
4137 MPa
35
0.32 J/mm
0.16% / 24hrs @ 25°C
Finish:Smooth
Product code:Glasbord PSIF with Surfaseal
Colour:White, Grey, custom colours*
Thickness:1.9 mm
Width x Length:1.2 x 2.4 m
Flexural Strength:1.2 x 3.0 m
Flexural Modulus:97 MPa
Tensile Strength:5171 MPa
Tensile Modulus:48 MPa
Barcol Hardness:4826 MPa
Izod Impact
Water Absorption:
45
0.21 J/mm
<0.75% / 24hrs @ 25°C

Additional colours available by quotation. 1,200m² per product, weight and colour required to manufacture.
Speak to your Glasbord representative today for further information.

Glasbord & Innovative Finish Silhouette Trims

Silhouette Trims offer a narrow profile to minimise the seam. Available in five colours to match the Innovative Finishes product range or pattern matched for Innovative Design panel installations.

Available in White, Almond Breeze, Fawn Brown, Morning Mist Grey.

Glasbord & Innovative Finish Standard Nylon Drive Rivets

Non-staining nylon drive rivets in matching panel colours are designed for quick and easy installation using only a hammer and drill. When used with silicone sealants, drive rivets maintain an effective moisture seal as well as providing excellent mechanical fastening for panels.

Available in White, Cream, Beige, Silver and Grey.

FRP Panel Roller

Handle quickly adjusts from 43cm to 68cm. Sturdy and nickel plated. No axle projections allowing for flush work into corners.

V-Notched Trowel

8mm x 4mm x 6mm V, cold rolled blade with moulded polypropylene handle.

Advanced Polymer Adhesives

High performance, professional strength advanced polymer adhesive specifically formulated to be used for most types of paneling installations.

Recommended substrates:
Gypsum, Wallboard, Fire Rated Plywood, Pressure Treated Plywood, Fibreglass faced Gypsum, Wallboard, Mould Resistant, Gypsum, Wallboard, Ceramic, Steel, Foamboard Vinyl, PVC, FRP, Lamiante and Concrete.

Glasbord Sandwich Panels

Details

Glasbord sandwich panels are the ideal solution for fast, flexible and cost effective sandwich constructions with the highest demands towards aesthetics and safety. Different versions with various insulating materials ensure optimum design conditions for the implementation of different applications. For example, the quality of Glasbord FXI is classified as fire retardant (B, s2, d 0) according to the European standard (EN 13501) and in connection with a Rockwool core a fire protection up to F90 can be achieved. Particularly important for the reliable durability, permanent good appearance and above all the safe hygienic surface, is the quality of the joints. To also ensure this aspect, DCTech offers a so-called “hard” grouting material. Which by itself is a remarkable product. But the mere implementation of existing products was not regarded as sufficient by DCTech. Therefore, a special grouting material was developed which was optimally adapted for the material and the application purpose. DCTech also offers an extensive range of accessories, to provide the perfect solution for every room setting and requirement.

Applications

  • High corrosive environments ie cheese, fish and butter
  • Cool-rooms
  • Moist-rooms
  • Fire safety panels
  • Storage areas
  • Ripening rooms

Features

  • Durable: a high load capacity and resiliency against bumps and scratches
  • Clean: can be cleaned simply and absolutely germ-free
  • Hygiene: homogeneous, non-porous Surfaseal surface that does not offer any breeding ground for microorganisms
  • Sealed: no joints or gaps thanks to a special grouting material and a rich assortment of accessories

Technical Data

Product Name:Glasbord Sandwich Panels
Internal:
  • PWI-P 2,3mm White or
  • FXI-E 2,3mm White with Surfaseal-foil
    Sealing: T-profile or 1C-/2C Sealant
External:
  • As per internal skin or,
  • Alu-Foil 0,1mm White
  • Steel galvanised 0,5mm (Z275)
    covered Polyester SP 5my or 25my (RAL 9002)
  • Steel galvanised 0,6mm (Z275)
    covered Polyester SP 5my or 25my (RAL 9002)
Core:
  • EPS 100kPa Hardly flammable (DIN 4102-B1) or,
  • EPS 150kPa Hardly flammable (DIN 4102-B1)
Fire Resistance:Combined elements are normal flammable (DIN 4102-B2)
PWI-P 2,3mm (DIN EN 13501:2010-E)
FXI-E 2,3mm (B,S2,D0 in DIN En-tests)
Insulation:Thermal conductivity WLG 040 or WLG 035
Sizes:Width 1.190mm
Covering Width 1.190mm
Maximum Length 8.000mm
Thickness 20mm bis 240mm



Skin
Material
Sandwich
Panel
Fire Resistant
Panel
SurfaceFire Classification
of Wall
Length
mm
Thickness
mm
Width
mm
PWIXEmbossedB2*60-2401196
PWI-PXEmbossedB2*60-2401196
PSI-FTXSmoothB2*60-2401196
FXXXEmbossedB1*60-2401180
FSI-EXSmoothB1*60-2401196
Core Material
PolystyrolXB1
GlasswoolXXB1
* LengthDepends on the requirements for insulation and fire resistance
Fittings

In specific area, such as ripening rooms, the need for system components is given. Corners are equipped with radius parts. These parts are produced with a Glasbord surface in a form press which means it is possible to product a maximum length of 4.0m. Within higher rooms the panels maximum radius is 50mm; lengths available of 300 x 600mm. Core thickness is between 20 and 80-240mm.

90° Corner

The back can be laminated with aluminum foil galvanised steel, standard fibreglass or Glasbord.

T-Part for separating Walls

The back can be laminated with aluminum foil galvanised steel, standard fibreglass or Glasbord

X-Part

4-sided Glasbord material

Sealants

Hydewa sealants in hard or soft design ensures a self-devloped and food-acceptable element. They are an ideal sealing material for sealing sandwich elements. 2-C Joint can be described as a maintenance free and has similar properties to the Glasbord surface. It is not prone to yellowing and the sealed surface rejects mould.

2-C Expoxy Joint Sealant and Filler

Connection and expansion joints without movement recording indoors. Repair of small defects of Glasbord. Solvent-free, thixitrop, quick setting, wide adhesion range.

Innovative Finishes

Details

Innovative Finishes wall and ceiling liner panels combine the traditional benefits of fibreglass reinforced plastic (FRP) with linen and sandstone textures and tile-look and beaded finishes to provide a panel with presence and style that performs. Innovative Finishes wall and ceiling liner panels exhibit excellent resistance to mild chemicals and moisture and has a Class A rating for flame spread and smoke development when tested per ASTM E-84.

Innovative Finishes FRP panels are designed for commercial interior wall and ceiling finishes where a Class A, sanitary, easy-to-clean panel is desired.

Applications

  • Restaurants and cafe’s
  • Reception areas
  • School hallways
  • Assisted living centers
  • Health clubs
  • Public Rest rooms

Features

  • Mould and mildew resistant
  • Easy to install
  • Cleanable
  • Durable
  • Available in a variety of textures and colours

Standards

  • ASTM E-84 Class A

Technical Data

Product Name:Innovative Finishes
Fibreglass reinforced plastic panel
Finish:Sandstone Scored
Product code:SSTC
Colour:Morning Mist Gray, Fawn Brown, Almond Breeze,
Cotton White, Willow Green, Red, Blue, Daisy Gold
Thickness:2.3 mm
Width x Length:1.2 m x 3.0 m  1.2 m x 2.4 m
Flexural Strength:103 MPa
Flexural Modulus:3447 MPa
Tensile Strength:55 MPa
Tensile Modulus:4137 MPa
Barcol Hardness:40
Izod Impact0.27 J/mm
Water Absorption:0.16% / 24hrs @ 25°C
Finish:Sandstone Scored
Product code:SSTC
Colour:Morning Mist Gray, Fawn Brown, Almond Breeze,
Cotton White, Willow Green, Red, Blue, Daisy Gold
Thickness:2.3 mm
Width x Length:1.2 m x 3.0 m

1.2 m x 2.4 m

Flexural Strength:103 MPa
Flexural Modulus:3447 MPa
Tensile Strength:55 MPa
Tensile Modulus:4137 MPa
Barcol Hardness:40
Izod Impact0.27 J/mm
Water Absorption:0.16% / 24hrs @ 25°C
Finish:Linen
Product code:LBCLN
Colour:Morning Mist Gray,Fawn Brown, Almond Breeze,
Cotton White, Willow Green
Thickness:2.3mm
Width x Length:1.2 m x 2.4 m
1.2 m x 3.0 m
Flexural Strength:103 MPa
Flexural Modulus:3447 MPa
Tensile Strength:55 MPa
Tensile Modulus:4137 MPa
Barcol Hardness:40
Izod Impact0.27 J/mm
Water Absorption:0.16% / 24hrs @ 25°C
Finish:Beaded
Product code:FTBB
Colour:Cotton White,
Thickness:2.3mm
Width x Length:1.2 m x 2.4 m
1.2 m x 3.0 m
Flexural Strength:97 MPa
Flexural Modulus:2758 MPa
Tensile Strength:41 MPa
Tensile Modulus:4137 MPa
Barcol Hardness:40
Izod Impact0.27 J/mm
Water Absorption:0.16% / 24hrs @ 25°C
Finish:Gelcoat Tile-Look with white sealed score lines
Product code:SMXGC
Colour:White Wash, Parchment
Thickness:2.3mm
Width x Length:1.2 m x 2.4 m
1.2 m x 3.0 m
Flexural Strength:103 MPa
Flexural Modulus:2758 MPa
Tensile Strength:55 MPa
Tensile Modulus:5171 MPa
Barcol Hardness:45
Izod Impact0.21 J/mm
Water Absorption:0.16% / 24hrs @ 25°C
Finish:Gelcoat Non-Tile-Look
Product code:MXGC
Colour:White Wash, Parchment
Thickness:2.3mm
Width x Length:1.2 m x 2.4 m
1.2 m x 3.0 m
Flexural Strength:103 MPa
Flexural Modulus:2758 MPa
Tensile Strength:55 MPa
Tensile Modulus:5171 MPa
Barcol Hardness:45
Izod Impact0.27 J/mm
Water Absorption:0.16% / 24hrs @ 25°C
Glasbord & Innovative Finish Silhouette Trims

Silhouette Trims offer a narrow profile to minimise the seam. Available in five colours to match the Innovative Finishes product range or pattern matched for Innovative Design panel installations.

Available in White, Almond Breeze, Fawn Brown, Morning Mist Grey.

Glasbord & Innovative Finish Standard Nylon Drive Rivets

Non-staining nylon drive rivets in matching panel colours are designed for quick and easy installation using only a hammer and drill. When used with silicone sealants, drive rivets maintain an effective moisture seal as well as providing excellent mechanical fastening for panels.

Available in White, Cream, Beige, Silver and Grey.

FRP Panel Roller

Handle quickly adjusts from 43cm to 68cm. Sturdy and nickel plated. No axle projections allowing for flush work into corners.

V-Notched Trowel

8mm x 4mm x 6mm V, cold rolled blade with moulded polypropylene handle.

Advanced Polymer Adhesives

High performance, professional strength advanced polymer adhesive specifically formulated to be used for most types of paneling installations.

Recommended substrates:
Gypsum, Wallboard, Fire Rated Plywood, Pressure Treated Plywood, Fibreglass faced Gypsum, Wallboard, Mould Resistant, Gypsum, Wallboard, Ceramic, Steel, Foamboard Vinyl, PVC, FRP, Lamiante and Concrete.

Sanigrid Ceiling Grid

Details

Sanigrid Ceiling Grid System

  1. Install Sanigrid wall angle at desired height around perimeter of room in the usual manner. Use non-corrosive fasteners appropriate for wall material. Pre-drill appropriate size hole for fastener’s.
  2. Install hanger eyes and wire at appropriate spacing per chart. use galvanised anchors and 12 ga. galvanised, monel, or stainless steel wire. (Use corrosion-resistant materials suitable for the intended environment).
  3. Secure main runners to hanger wires and make leveling adjustments. Where main tees butt, secure with connector clip. Additional holes may be drilled in main tees as required for proper alignment with hanger wires. Space holes no closer than 102mm (4″) from end of tee or another hole.
    IMPORTANT: Light fixtures must be installed to hang independently of the grid system.
  4. Where the main runner meets the wall angle, cut away the face of the runner so that the vertical web will rest on the wall angle. Scoring the runner on both sides of the vertical and horizontal web will assist in providing a clean break.
  5. Install a wall anchor clip and a diagonal hanger wire. This will prevent shifting and misalignment of the main runners.
  6. Install cross tees by positioning tee at the cross tee notch on the main tee. Both ends must be positioned at the same time. Then simply twist the cross tee into position. At the cross tee wall angel junction, cut away the face and install wall anchor as was done for the main runners.
  7. Install lay-in ceiling panels int he usual manner.
  8. Install two hold down clips along the cross tees only. Hold down clips are intended only to hold panels in position. They will not prevent warping under severe conditions.

Sanigrid Ceiling Panels

When FRP panels are used in conjunction with metal overlay gird system, the space between the panel and the grid system may be unacceptable. this issue is highlighted with the use of smooth FRP panels as illustrated in the photos below.

Using heavy duty grids with lip and flange may result in a space with FRP panels are installed in the grid.

When FRP panels are placed in the grid, there will be a space due to the design of the grid. This spaced is accented, when using smooth panels.

For best results please use only butt end ceiling grid systems or the Sanigrid Fibrelgass ceiling grid system when installing FRP as a ceiling panel.

Technical Data

Product Name:Sanigrid Ceiling Grid System
Product Description:Fibreglass ceiling grid system
Finish:Smooth
Product Code:SAN
Colour:White
Grid Size:0.6 m x 1.2 m
Rating:Light Duty: 10kg Hanger Wire Spacing: 1.2 m/oc
Intermediate Duty: 20kg Hanger Wire Spacing: 0.6 m/oc
Heavy Duty: 30kg Hanger Wire Spacing: 0.3 m/oc
Product Name:Glasbord with Surfaseal
Product Description:Fibreglass reinforced plastic panel
Finish:Embossed
Product Code:CGI
Colour:White
Width x Length:0.6 m x 1.2 m
Flexural Strength:69 MPa
Flexural Modulus:6722 MPa
Tensile Strength:25 MPa
Tensile Modulus:9653 MPa
Barcol Hardness:60
Izod Impact:0.34 J/mm
Water Absorption:0.16% / 24hrs @ 25°C

Kemply

Details

Kemply is fabricated by laminating the Glasbord fibreglass reinforced plastic (FRP) wall and ceiling panel to a rigid substrate such as plywood, gypsum or fluted polypropylene. The resulting Kemply panel has structural strength and rigidity, allowing installation directly to studs on the wall or ceiling.

Kemply panels can be used in a wide variety of applications where durability and ease of installation is a must.

Available Glasbord Finishes

  • Glasbord FRP Embossed PIF 2.3mm
  • Glasbord FRP Smooth PSIF 1.9mm

Available Substrates

  • Fluted Polypropylene
  • Oriented Strand Board
  • Gypsum
  • Plywood

Glasbord Features

  • Mould, mildew and bacteria resistant
  • Easy to install
  • Cleanable
  • Durable
  • Available in a smooth or embossed finish in a range of decorative colours

Glasbord Standards

  • Compliant with AS3837, AS1530, AS4674,
    BCA, HACCP and AQIS

Applications

  • Food processing plants
  • Fisheries
  • Refrigerated warehouses
  • Breweries
  • Laboratories
  • Chemical plants
  • Restaurant kitchens
  • Supermarkets
  • Day Care Centres
  • Public Bathrooms

Technical Data

Product Name:Glasbord Laminated Kemply Wall Panels
Product Description:Fabricated by laminating a Glasbord with Surfaseal panel to a rigid substrate. Kemply panels have structural strength and can be installed directly to studs or as a ceiling panel.
Substrates:Fluted Polypropylene
Oriented Stand Board
Gypsum
Plywood
Glasbord Finish:Embossed
Product Code:Glasbord PIF with Surfaseal
Colour:White, Colonial White, Beige, Ivory, Pearl Grey
Thickness:Silver, Black
Width x Length:2.3mm
1.2 x 2.4 m
1.2 x 2.7 m
Flexural Strength:1.2 x 3.0 m
Flexural Modulus:59 MPa
Tensile Strength:2413 MPa
Tensile Modulus:34 MPa
Barcol Hardness:4137 MPa
Izod Impact35
Product code:0.32 J/mm
0.16% / 24hrs @ 25°C
Glasbord Finish:Smooth
Product Code:Glasbord PSIF with Surfaseal
Colour:White, Grey
Thickness:1.9 mm
Width x Length:1.2 x 2.4 m
1.2 x 3.0 m
Flexural Strength:48 MPa
Flexural Modulus:4826 MPa
Tensile Strength:97 MPa
Tensile Modulus:5171 MP
Barcol Hardness:45
Izod Impact0.21 J/mm
Water Absorption:<0.75% / 24hrs @ 25°C
Glasbord & Innovative Finish Silhouette Trims

Silhouette Trims offer a narrow profile to minimise the seam. Available in five colours to match the Innovative Finishes product range or pattern matched for Innovative Design panel installations.

Available in White, Almond Breeze, Fawn Brown, Morning Mist Grey.

Glasbord & Innovative Finish Standard Nylon Drive Rivets

Non-staining nylon drive rivets in matching panel colours are designed for quick and easy installation using only a hammer and drill. When used with silicone sealants, drive rivets maintain an effective moisture seal as well as providing excellent mechanical fastening for panels.

Available in White, Cream, Beige, Silver and Grey.

FRP Panel Roller

Handle quickly adjusts from 43cm to 68cm. Sturdy and nickel plated. No axle projections allowing for flush work into corners.

V-Notched Trowel

8mm x 4mm x 6mm V, cold rolled blade with moulded polypropylene handle.

Advanced Polymer Adhesives

High performance, professional strength advanced polymer adhesive specifically formulated to be used for most types of paneling installations.

Recommended substrates:
Gypsum, Wallboard, Fire Rated Plywood, Pressure Treated Plywood, Fibreglass faced Gypsum, Wallboard, Mould Resistant, Gypsum, Wallboard, Ceramic, Steel, Foamboard Vinyl, PVC, FRP, Lamiante and Concrete.
