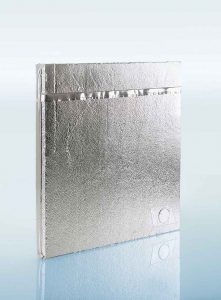

va-Q-vip

Details

va-Q-vip is an evacuated micro porous thermal insulating panel with excellent insulating properties. The core material of va-Q-vip is fumed Silica board and non-combustible. It is sealed into a high gas barrier film under vacuum.

Due to the special “edge fold technique va-Q-seam”, va-Q-vip has  smooth faces and sharp rectangular edges so that individual va-Q-vips can be tightly fitted together, making an almost seamless assembly possible. In general va-Q-vip is produced in rectangular shapes. It is also available on request in other shapes such as triangle, trapezium, corner cut and oval cut.

Applications

va-Q-vip is specially developed for insulation applications where not much space is available but a high thermal resistance is necessary. va-Q-vip is a successful insulation element in the following areas:

  • Building application (roofs, floors, etc)
  • Thermal packaging (Medical transport boxes, etc)
  • Appliances (Water boiler, etc)
  • Automotive (train, ships, aerospace, etc)

Benefits

  • Drastically reduced heat fluxes
  • Drastically reduced insulation thickness
  • Increased usable volume
  • All purpose VIP with a long service life

Technical data

Product Name:va-Q-vip
Evacuated micro porous thermal insulating panel
sealed into a high gas barrier film under vacuum
Surface Colour:Silver
Geometry:Rectangular shape (without protruding flanges*)
Density: (bulk, DIN EN 1602)180-210 kg/m³
Thermal conductivity:<0.005 W/(mK) @ 20mm thickness (measured value)
Temperature stability:-70°C to +70°C (due to the film)
Thermal shock resistance:Not sensitive to heat and cold shock in the given temperature range
Humidity stability:0% to 60%
Internal gas pressure:<5 mbar (at delivery)
Increase of gas pressure:Approximately 1mbar/year
(at 20mm thickness and normal room conditions)
Standard dimension:
(LxW) I & II
I: 1000mm x 600mm
II: 500mm x 600mm
Nonstandard dimension:
III & IV
III: Area > 0,10m² and <0,60m²
IV: Area <0,10m²
Special form:Triangle, trapezium, special shape, cornet cut, hole cut
and recessed surface
Thickness:10mm to 50mm
Size tolerance:
0 to 500mm
501 to 1000mm
+2 / -4mm
+2 / -5mm
Thickness tolerance:±1mm
Specific heat capacity:0.8 kJ (kg K) (at normal room temperature)
Mass per area:4 kg/m² (at 20mm thickness)
Compressive strength:Approximately 150kPa (at 10% compression)
Service Life:Extrapolated, depending on application up to 60 years.
For 10mm and 15mm thicknesses, if a flat edge is required, the flanges are refolded onto the main surface of panel.

All figures are intended as a guide and should not be used for preparing specifications.

Nominal Thickness to R-Value @ 10°C
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
100.0081.3
150.0081.9
200.0072.9
250.0073.6
300.0074.3
400.0075.7
500.0077.1

Details

va-Q-vip B is a vacuum insulation panel for construction applications.

va-Q-vip B is covered with a high barrier film and an additional black glass fibre textile for mechanical shock protection. The core itself is non-combustible (Fire class A1 in Europe). The va-Q-vip B with black glass fabric is inflammable (Construction materials class DIN 4102-B2).

va-Q-vip B is approved for general construction purposes in accordance with the approval number Z-23.11-1658, of the “Deutsches Institut für Bautechnik (DIBT)”.

va-Q-vip B panels have smooth edges and sharp corners due to special “edge fold technique va-Q-seam” so individual panels can therefore be joined almost seamlessly.

Applications

  • va-Q-vip B can be used in building applications for ceilings, walls, floors, flat roofs, top floor ceilings, exterior insulation behind panelling and insulation in wood frame construction.Planners, installation partners or architects are responsible for the relevant specific insulation system. Application systems for buildings can also be discussed directly with Dynamic Composite Technologies.

Features

  • Official approval for building material with assigned thermal conductivity 0.007 W/mK
  • Significantly reduced heat flows from minimal thickness
  • Saves space thus providing a much larger usable floor areas or ceiling heights
  • Extra protective layer for reliable installation

Technical data

Product Name:va-Q-vip-B
Vacuum insulation panel covered with a high barrier film
plus a black glass fibre textile for mechanical shock protection.
Surface Colour:Black
Geometry:Rectangular shape with flanges
Density: (bulk, DIN EN 1602)180-210 kg/m³
Thermal conductivity
Initial value:<0.0043 W/(mK) @ 20mm thickness (measured value)
Rated value including aging and edge losses:0.0070 W/(mK) for 20mm and greater thickness
0.0080 W/(mK) at 10-15mm thickness
If aerated:0.020 W/(mK)
Temperature stability:-70°C to +70°C
Thermal shock resistance:Insensitive to heat and cold shock in the given temperature range
Humidity stability:0% to 60%
Internal gas pressure:<5 mbar (at delivery)
Increase of gas pressure:Approximately 1mbar/year (measure, 20mm thickness)
Standard dimension:
(LxW) I & II
I: 1000mm x 600mm
II: 500mm x 600mm
Nonstandard dimension:
III & IV
III: Area > 0,10m² and <0,60m²
IV: Area <0,10m²
Special design:Triangle, trapezium, corner cut, recessed surface and
panel with hole, flanges folding by 10mm/15mm thickness
Nominal Thickness:10mm to 50mm
Size tolerance:
0 to 500mm
501 to 1000mm
+2 / -4mm
+2 / -5mm
Thickness tolerance: ±1mm
Specific heat: 0.8 kJ (kg K) (at room temperature)
Mass per area: 4 kg/m² (at 20mm thickness)
Compressive strength: Approximately 150kPa (at 10% compression)
Flammability: DIN 4102 – B2
Service Life: Extrapolated, depending on application up to 60 years.
 * For 10mm and 15mm thicknesses, if a flat edge is required, the flanges are refolded onto the main surface of panel.

All figures are intended as a guide. Please discuss with Dynamic Composite Technologies when preparing specifications.



Nominal Thickness to R-Value
@ 10°C (Assigned by Deutsches Institut fur Bautechnil DBIt)
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
100.0081.3
150.0081.9
200.0072.9
250.0073.6
300.0074.3
400.0075.7

va-Q-floor F

Details

va-Q-floor F is a vacuum insulation panel for construction applications.

The core itself is non-combustible (fire class A1 in Europe), va-Q-floor F is inflammable (Construction materials class DIN 4102-B2) and approved for general construction purposes in accordance with the approval number Z-23.11-1658, of the “Deutsches Institut für Bautechnik (DIBT)”.

va-Q-floor F panels have smooth edges and sharp corners due to special “edge fold technique va-Q-seam” so individual panels can be joined almost seamlessly

Applications

va-Q-floor F can be used in buildings in accordance with application areas interior applications for ceilings, walls, floors, flat roofs, top floor ceilings, exterior insulation behind panelling and insulation in wood frame construction.

Planners, installation partners or architects are responsible for the relevant specific insulation system. Application systems for buildings can also be discussed directly with va-Q-tec.

As its name already suggests va-Q-floor F is especially suited for its application on floor areas.

Technical data

Product Name:va-Q-floor F
Surface Colour:Silver
Geometry:Rectangular shape (without protruding flanges*)
Density:180-210 kg/m³
Thermal conductivity:<0.0043 W/(mK) @ 20mm thickness
Temperature stability:-70°C to +70°C (due to the film)
Thermal shock resistance:Not sensitive to heat and cold shock in the given
temperature range
Humidity stability:0% to 60%
Internal gas pressure:<5 mbar (at delivery)
Increase of gas pressure:Approximately 1mbar/year
(at 20mm thickness and normal room conditions)
Standard dimension:500mm x 600mm
Special form:Triangle, trapezium, special shape, cornet cut, hole cut and
recessed surface
Nominal Thickness:15mm amd 20mm
Size tolerance
0 to 500mm:
+2 / -4mm
Thickness tolerance:±1mm
Specific heat capacity:0.8 kJ (kg K) (at normal room temperature)
Mass per area:4 kg/m² (at 20mm thickness)
Compressive strength:Approximately 150kPa (at 10% compression)
Service Life:Extrapolated, depending on application up to 60 years.
For 10 mm and 15 mm thickness, if a flat edge is required, the flanges are refolded onto the main surface of panel.

All figures are intended as a guide and should not be used for preparing specifications.

Nominal Thickness to R-Value @ 10°C
(Assigned by Deutsches Institut fur Bautechnil DBIt)
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
150.0081.9
200.0072.9

va-Q-vip F

Details

va-Q-vip F is a vacuum insulation panel for construction applications.
The core itself is non-combustible (fire class A1 in Europe), va-Q-vip F is inflammable (Construction materials class DIN 4102-B2).
va-Q-vip F is approved for general construction purposes in accordance with the approval number Z-23.11-1658, of the “Deutsches Institut für Bautechnik (DIBT)”.
va-Q-vip F panels have smooth edges and sharp corners due to special “edge fold technique va-Q-seam” so individual panels can therefore be joined almost seamlessly.

Applications

va-Q-vip F can be used in buildings in accordance with application areas interior applications for ceilings, walls, floors, flat roofs, top floor ceilings, exterior insulation behind panelling, insulation in wood frame construction to the standard DIN 4108-10, Table 1. Planners, installation partners or architects are responsible for the relevant specific insulation system. Application systems for buildings can also be discussed directly with va-Q-tec.

Features

  • Official approval for building material with assigned thermal conductivity 0.007 W/mK
  • Significantly reduced heat flows and thickness
  • Saves space providing more larger usable room area

Technical Data

Product Name:va-Q-vip F
Surface Colour:Silver
Geometry:Rectangular shape (without protruding flanges*)
Density: (bulk, DIN EN 1602)180-210 kg/m³
Thermal conductivity:
Initial value Rated value including aging and edge losses
If aerated
<0.0043 W/(mK) @ 20mm thickness
(measured value)0.0080 W/(mK) at 10-15mm thickness
0.0070 W/(mK) for 20mm and greater thickness0.020 W/(mK)
Temperature stability:-70°C to +70°C (due to the film)
Thermal shock resistance:Not sensitive to heat and cold shock in the given temperature range
Humidity stability:0% to 60%
Internal gas pressure:<5 mbar (at delivery)
Increase of gas pressure:Approximately 1mbar/year
(at 20mm thickness and normal room conditions)
Standard dimension:
(LxW) I & II
I: 1000mm x 600mm
II: 500mm x 600mm
Nonstandard dimension:
III & IV
III: Area > 0,10m² and <0,60m²
IV: Area <0,10m²
Special form:Triangle, trapezium, special shape, cornet cut, hole cut
and recessed surface
Nominal Thickness:10mm to 50mm
Size tolerance:
0 to 500mm
501 to 1000mm
+2 / -4mm
+2 / -5mm
Thickness tolerance:±1mm
Specific heat capacity:0.8 kJ (kg K) (at normal room temperature)
Mass per area:4 kg/m² (at 20mm thickness)
Compressive strength:Approximately 150kPa (at 10% compression)
Service Life:Extrapolated, depending on application up to 60 years.
For 10mm and 15mm thicknesses, if a flat edge is required, the flanges are refolded onto the main surface of panel.

All figures are intended as a guide and should not be used for preparing specifications.

Nominal Thickness to R-Value @ 10°C
(Assigned by Deutsches Institut fur Bautechnil DBIt)
Nominal Thickness
mm
Lambda/K Value/
Thermal Conductivity
R Value
100.0081.3
150.0081.9
200.0072.9
250.0073.6
300.0074.3
400.0075.7

VIP FAQ

Space saving and energy efficient VIPs

What are VIPs?

VIPs – or vacuum insulation panels – are flat panels for optimised temperature insulation that are based on the principle of the thermos flask. These panels offer unrivaled heat insulation at minimum thickness.

What are VIPs made of?

The pressure-resistant core material consists of a compressed plate of micro-porous powder. The core is evacuated and sealed in a high-barrier film using a special technique. The specialist foil used in the manufacture of VIPs also offers protection against air or water intrusion.

What can VIPs do?

VIPs offer ten times higher thermal insulation than traditional insulation materials of the same thickness. Example: 2 cm of VIP insulation will replace 20 cm of fibre or foam insulation. VIPs also offer a service life of up to 50 years. Fridges equipped with our VIPs use up to 50% less electricity, and containers with VIPs provide up to five days of constant temperature for heat or cold-sensitive cargo – without any external power supply. Using VIPs in new building construction or in refurbishment will significantly reduce heating costs and therefore improve the carbon footprint.

Where are VIPs used?

VIPs are used wherever precise heat insulation is required but the available space is limited. The innovative and eco-friendly VIPs by va-Q-tec AG are used in thermal packaging for the pharmaceutical sector, in fridges and freezers, buildings, technology and industry, and in the automotive and aviation sectors.

Lifetime of VIPs

The life time of vacuum insulation panels depends on the characteristics of the film, the size of the pores of the core materials and on the thickness of the panel.

The film of the VIPs drastically reduces the transmission of water vapour and air. A good barrier against penetrating gases is an aluminium laminated film. This however causes heat leaks at the VIP edge and thus is only suitable for large vacuum insulation panels.

Metallized film, i.e. a very thin Al-layer within a high barrier film avoids these heat bridges. Micro-porous Silica has the smallest pore size.: smaller than 0.5 µm. Thus the thermal conduction of air is partially suppressed even at ambient gas pressures.: At a gas pressure of 100 mbar the thermal conductivity of a Silica VIP is only 0.007 W/mK. A totally aired (1000 mbar) va-Q-vip has a thermal conductivity of 0.020 W/mK, which is the worst case.

Increase of Gas Pressure

Long term investigations with 20 mm thick micro-porous Silica VIPs, which were wrapped into a metallized high barrier film, show that the gas pressure at ambient temperatures does not rise more than 1 mbar per year.(see Fig. 3)

That means the increase of the gas pressure after 50 years is about 50 mbar. This corresponds to a rise of the thermal conductivity to a maximum of 0.008 W/mK. That means, that the life time of a 20 mm thick VIP can be up to 30 years. A dry ambient condition for the VIP is very important, because high humidity can influence the film of VIPs.

Accordingly the life time of a 10mm VIP is reduced to half the time compared with a 20 mm VIP. For 40 mm VIPs the life time is doubled.

Quality Control of Film

For quality control and development of advanced products it is not only necessary to know the actual gas pressure within the VIP but it is also important to measure the change of gas pressure.

Previous measurements took a long time to get reliable results. Therefore va-Q-tec has developed several methods which allow to obtain information on the increase of gas pressure within a short time and thus to perform accelerated ageing tests.

In even a shorter time it is possible to reduce the increase of gas pressure by accurate thermal conductivity measurements of a VIP-sample containing a special core material. From the known relation between the thermal conductivity and the gas pressure of the core material the gas pressure increase can be calculated. An example with VIP containing a special core material and wrapped in a metallized film cover is shown in Fig. 4. Here the measurement took just one day and a clear increase of thermal conductivity, which is proportional to the increase of gas pressure, can be seen.

These methods help va-Q-tec to control the barrier properties of delivered films, the gas pressure of any produced VIP and to develop new kinds of vacuum insulation products.

Installation Guidance

Installation Guidance – Vacuum Insulated Panels

Va-Q-tec vacuum insulation panels are highly efficient thermal insulation materials. The extremely good insulation performance is based essentially on the suppression of the thermal conduction of the air inside the panels due to evacuation. The va-Q-vip B/F have general building material approval under the number Z-23.11-1658 in Germany. The core itself is seemed non-combustible (European Fire class A1). The wrapping is classified as inflammable according to construction materials class DIN 4102-B2.

Vacuum insulation panels in general need to be treated carefully. In the further processing and installation of the products, the following points must be noted in particular:

  • The vacuum insulation panels (VIPs) must not be mechanically damaged. Sawing, cutting, drilling and scratching in particular must be avoided.
  • The surface to which the VIPs are applied must be smooth, flat and free of edges and burrs.
  • The VIPs must not be exposed to high temperatures, high humidity levels and/or aggressive gases during storage or application. Persistent humidity levels above 60% relative humidity and temperatures above 50 °C in particular should be avoided.
  • Please note that thermal bridges occur to a much greater extent in VIP constructions than in constructions using conventional insulation materials. Since humidity in particular can condense at cold spot, corresponding vapour barriers must be used in constructions with VIPs. Vapour barriers can also minimise the risk of condensation on the panels.
  • During installation and use of VIPs, they must not be subjected to any, or if unavoidable only minor mechanical stresses. Point loads and persistent vibration or tension to the wrapping must be avoided.
  • In constructions with VIPs, care must be taken to ensure that they are subjected only to even, full-surface pressure loading.
  • The VIPs must be protected against tensile and shear forces. This can be achieved for example, by ensuring that the structural strength in a construction using VIPs is provided by other measures, and the VIPs are only required to function as thermal insulation.
  • Adhesive fixing of the VIPs can be carried out using 2-components polyurethane adhesive or hot-melt. Foaming with polyurethane foams is also possible. In all cases, care must be taken to ensure that the temperatures occurring during these processes do not exceed 100 °C. A test is advisable, and required, in individual cases.
  • High temperatures and high humidity can degrade the service life of VIPs  as can low temperatures and high humidity. Condensed water in particular should be avoided to the panel surfaces. During the installation of the panels, make sure that no moisture is present, for example from rain. Alkaline, aqueous adhesives may not be used for the installation of the panels. Dispersion adhesives and (two-component) PU foam are very well suited for the adhesion of VIPs.
  • It must be ensured that persons working with VIPs are adequately trained in advance. Fitting and working instructions in particular should be explained with regard to the individual application.
  • VIPs should be placed in such a way that the integrity of the overall application is not put at any risk.
  • The VIPs must also be adequately protected against damage during the usage phase, e.g. by fitting of an outer shell.
  • When installing in floor systems, avoid walking on unprotected VIPs.
