// THERMAL INSULATION // DCT XPS Block

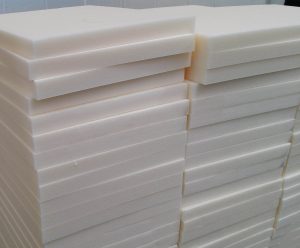

DCT XPS Block

Details

For technically demanding applications, DCT XPS Block rigid extruded polystyrene board provides long term thermal performance, helping to ensure energy efficiency in a vast range of commercial and residential applications.

Applications

  • Cold store floors
  • Cold roof
  • Cold bridge insulation
  • External render or cladding
  • Plasterboard laminate
  • Refrigerated truck panels
  • Composite building panels

Features

  • Straight edge
  • Exceptional strength and proven long term performance
  • High resistance to settlement and compaction
  • Dimensional and edge profile stability
  • Excellent moisture performance due to the closed cell structure
  • Low vapour permeability
  • High resistance to freeze thaw cycles
  • Superior thermal resistance
  • Thinner boards required than some traditional materials
Health and Safety
  • CFC and HCFC free formulation
  • Zero ozone depletion potential (ODP)
  • Non-irritant, light and easy to handle
  • Clean, easy cutting, robust and inherent weather resistant on site

Technical Data

Product Name:DCT XPS Block
Extruded polystyrene XPS rigid thermal insulation
Product Description:DCT XPS extruded polystyrene (XPS) rigid thermal insulation board for cold store floors, cold roof, cold bridge insulation, external render and/or cladding, plasterboard laminate, refrigerated truck panels and composite building panels.
Surface finish:Planned
Product code:DCT XPS Block
Colour:Sand
Edge treatment:Straight edge
Nominal Thickness:75 and 100 mm
Width:600 mm
Length:2500 mm
Density:35 kg/m³
Compressive strength:300 kPa (min) @ 10% deformation
Water absorption by immersion:<1.5% Vol.
Capillarity:Nil
Maximum service temperature:-50/+75°C
Blowing agent:CO2
Nominal Thickness to R-Value
DCT XPS Block @ 10°C
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
750.0332.3
1000.0333.0

DCT GA 300

Details

DCT GA 300 extruded polystyrene (XPS) general application board provides excellent performance in roofs, walls and floors in both commercial and residential applications. The boards are rot proof, stable, durable and will have a life equivalent to that of the structure in which they are incorporated.

DCT GA 300 offers top performance with regards to thermal insulation, maintaining this characteristic under extreme conditions of compression, humidity and temperature. The exceptional compressive strength enables it to easily resist several tons/m² downward pressure.

The closed cell structure of DCT GA 300 XPS foam makes water absorption almost non-existent and provides a high resistance to vapour transmission. The specially designed tongue and grooved edge profile facilitates rapid and robust installation.

Applications

  • Exterior walls over studs or non-insulating sheathing like OSB or plywood interior walls – concrete blocks
  • Ceilings – cathedral, vaulted or flat ceilings, finished attic
  • Exterior foundation walls
  • Interior foundation walls
  • Crawl space

Features

  • Exceptional strength and proven long term thermal performance
  • High resistance to settlement and compaction
  • Dimensional and edge profile stability
  • Excellent moisture performance (closed cell structure)
  • Very high resistance to moisture penetration
  • Low vapour permeability
  • High resistance to freeze thaw cycles

Health and Safety

  • CFC and HCFC free formulation
  • Zero ozone depletion potential (ODP)
  • Green Star Compliance
  • Non-irritant, light and easy to handle
  • Clean, easy cutting, robust and inherent weather resistant

 Technical Data

Product Name:DCT GA 300
Extruded polystyrene XPS rigid thermal insulation
Product Description:Non-porous, closed cell, high performance extruded polystyrene general application insulation board for use in floor, wall and roof applications.
Surface finish:Closed cell extruded polystyrene, surface skin
Product code:DCT GA 300
Colour:Sand
Edge treatment:Tongue and grooved
Nominal Thickness:25, 30, 40, 50, 60, 75, 80, 90, 100 and 120mm
Width:600 mm
Length:2500 mm
Density:30 kg/m³
Compressive strength:>300kPa
Thermal Conductivity AS4859.1:0.025 W/mK @ 24°C
Water vapour resistivity:350-950 MNs/gm
Water absorption:≤0.7% vol
Fire Classification AS1530.37,0,2,5
Nominal Thickness to R-Value
DCT GA 300 @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
250.0251.0
300.0251.1
400.0251.4
500.0251.8
600.0252.1
750.0252.7
800.0252.9
900.0253.2
1000.0253.6
1200.0254.3

DCT GA 250 CO2

Details

DCT GA 250 CO2 extruded polystyrene (XPS) general application board provides excellent performance in roof, wall and floor in both commercial and residential applications.

The DCT GA 250 CO2 XPS boards are rot proof, stable and durable and will have a life equivalent to that of the structure in which they are incorporated.

DCT GA 250 CO2 offers top performance with regards to thermal insulation, maintaining this characteristic under extreme conditions of compression, humidity and temperature. The exceptional compressive strength enables it to easily resist several tons/m² downward pressure.

Exceptional Strength

Proven long term performance
High resistance to settlement and compaction
Dimensional and edge profile stability

Excellent moisture performance
(closed cell structure)

Very high resistance to moisture penetration
Low vapour permeability
High resistance to freeze thaw cycles
Durability provides long term retention of these properties

Superior thermal resistance

Low thermal conductivity
Thinner boards required compared to some traditional materials

Health and Safety

CFC, HFC and HCFC free formulation
Zero ozone depletion potential (ODP)
Green Star Compliance
Non-irritant, light and easy to handle
Clean, easy cutting, robust and inherent weather
resistant
Specially designed tongue and grooved edge
profiles to facilitate rapid and robust installation
Manufactured in accordance with
EN 13164 : 2001, Section 4.2 and the
relevant parts of Section 4.3

Installation details
Application specific. Contact DCTech for details

Condensation Statement

There are a large number of factors that need to be considered in assessing and managing condensation risk. Such factors include the local climate, building use, position, thickness and type of insulation, position and integrity of vapour barriers, and the degree and location of mechanical or passive ventilation. It is highly recommended that designers undertake a condensation risk analysis.

Specification Clause

DCT GA 250 extruded polystyrene general application board should be described in the specification as:-
The insulation shall be DCT GA 250 CO2______mm non-porous cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 250 kPa. Zero ODP, CFC, HFC and HCFC free. DCT GA 250 CO2 extruded polystyrene general application board is distributed by Dynamic Composite Technologies –

T: 1800 051 100.

Technical Data

Product Name:DCT GA 250 CO2
Extruded polystyrene XPS rigid thermal insulation
Product Description:Non-porous, closed cell, high performance extruded polystyrene general application insulation board for use in floor, wall and roof applications.
Composition and Surface finish:Closed cell extruded polystyrene, surface skin
Product Code:DCT GA 250 CO2
Colour:Gold
Edge Profile:Tongue and grooved on all edges
Width:600mm
Length:2500mm
Thicknesses available:25, 30, 35, 40, 50, 60, 75, 80, 90, 100 and 120mm
Compressive Strength:>250kPa
Thermal Conductivity – EN126670.033 W/mk @ 10 º C
Water vapour resistivity:350-950 MNs/gm
Water absorption:0.07 mm/mk
Fire Classification EN 13501>AS 1530.3E
Nominal Thickness to R-Value
DCT GA 250 CO2 @ 10°C
Nominal Thickness
mm
R Value
300.9
401.2
501.5
601.8
752.3
802.4
902.7
1003.0
1203.6
Delivery, handling and storage
DCT GA 250 CO2 insulation boards are delivered shrinkwrapped. DCT GA 250 CO2 is light, rigid and clean and pleasant to handle and install. It is easily cut to size or trimmed using a knife or saw.DCT GA 250 CO2 should be stored flat in a ventilated area and protected from accidental damage, contact with volatile solvents, flames and extended exposure to UV and sunlight.

DCT GA 400

Details

DCT GA 400 extruded polystyrene (XPS) general application board provides excellent performance in roofs, walls and floors in both commercial and residential applications. The boards are rot proof, stable, durable and will have a life equivalent to that of the structure in which they are incorporated.

DCT GA 400 offers top performance with regards to thermal insulation, maintaining this characteristic under extreme conditions of compression, humidity and temperature. The exceptional compressive strength enables it to easily resist several tons/m² downward pressure.

The closed cell structure of DCT GA 400 XPS foam makes water absorption almost non-existent and provides a high resistance to vapour transmission. The specially designed tongue and grooved edge profile facilitates rapid and robust installation.

Applications

  • Exterior walls over studs or non-insulating sheathing like OSB or plywood interior walls – concrete blocks
  • Ceilings – cathedral, vaulted or flat ceilings, finished attic
  • Exterior foundation walls
  • Interior foundation walls
  • Crawl space

Features

  • Exceptional strength and proven long term thermal performance
  • High resistance to settlement and compaction
  • Dimensional and edge profile stability
  • Excellent moisture performance (closed cell structure)
  • Very high resistance to moisture penetration
  • Low vapour permeability
  • High resistance to freeze thaw cycles

Health and Safety

  • CFC and HCFC free formulation
  • Zero ozone depletion potential (ODP)
  • Green Star Compliance
  • Non-irritant, light and easy to handle
  • Clean, easy cutting, robust and inherent weather resistant

 Technical Data

Product Name:DCT GA 400
Extruded polystyrene XPS rigid thermal insulation
Product Description:Non-porous, closed cell, high performance extruded polystyrene general application insulation board for use in floor, wall and roof applications.
Surface finish:Closed cell extruded polystyrene, surface skin
Product code:DCT GA 400
Colour:Sand
Edge treatment:Tongue and grooved
Nominal Thickness:25, 30, 40, 50, 75, 100 and 120mm
Width:600 mm
Length:2500 mm
Density:30 kg/m³
Compressive strength:>400kPa
Thermal Conductivity AS4859.10.028 W/mK @ 24°C
Water vapour resistivity:350-950 MNs/gm
Water absorption:≤0.7% vol
Fire Classification AS1530.3
Nominal Thickness to R-Value
DCT GA 400 @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
300.0281.1
400.0281.4
500.0281.8
750.0282.7
1000.0283.6
1200.0284.3

DCT GA 500 CO2

Details

DCT GA 500 CO2 extruded polystyrene (XPS) general application board provides excellent performance in roof, wall and floor in both commercial and residential applications.

The DCT GA 500 CO2 XPS boards are rot proof, stable and durable and will have a life equivalent to that of the structure in which they are incorporated.

DCT GA 500 CO2 offers top performance with regards to thermal insulation, maintaining this characteristic under extreme conditions of compression, humidity and temperature. The exceptional compressive strength enables it to easily resist several tons/m² downward pressure.

Exceptional Strength

Proven long term performance
High resistance to settlement and compaction
Dimensional and edge profile stability

Excellent moisture performance
(closed cell structure)

Very high resistance to moisture penetration
Low vapour permeability
High resistance to freeze thaw cycles
Durability provides long term retention of these properties

Superior thermal resistance

Low thermal conductivity
Thinner boards required compared to some traditional materials

Health and Safety

CFC, HFC and HCFC free formulation
Zero ozone depletion potential (ODP)
Green Star Compliance
Non-irritant, light and easy to handle
Clean, easy cutting, robust and inherent weather
resistant
Specially designed tongue and grooved edge
profiles to facilitate rapid and robust installation
Manufactured in accordance with
EN 13164 : 2001, Section 4.2 and the
relevant parts of Section 4.3

Installation details
Application specific. Contact DCTech for details

Condensation Statement

There are a large number of factors that need to be considered in assessing and managing condensation risk. Such factors include the local climate, building use, position, thickness and type of insulation, position and integrity of vapour barriers, and the degree and location of mechanical or passive ventilation. It is highly recommended that designers undertake a condensation risk analysis.

Specification Clause

DCT GA 500 extruded polystyrene general application board should be described in the specification as:-
The insulation shall be DCT GA 500 CO2______mm non-porous cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 500 kPa. Zero ODP, CFC, HFC and HCFC free. DCT GA 500 CO2 extruded polystyrene general application board is distributed by Dynamic Composite Technologies –

T: 1800 051 100.

Technical Data

Product Name:DCT GA 500 CO2
Extruded polystyrene XPS rigid thermal insulation
Product Description:Non-porous, closed cell, high performance extruded polystyrene general application insulation board for use in floor, wall and roof applications.
Composition and Surface finish:Closed cell extruded polystyrene, surface skin
Product Code:DCT GA 500 CO2
Colour:Gold
Edge Profile:Tongue and grooved on all edges
Width:600mm
Length:2500mm
Thicknesses available:25, 30, 35, 40, 50, 60, 75, 80, 90, 100 and 120mm
Compressive Strength:>500kPa
Thermal Conductivity – EN126670.034 W/mk @ 10 º C
Water vapour resistivity: 350-950 MNs/gm
Water absorption:0.07 mm/mk
Fire Classification EN 13501E
Nominal Thickness to R-Value
DCT GA 500 CO2 @ 10°C
Nominal Thickness
mm
R Value
300.8
401.1
501.4
601.7
752.1
802.2
902.5
1002.8
1203.3
Delivery, handling and storage
DCT GA 500 CO2 insulation boards are delivered shrinkwrapped. DCT GA 500 CO2 is light, rigid and clean and pleasant to handle and install. It is easily cut to size or trimmed using a knife or saw.DCT GA 500 CO2 should be stored flat in a ventilated area and protected from accidental damage, contact with volatile solvents, flames and extended exposure to UV and sunlight.

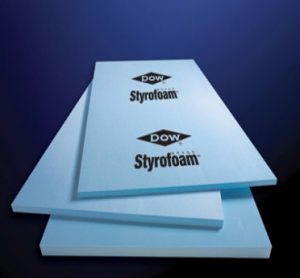

Styrofoam HD-X

Details

In cold stores the proper design of the floor system is critical to avoid the bending and cracking problems which can occur in inadequately designed low temperature floor systems. Floor designs must be able to withstand the high floor loadings present in low temperature facilities.

The typical low temperature floor design has not changed for many years. The insulation is laid in multiple layers on a vapour retarder either over a sub-slab or directly over the soil. Reinforcement and slip sheets are positioned where necessary and the concrete for the wearing slab is poured directly onto the insulation.

After the wearing slab has cured, it must be able to support the live and dead loads imposed by any moving equipment, storage racks and stored materials. As design loads increase, the insulation plays a more important role in providing support for the wearing slab.

Thanks to an extremely high compressive strength-to-weight ratio, exceptional moisture resistance, low thermal conductivity and long-term performance of Styrofoam™ HD-X extruded polystyrene (XPS) rigid thermal insulation distributed by DCTech, makes it the ideal solution for cold storefloor applications.

When used in cold storefloor panels, Styrofoam™ HD-X XPS insulation will support heavy cargo loads and the dynamic loads of fork lift trucks. When used in walls it absorbs high dynamic loads, such as those caused by wind and vibration. When used in roof panels Styrofoam™ HD-X XPS insulation will support high tensile loads from suspended items.

The homogeneous closed-cell structure ensures that Styrofoam™ HD-X XPS rigid insulation retains its performance even when in permanent contact with moisture. This exceptionally stable material will retain its initial insulation performance and physical integrity in exposed conditions over the very long term. It is this unusual property that made possible the inverted warm roof concept, pioneered by Dow.

Specification Clause
General Application Board

Specify Dow Styrofoam™
‘X’ Foam for Greenstar projects

Dow Styrofoam™ HD-X extruded polystyrene general application board should be described in specifications as:-

The insulation shall be Dow Styrofoam™ HD-X __mm closed cell rigid cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 700 kPa. Dow Styrofoam™ HD-X is distributed by Dynamic Composite Technologies –
T: 1800 051 100.

Applications

  •  Cold store floors

Features

  • High compressive strength-to-weight ratio
  • Low thermal conductivity
  • Low susceptibility to rot, mould or fungal growth

Standards

  • Green Star Compliant
  • CFC and HCFC Free
  • Zero ODP

Specification Clause
General Application Board

Specify Dow Styrofoam™
‘X’ Foam for Greenstar projects

Dow Styrofoam™ HD-X extruded polystyrene general application board should be described in specifications as:-

The insulation shall be Dow Styrofoam™ HD-X __mm closed cell rigid cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 700 kPa. Dow Styrofoam™ HD-X is distributed by Dynamic Composite Technologies –
T: 1800 051 100.

Technical Data
Product Name:Dow Styrofoam™ HD-X
Extruded polystyrene XPS rigid thermal insulation
Product Description:Dow Styrofoam™ HD-X XPS is a heavy load-bearing rigid thermal insulation board which will support heavy cargo loads and fork lift trucks in cold store floors and in roof panels to support high tensile loads.
Surface finish:Planned with grooves on one face
Product code:HD-X
Colour:Blue
Edge treatment:Shiplap
Nominal Thickness:100 mm
Width:600 mm
Length:2500 mm
Density:45 kg/m³
Compressive strength:700 kPa
Water absorption by immersion:0,2% by Vol.
Blowing agent:CFC and HCFC Free
Environmental characteristics:Green Star compliant and Zero ODP
Nominal Thickness to R-Value
Dow Styrofoam™ HD-X XPS @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal ConductivityR Value
250.02780.9
300.02781.1
400.02781.4
500.02781.8
600.02782.2
750.02782.7
800.02782.9
900.02783.2
1000.02783.6

Styrofoam LB

Details

The exceptional robustness of Dow Styrofoam™ LB™ extruded polystyrene (XPS) rigid insulation and long-term thermal performance helps to ensure energy efficiency in a wide range of residential and commercial construction applications.

With long term proven performance and creep data, Styrofoam™ LB™ XPS insulation is an ideal engineered product that designers may confidently specify in today’s increasingly highly insulated designs. For sandwich panel cores, the lightweight, close tolerance, dust-free surface of Styrofoam™ LB™ XPS allows for excellent bonding to a wide variety of sheet materials.

Dow Styrofoam™ LB™ XPS rigid thermal insulation has been specifically designed to withstand severe dynamic loads and stresses which may eventually lead to fatigue and failure. It is specially designed to resist such force and in tests has been shown to perform extremely well under dynamic load cycling.

Styrofoam™ LB™ XPS insulation is produced in a range of thicknesses and is smooth on both facers. By placing the insulation outside the building mass it protects both membrane and slab from thermal cycling and loading.Styrofoam™ LB™ XPS insulation is manufactured through a continuous extrusion process, and as with all Dow Styrofoam™ products possess a rigid closed cell structure with unique properties such as low thermal conductivity, high resistance to water penetration and high compressive strength.

The Dow Styrofoam™ LB™ XPS rigid insulation range will help curb escalating energy bills, reduce a building’s carbon footprint and provide a more comfortable indoor environment.

Applications

  • Cold store floors
  • Cold roof
  • Cold bridge insulation
  • External render and/or cladding
  • Plasterboard laminate
  • Refrigerated truck panels
  • Composite building panels

Features

  • High compressive strength-to-weight ratio
  • Low susceptibility to rot, mould or fungal growth
  • Clean, odourless and free from irritating dust

Specification Clause
General Application Board

Dow Styrofoam™ LB™ extruded polystyrene general application board should be described in specifications as:-

The insulation shall be Dow Styrofoam™ LB™ __mm closed cell rigid cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 300 kPa. Dow Styrofoam™ LB™ is distributed by Dynamic Composite Technologies – T: 1800 051 100.

 Technical Data

Product Name:Dow Styrofoam™ RTM-X
Extruded polystyrene XPS rigid thermal insulation
Product Description:Dow Styrofoam™ LB extruded polystyrene (XPS) rigid thermal insulation board for cold store floors, cold roof, cold bridge insulation, external render and/or cladding, plasterboard laminate, refrigerated truck panels and composite building panels.
Surface finish:Planned
Product code:LB
Colour:Blue
Edge treatment:Butt edge
Nominal Thickness:75 and 1000 mm
Width:600 mm
Length:2500 mm
Density:30 kg/m³
Compressive strength:300 kPa (min) @ 10% deformation
Water absorption by immersion:0.5% – vol. (28 days, full board)
Temperature Limited:-50/+75°C
Nominal Thickness to R-Value
Dow Styrofoam™ LB XPS @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
750.02782.7
1000.02783.6

Styrofoam SMTG

Details

Styrofoam™ SMTG XPS rigid board distributed by DCTech is designed to be used as thermal insulation in walls, floors, and roofing applications. Styrofoam insulation is an extruded polystyrene (XPS) blue board with a closed cell structure which means it won’t absorb moisture.

The Styrofoam™ SMTG boards are designed with a tongue and grooved edge to ensure the boards lock together to prevent moisture passing through the joints where the tongue edge is up and the groove edge is facing down.

Styrofoam™ SMTG XPS insulation offers excellent long term R-values that per unit thickness are superior to most alternative common insulation products.

Features

  • Tongue and grooved edge
  • High strength-to-weight ratio
  • Long term retained R-Value
  • Very low water absorption
  • Low susceptibility to rot, mould or fungal growth
  • Clean, odourless and free from irritating dust

Applications

  • Wall and ceiling insulation for agricultural buildings
  • Exterior walls over studs or non-insulating sheathing like OSB or plywood interior walls – concrete blocks
  • Ceilings – cathedral, vaulted or flat ceilings,
    finished attic
  • Exterior foundation walls
  • Interior foundation walls
  • Crawl space

Specification Clause
General Application Board

Dow Styrofoam™ SMTG extruded polystyrene general application board should be described in specifications as:-

The insulation shall be Dow Styrofoam™ SMTG __mm closed cell rigid cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 250 kPa. Dow Styrofoam™ SMTG is distributed by Dynamic Composite Technologies – T: 1800 051 100.

Technical Data

Product Name:Dow Styrofoam™ SMTG
Extruded polystyrene XPS rigid thermal insulation
Product Description:Dow Styrofoam™ SMTG insulation is a closed cell rigid cellular extruded polystyrene foam panel for exterior and interior walls, ceilings and crawl spaces.
Surface finish:Smooth self-skin
Product code:SMTG
Colour:Blue
Edge treatment:Tongue and grooved
Nominal Thickness:25, 30, 40, 50, 75, 100 mm
Width:600 mm
Length:2500 mm
Density:32 kg/m³
Compressive strength:250 kPa (min) @ 10% deformation
Water absorption by immersion:<0.5% Vol. (28 days)
Capillarity:Nil
Maximum service temperature:-50/+75°C
Blowing agent:HCFC
Nominal Thickness to R-Value
Dow Styrofoam™ SMTG XPS @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
250.02780.9
300.02781.1
400.02781.4
500.02781.8
600.02782.2
750.02782.7
800.02782.9
900.02783.2
1000.02783.6
1200.02784.3
1500.02785.4
2000.02787.2

Styrofoam RTM-X

Details

Styrofoam™ RTM-X extruded polystyrene (XPS) thermal insulation distributed by DCTech, is recommended as a core material in sandwich panels for the walls, floors, roofs and doors in refrigerated trucks and containers.

With long term proven performance and creep data, Styrofoam™ RTM-X XPS thermal insulation is an ideal engineered product that designers may confidently specify in today’s increasingly highly loaded floor designs. For sandwich panel cores, the lightweight, close tolerance, dust-free surface allows for excellent bonding to a wide variety of sheet materials.

Styrofoam™ RTM-X XPS rigid insulation has been specifically designed to withstand severe dynamic loads and stresses which may eventually lead to fatigue and failure. It is specially designed to resist such force and in tests has been shown to perform extremely well under dynamic load cycling.

Styrofoam™ RTM-X XPS insulation is manufactured through a continuous extrusion process, and as with all Styrofoam insulation products possess a rigid closed cell structure with unique properties such as low thermal conductivity, high resistance to water penetration and high compressive strength.

Styrofoam™ RTM-X XPS thermal insulation is produced in a range of thicknesses and is grooved on both facers. Styrofoam™ XPS insulation products are not biodegradable in the environment, and do not present an environmental hazard in the water/soil compartment. When correctly installed, Styrofoam™ XPS insulation products have a service life comparable with the remainder of the building or structure. Styrofoam™ XPS boards can be reused, even after having been installed for decades.

Applications

  • Core material in sandwich panels for the walls, floors, roofs and doors in refrigerated trucks and containers
  • High load-bearing floors such as cold stores, warehouses and parking areas
  • Under or over ground bearing concrete slabs
  • Suspended beam and block or timber floors

Features

  • Low thermal conductivity
  • High compressive strength-to-weight ratio
  • High resistance to water penetration
  • Grooved surface allows for excellent bonding to a variety of sheet materials

Standards

  • Green Star Compliant
  • CFC & HCFC Free
  • Zero ODP

Specification Clause
General Application Board

Specify Dow Styrofoam™ ‘X’ Foam for Greenstar projects

Dow Styrofoam™ RTM-X extruded polystyrene general application board should be described in specifications as:-

The insulation shall be Dow Styrofoam™ RTM-X __mm closed cell rigid cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 400 kPa. Dow Styrofoam™ RTM-X is distributed by Dynamic Composite Technologies – T: 1800 051 100.

Technical Data

Product Name:Dow Styrofoam™ RTM-X
Extruded polystyrene XPS rigid thermal insulation
Product Description:Dow Styrofoam™ RTM-X XPS thermal insulation has been specifically designed to withstand severe dynamic loads and stresses which may eventually lead to fatigue and failure. Dow Styrofoam™ RTM-X is perfect for installation under or over the slab in ground bearing concrete floors and is suitable for use on suspended beam and block or timber floors. For sandwich panel cores, the lightweight, close tolerance, dust-free surface allows for excellent bonding to a wide variety of sheet materials.
Surface finish:Planed with grooves on both faces at 3.5mm (d) x 1.8mm (w) @ 39mm intervals
Product code:RTM-X
Colour:Blue
Edge treatment:Butt edge
Nominal Thickness:25, 35, 50, 75, 100, 120 mm
Width:600 mm
Length:2500 mm
Density:40 kg/m³
Compressive strength:400 kPa (min) @ 10% deformation
Water absorption:0.5%
Blowing agent:HFC
Environmental characteristics:Green Star Compliant, Zero ODP, CFC/HCFC Free
Nominal Thickness to R-Value
Dow Styrofoam™ RTM-X XPS @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
250.02780.9
300.02781.1
400.02781.4
500.02781.8
600.02782.2
750.02782.7
800.02782.9
900.02783.2
1000.02783.6
1200.02784.3
1500.02785.4
2000.02787.2

Styrofoam-Floormate-x

Details

Dow Styrofoam Floormate-X extruded polystyrene (XPS) thermal insulation is an ideal heavy load-bearing material suitable for most floor types, from industrial applications through to residential builds.

Dow Floormate-X (XPS) rigid thermal insulation can be installed under or over the slab in ground bearing concrete floors and is suitable for use on suspended beam and block or timber floors.

Applications

  • under concrete slab, slab on ground
  • hydronic floor heating
  • geo-engineering backfill to protect civil engineering projects from freezing

Features

  • high compressive strength
  • high thermal resistance
  • resistance to ground moisture and most ground contaminants
  • dimensionally stable
  • will not attract vermin or insects

Standards

  • Green Star compliant
  • Zero ODP
  • CO2 Blown
  • Low VOC’s
  • EU Reg EC\3093\94

Specification Clause
General Application Board

Specify Dow Styrofoam™ ‘X’ Foam for Greenstar projects

Dow Styrofoam™ Floormate-X extruded polystyrene general application board should be described in specifications as:-

The insulation shall be Dow Styrofoam™ Floormate-X __mm closed cell rigid cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 300 kPa. Dow Styrofoam™ Floormate-X is distributed by Proctor Group Australia – T: 1800 174 900.

Technical Data

Product Name:Dow Styrofoam Floormate-X
Extruded polystyrene XPS rigid thermal insulation
Product Description:Dow Styrofoam Floormate-X XPS thermal insulation has been developed for use where attributes such as compressive strength, resistance to ground moisture and high thermal resistance are important considerations. Widely used in very low temperature climates as a thermally insulating backfill to protect civil engineering projects from freezing. For use as the thermal insulation layer in all floor types from housing to industrial buildings and cold stores.
Surface finish:Skin
Product code:Floormate-X
Colour:Blue
Edge treatment:Shiplap
Nominal Thickness:25mm – 200mm
Width:600 mm
Length:1250 mm
Density:45 kg/m³
Compressive strength:700 kPa (minimum) at 10% deformation
Water absorption:< 0.3%
Blowing agent:C02
Environmental characteristics:Green Star compliant, Zero ODP, Low VOC
Nominal Thickness to R-Value
Dow Styrofoam Floormate-X XPS @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
250.02780.90
300.02781.08
400.02781.44
500.02781.80
600.02782.16
750.02782.70
800.02782.88
900.02783.24
1000.02783.60
1200.02784.32
1500.02785.40
2000.02787.19

Styrofoam Roofmate SL-X

Details

Styrofoam™ Roofmate SL-X extruded polystyrene (XPS) thermal insulation distributed by DCTech, is designed for installation above waterproofing membranes in protected membrane roof (PMR) applications. Styrofoam™ Roofmate SL-X XPS rigid insulation boards are unaffected by the conditions encountered on flat roofs including wide fluctuation in operating temperature or repeated freeze/thaw cycles.

Styrofoam™ Roofmate SL-X XPS thermal insulation offers a long term retained R-value, high compressive strength and superior moisture resistance, making Styrofoam™ Roofmate SL-X XPS the perfect solution wherever superior load bearing and high insulating capabilities are specified.

Applications

  • IRMA (upside down roof)
  • Heavyweight decks with a ballast layer of gravel or concrete slabs
  • Timber decking and paving
  • Roof gardens

Features

  • High compressive strength
  • Long term retained R-Values
  • Does not support mould growth, will not crumble or decay

Standards

  • Green Star Compliant
  • Zero ODP
  • Low VOC’s
    EU Reg EC\3093\94

Specification Clause
General Application Board

Specify Dow Styrofoam™ ‘X’ Foam for Greenstar projects

Dow Styrofoam™ Roofmate-X extruded polystyrene general application board should be described in specifications as:-

The insulation shall be Dow Styrofoam™ Roofmate-X __mm closed cell rigid cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 300 kPa. Dow Styrofoam™ Roofmate-X is distributed by Dynamic Composite Technologies – T: 1800 051 100.

Technical Data

Product Name:Dow Styrofoam™ Roofmate SL-X
Extruded polystyrene XPS rigid thermal insulation
Product Description:Dow Styrofoam™ Roofmate SL-X extruded polystyrene thermal insulation is specifically designed for insulated roof membrane assembly (IRMA) applications. Roofmate SL-X XPS long term retained R-value combined with high compressive strength and superior water resistant properties make it ideal for flat concrete and metal deck roofing applications.
Surface finish:Planned
Product code:Roofmate SL-X
Colour:Blue
Edge treatment:Ship-Lap
Nominal Thickness:30 – 200 mm
Width:600 mm
Length:2500 mm
Density:32 kg/m³
Compressive strength:300 kPa (min @ 10% deformation)
Water absorption:< 0.3%
Blowing agent:HFC
Environmental characteristics:Green Star Compliant, Zero ODP,
CFC/HCFC free, Low VOC
Nominal Thickness to R-Value
Dow Styrofoam™ Roofmate SL-X @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal ConductivityR Value
250.02780.9
300.02781.1
400.02781.4
500.02781.8
600.02782.2
750.02782.7
800.02782.9
900.02783.2
1000.02783.6
1200.02784.3
1500.02785.4
2000.02787.2

DCT XPS Thermal Break Strips

Details

DCT XPS Thermal Break Strips distributed by DCTech are made from a high compressive strength 300 kPa Styrofoam™ extruded polystyrene (XPS) rigid thermal insulation board. DCT XPS Thermal Break Strips are designed specifically to reduce the thermal loss on metal deck roof applications.

Depending upon the construction method, in some metal deck roof construction, the insulation blanket can be compressed which can reduce the thermal performance of the roof system. The use of DCT XPS Thermal Break Strips on top of each purlin above the insulation blanket will ensure that sufficient room is allowed for the insulation blanket to recover to its nominal thickness and that stated R-Values are achieved.

The Styrofoam™ rigid thermal insulation strips are a closed cell structure meaning that they won’t absorb moisture thus retaining their high thermal performance.

Testing has been conducted by the majority of the manufacturers of roofing systems throughout Australia and the addition of DCT XPS Thermal Break Strips will not affect the warranties of these manufacturers.

DCT XPS Thermal Break Strips are specifically designed with a high compressive strength and do not absorb moisture which tests have shown to be vital for this application.

Applications

  • Metal deck roofing applications

Features

  • High compressive strength
  • Long term retained R-Values
  • Superior water resistant properties
  • Dimensionally stable
  • Will not attract vermin or insects

Specification Clause
General Application Board

DCT XPS Thermal Break Strips extruded polystyrene general application board should be described in specifications as:-

The insulation shall be DCT XPS Thermal Break Strips __mm closed cell rigid cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 300 kPa.   DCT XPS Thermal Break Strips are distributed by Dynamic Composite Technologies –

T: 1800 051 100.

Technical Data

Product Name:DCT XPS Thermal Break Strips
Extruded polystyrene XPS rigid thermal insulation
Product Description:DCT XPS Thermal Break Strips are designed specifically to reduce the thermal loss on metal deck roof applications. Depending on construction method, in some metal deck roofs the insulation blanket can be compressed, which can reduce the thermal performance of the roof system. The use of the DCT XPS Thermal Break Strips on top of each purlin above the insulation blanket will ensure that sufficient room is allowed for the insulation blanket to recover its nominal thickness and that stated R values are achieved.
Surface finish:Planned
Product code:DCT XPS Thermal Break Strips
Colour:Cream – Light yellow
Edge treatment:Nominal Dimensions:Density:Square edge1250mm Options
Compressive strength:25mm x 75mm x 1250mm
40mm x 75mm x 1250mm
50mm x 75mm x 1250mm
75mm x 75mm x 1250mm
100mm x 75mm x 1250mm
Water absorption:2500mm Options
6mm x 38mm x 2500mm
25mm x 75mm x 2500mm
40mm x 75mm x 2500mm
50mm x 75mm x 2500mm
75mm x 75mm x 2500mm
100mm x 75mm x 2500mm32 kg/m²
300 kPa (min) @ 10% deformation
< 0.3%
Nominal Thickness to R-Value
DCT XPS Thermal Break Strips @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal ConductivityR Value
250.02780.9
300.02781.1
400.02781.4
500.02781.8
600.02782.2
750.02782.7
800.02782.9
900.02783.2
1000.02783.6
1200.02784.3
1500.02785.4
2000.02787.2

Insulated Concrete Sandwich Panels

Details

Concrete is a strong and highly durable material and a good choice in both commercial and multistory residential applications. However, concrete panel walls can absorb moisture from rain and vapour drive. Condensation buildup can reduce the effectiveness of the insulation and may cause other problems, including mould and mildew.

Insulated concrete sandwich panels combine the strength and durability of concrete with the unmatched insulating capabilities of Styrofoam™ extruded polystyrene. Styrofoam’s closed cell, moisture resistant structure provides dependable and predictable performance, even under the harsh conditions of freeze-thaw cycling. Styrofoam™ has no facings that are susceptible to corrosion, delamination or chemical reaction with the concrete.

Assembly

To form concrete sandwich panels, concrete is poured on both sides of the Styrofoam™ and the composite is held together structurally with connectors that can be pushed through the foam. Concrete panels provide thermal mass, which can store considerable amounts of thermal energy.

Buildings that incorporate Styrofoam™ insulated concrete sandwich panels will perform more efficiently over time because of the Styrofoam’s superior long-term thermal performance and unparalleled moisture control qualities.

The rigid Styrofoam™ insulation isolates the thermal mass provided by the concrete panels, minimising building interior temperature fluctuations under outside temperature swings.

Applications

  • Insulated precast, prestressed or tilt-up construction in both commercial and multistory residential buildings

Features

  • Styrofoam insulation stands up to the moisture present during the construction of the concrete panel wall

Styrofoam Standards

  • Green Star Compliant
  • CFC & HCFC Free
  • Zero ODP

Technical Data

Product Name:Insulation concrete sandwich panels
Insulation Description:Extruded polystyrene XPS rigid thermal insulation
Styrofoam™ core panel:DCT GA300RTM-X
Colour:Light creamBlue
Edge treatment:Tongue and groovedSquare edge
Nominal Thickness (mm):25, 30, 40, 50, 75, 100, 12025, 35, 40, 45, 50, 75, 100, 120
Width:600mm600mm2500mm
Length:2500mm40kg/m³
Density:30kg/m³400kPa (min)0.5%
Compressive strength @ 10% deformation:300kPa (min)0.5%
Water absorption:
Environmental characteristics:Green Star Compliant Zero ODP CFC/HCFC FreeGreen Star Compliant Zero ODP CFC/HCFC Free
Nominal Thickness to R- Value
25mm1.00.9
30mm1.2
35mm1.3
40mm1.61.4
50mm2.01.8
75mm3.02.7
100mm4.03.6
120mm4.84.3
Lambda / K Value / Thermal Conductivity:0.0250.028

Medical Foam

Styrofoam Medical & Science Foam

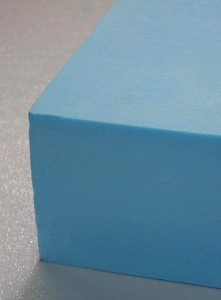

Styrofoam™ extruded polystyrene (XPS) boards distributed by DCTech are lightweight with a high compressive strength rating. The unique closed cell structure/cell shape of Styrofoam™ XPS results in no voids between cells, the result of an exclusive extrusion process that assures uniform, predictable, stable physical properties.

The closed cell structure of Styrofoam™ XPS enables it to resits all forms of water and moisture penetration. Styrofoam™ XPS is a thermoplastic and retreats from fire. It is chemically and physiologically inert, it creates no dust and will not support mould or mildew and is non allergenic. Styrofoam™ XPS is not a known food source to vermin or insects.

Cutting and Shaping
Due to the homogeneous cell structure and uniform density of Styrofoam™ XPS it can be cut accurately and to very close tolerances. Dow Styrofoam™ extruded polystyrene is easy to cut and shape with a range of tools including a hotwire cutter, serrated knife, hacksaw or X-Acto knife.



Styrofoam XPS GradeCompressive
Strength
kPa
Width
mm
Length
mm
Nominal
Thickness
mm
  DCTXPS BLOCK  30030030015
  DCTXPS BLOCK  30030030020
  DCTXPS BLOCK  30030030025
  DCTXPS BLOCK  30030030030
  DCTXPS BLOCK  30030030040
   DCTXPS BLOCK  300300300100
  DCTXPS BLOCK  30030030075
   Minimum order requirements apply.
Tolerances +/- 2mm
DCTech can cut Styrofoam to length, width and thickness required.
DCTech do not cut boards into shapes.

Technical Data

Product Name:Styrofoam LB Extruded Polystyrene
Surface finish:Planned
Product code:DCT XPS BLOCK
Colour:Light cream – yellow
Edge treatment:Square edge
Nominal Thickness:75 and 100 mm
Width:600 mm
Length:2500 mm
Density:30 kg/m²
Compressive strength:300 kPa @ 10% deflection
Compressive Modulus:12-20,000 kN/m²
Tensile Strength:500 kN/m²
Tensile Modulus:12-20,000 kN/m²
Shear Strength:250 kN/m²
Shear Modulus:8,000 kN/m²
Capillarity:Nil
Water absorption by immersion:0.5% – vol. (28 days, full board)
Temperature Limited:-50/+75°C

Modelling Foam

Modelling foam

DCTech has a range of extruded polystyrene (XPS) foam which has been used with great success as a modelling foam for many years. Strong, lightweight and versatile – extruded polystyrene foam has been used for everything from competition grade surfboards to remote control vehicles, outdoor water features to model railway dioramas, architectural models and even triathlon racing bike frames.

Our range of XPS boards are lightweight with a high compressive strength rating. The unique closed-cell structure/cell shape of our XPS foam results in no voids between cells, the result of an exclusive extrusion process that assures uniform, predictable, stable physical properties.

Our range of XPS foam is a thermoplastic and retreats from fire. It also contains a flame retardant additive to inhibit accidental ignition from small fire sources eg., over-heated wires or welding sparks. The cell structure of our XPS foam enables it to resist all forms of water and moisture penetration.

Our XPS foam is chemically and physiologically inert, it creates no dust and will not support mould or mildew and is non-allergenic and is not a known food source to vermin or insects.

Cutting and Shaping
Due to the homogeneous cell structure and uniform density of our XPS foam, it can be cut accurately and to very close tolerances. It is easy to cut and shape with a range of tools including a hotwire cutter, serrated knife, hacksaw, floral knife or X-Acto knife. To cut a thick piece, or several sheets stacked together, try using an old electric knife. DCT can cut your board to your required thickness and/or length from $10 per board. Note that DCTech cannot cut your board into shapes.

Adhesives
For a fast, sure bond, use a low-temperature glue gun (using a non-solvent base such as an epoxy resin and/or polyurethane adhesive) which can be purchased from your local hardware store.

Painting
Extruded polystyrene can be painted with an acrylic craft and/or water based paint. Avoid using solvent based paints as these may damage the foam. Some spray paints are safe to use – read the label carefully to determine whether or not it is foam approved.

With thanks from Simon Thomsen Motor Racing

Address
Unit 8, 171-175 Newton Road,
Wetherill Park  NSW  2164  Australia
T  02 8788 9555
F  02 9604 7468
E  sales@dctech.com.au

Hours
Monday – Friday 8.00am to 4.00pm
Closed Saturday, Sunday and Public Holidays

Terms of payment
Cash, Visa* and Mastercard*
Visa and Mastercard will incur a 2.5% surcharge

Delivery

Delivery quotes available on request

Pickup

Product GuideDescription


DCT XPS White Block

(Currently out of stock)

Colour:
Surface Finish:
Edge treatment:
Nominal thickness:
Width:
Length:
Compressive strength:
Pure White
Planned
Square edge
100mm
1030mm
3060mm
300kPa

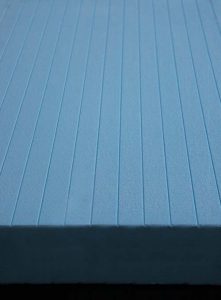

Dow Styrofoam RTM-XColour:
Surface Finish:
Edge treatment:
Nominal thickness:
Width:
Length:
Compressive strength:
Blue
Grooved on both facers
Square edge
25, 35, 50, 75, 100, 120mm
600mm
2500mm
400kPa

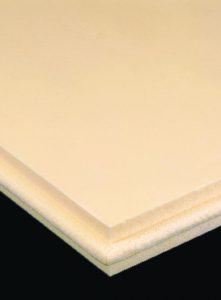

DCT GA300Colour:
Surface Finish:
Edge treatment:
Nominal thickness:
Width:
Length:
Compressive strength:
Yellow/Cream
Smooth self-skin
Tongue and grooved
25, 30, 40, 50, 75, 100mm
600mm
2500mm
300kPa

DCT Block Styrofoam Colour:
Surface Finish:
Edge treatment:
Nominal thickness:
Width:
Length:
Compressive strength:
Light Yellow
Planned
Square edge
75 and 100mm
600mm
2500mm
300kPa

DCTech also sell a range of off-cuts. Standard board sizes 2500mm (L) x 600mm (W) with various thicknesses ranging from 10mm up to 25mm.  Pick-up available or please phone us for a quote on delivery. Cutting is not included.

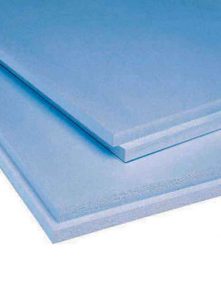

Styrofoam SP-X

Details

DOW SP-XTM extruded polystyrene (XPS) general application board provides excellent performance in roofs, walls and floors in commercial applications.

The DOW SP-XTM XPS boards are rot proof, stable and durable and will have a life equivalent to that of the structure in which they are incorporated.

DOW SP-XTM offers top performance with regards to thermal insulation, maintaining this characteristic under extreme conditions of compression, humidity and temperature. The exceptional compressive strength enables it to easily resist several tons/m² downward pressure.

The closed cell structure of DOW SP-XTM XPS foam makes water absorption almost non-existent and provides a high resistance to vapour transmission.

Exceptional Strength

  • Proven long term performance
  • High resistance to settlement and compaction
  • Dimensional and edge profile stability
  • Excellent moisture performance (closed cell structure)
  • Very high resistance to moisture penetration
  • Low vapour permeability
  • High resistance to freeze thaw cycles
  • Durability provides long term retention of these properties
  • Superior thermal resistance
  • Low thermal conductivity
  • Thinner boards required compared to some traditional materials

Health and Safety

  • CFC and HCFC free formulation
  • Zero ozone depletion potential (ODP)
  • Green Star Compliance
  • Non-irritant, light and easy to handle
  • Clean, easy cutting, robust and inherent weather resistant profiles to facilitate rapid and robust installation

Condensation Statement

There are a large number of factors that need to be considered in assessing and managing condensation risk. Such factors include the local climate, building use, position, thickness and type of insulation, position and integrity of vapour barriers, and the degree and location of mechanical or passive ventilation. It is highly recommended that designers undertake a condensation risk analysis.

Specification Clause



DOW SP-XTM extruded polystyrene general application board should be described in the specification as:-

The insulation shall be DOW SP-X ______mm non-porous cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 350 kPa. Zero ODP, CFC and HCFC free. DOW SP-XTM extruded polystyrene general application board is distributed by Dynamic Composite Technologies – T: 1800 051 100.

Technical Data

Product Name:SP-X
Product Description:Non-porous, closed cell, high performance extruded polystyrene general application insulation board for use in floor, wall and roof applications.
Product code:SP-X
Colour:Blue
Edge treatment:Square edge
Width:600 mm
Length:2500 mm
Density:35 kg/m³
Compressive strength:>350kPa
Thermal Conductivity:0.028 W/mK @ 24 °C
Water vapour resistivity:350-950 MNs/gm
Water absorption:≤0.3% vol



Thickness to R-Value
DOW SP-XTM

Nominal Thickness
mm
DOW SP-XTM
R-Value (m²K/W)
501.8
752.7
1003.6
