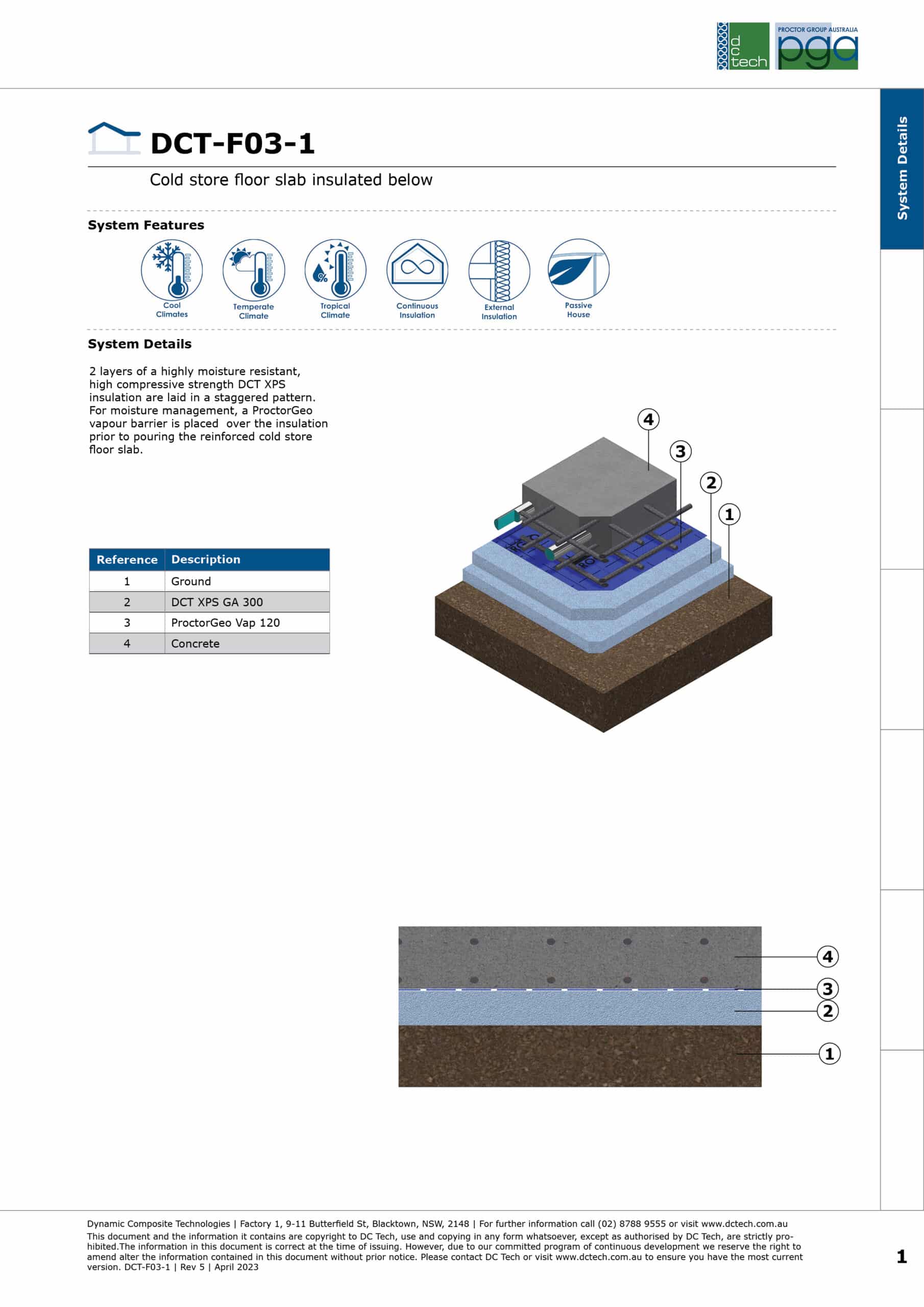

DCT-F03-1

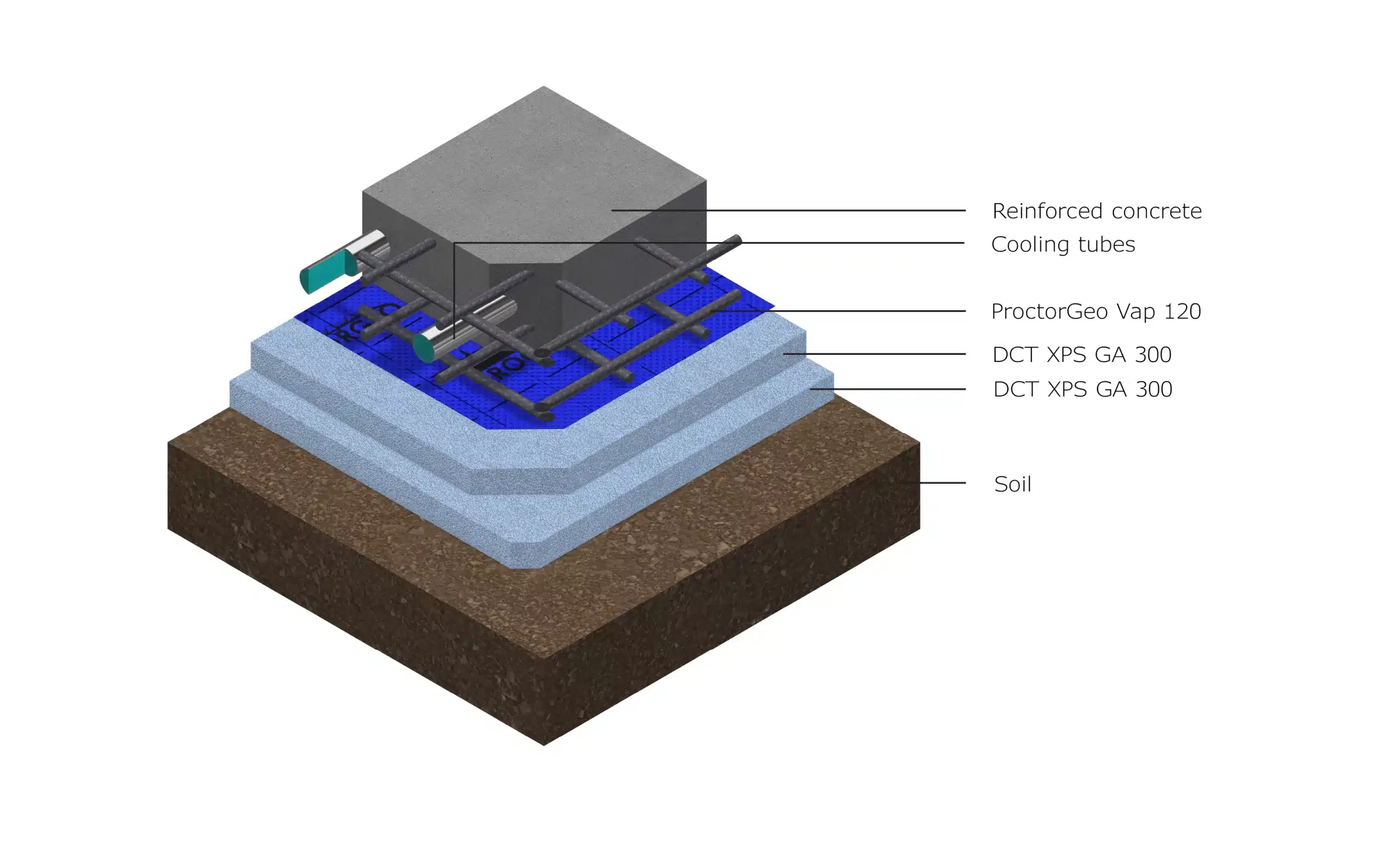

COLD STORE FLOOR SLAB INSULATED BELOW
Two layers of a highly moisture resistant, high compressive strength DCT XPS insulation are laid in a staggered pattern. For moisture management, a ProctorGeo vapour barrier is placed over the insulation prior to pouring the reinforced cold store floor slab.
Section J (NCC 2019) R-Value Calculator
hbspt.cta.load(5178993, ‘23775d8b-c40a-4304-ab12-9096e3965715’, {“useNewLoader”:”true”,”region”:”na1″}); ProctorGeo Vap120 is a light duty air and vapour control layer.
DCT GA 300 is a closed cell high compressive strength, low moisture absorption extruded polystyrene (XPS) general application board for insulating roofs, walls and floors in commercial and residential applications.
