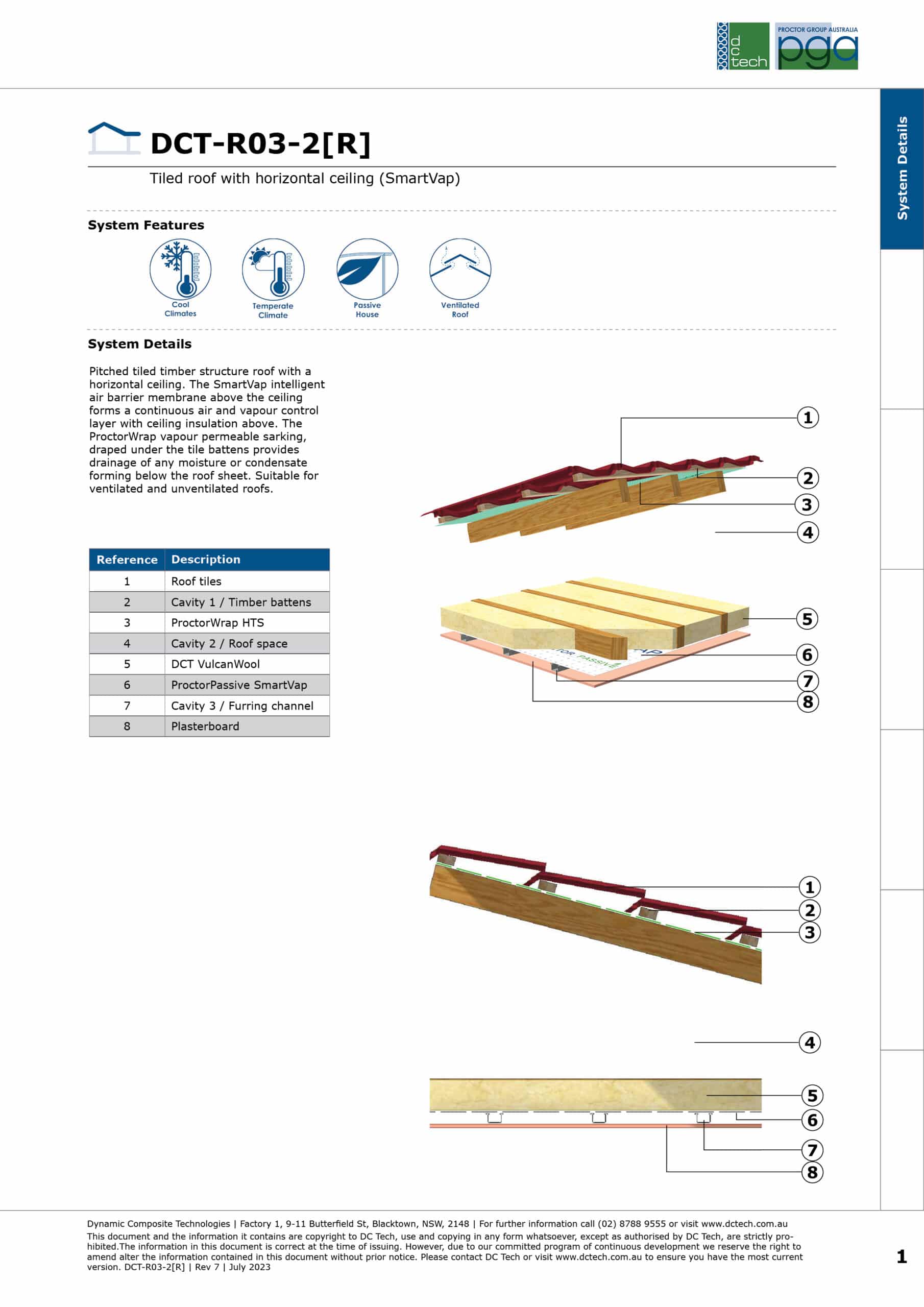

DCT-R03-2(R)

TILED ROOF WITH HORIZONTAL CEILING (SMARTVAP)

DCT-R03-2R

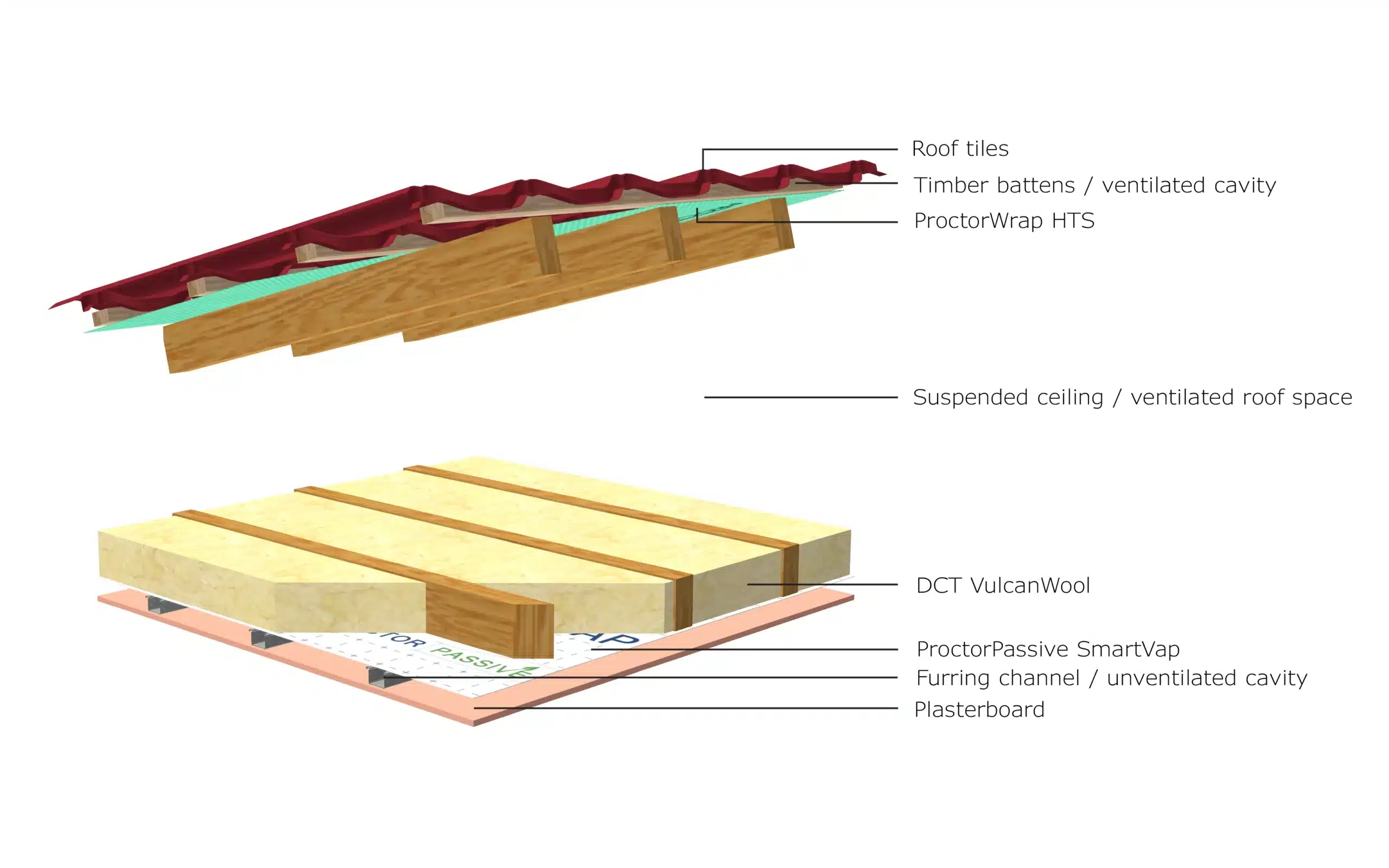

Pitched tiled timber structure roof with a horizontal ceiling. The SmartVap intelligent air barrier membrane above the ceiling forms a continuous air and vapour control layer with ceiling insulation above. The ProctorWrap vapour-permeable sarking, draped under the tile battens provides drainage of any moisture or condensate forming below the roof sheet. Suitable for ventilated and unventilated roofs.

Section J (NCC 2019) R-Value Calculator

New call-to-action

Roof sarking/ wall wrap should be ProctorWrap HTS/ HTS-IT (with integarted tape) vapour permeable sarking membrane, compliant to AS/NZS 4200.1:2017, secured directly to the outside of the roof/wall framing in accordance with the product user guide. AS/NZS 4200.1:2017 Classifications: Duty – Medium, Water Control – Water Barrier, Vapour Control – Class 4 Vapour Permeable, AS1530.2 Flammability Index ≤ 5, Air Control – Air barrier, Electrical Conductivity – Non conductive, Emissivity – Non reflective, Vapour Permeance to ASTM E96(B) no less than 2.5µg/N.s. Thickness <1.0mm. Foil type sarkings do not comply with this specification.

ProctorPassive SmartVap is a light-duty air barrier and variable vapour diffusion vapour control membrane.
