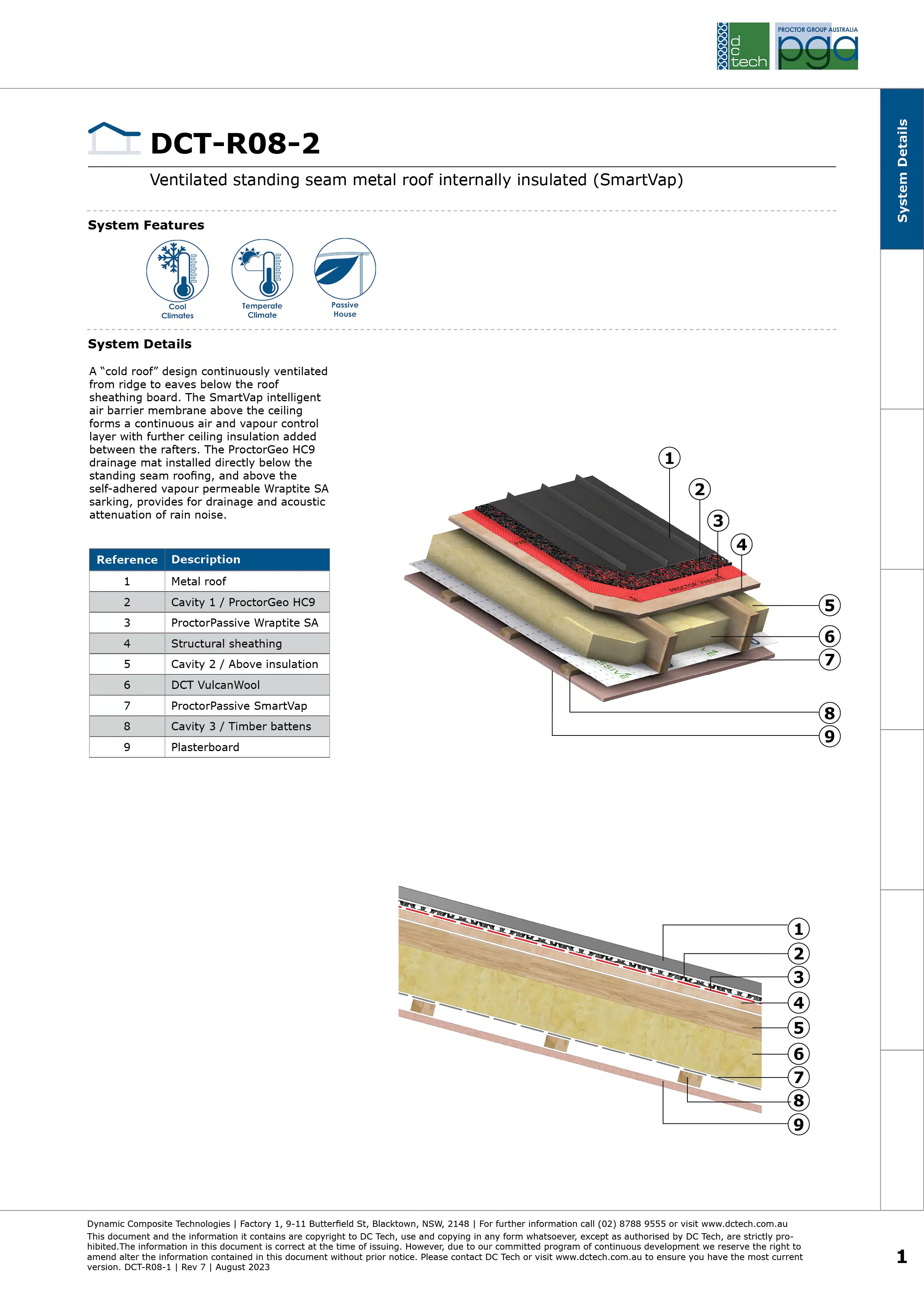

DCT-R08-2

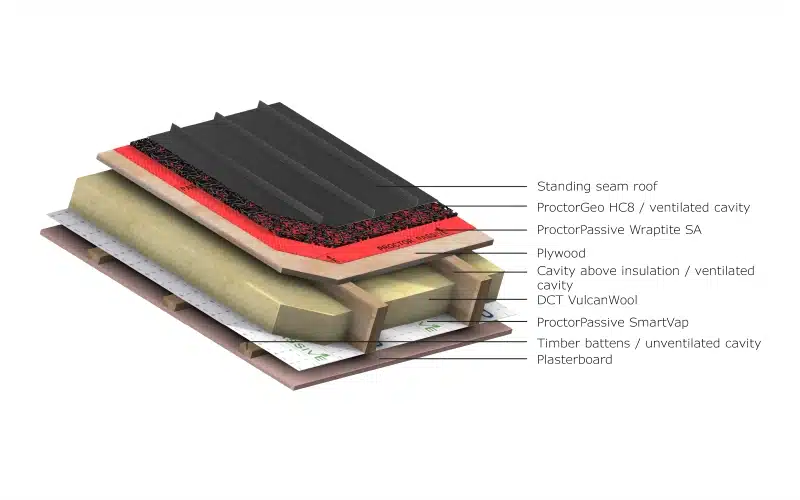

VENTILATED STANDING SEAM METAL ROOF INTERNALLY INSULATED (SMARTVAP)
A “cold roof” design continuously ventilated from ridge to eaves below the roof sheathing board. The SmartVap intelligent air barrier membrane above the ceiling forms a continuous air and vapour control layer with further ceiling insulation added between the rafters. The ProctorGeo HC9 drainage mat installed directly below the standing seam roofing, and above the self-adhered vapour permeable Wraptite SA sarking, provides for drainage and acoustic attenuation of rain noise.
Section J (NCC 2019) R-Value Calculator
ProctorGeo HC9 Drainage Spacer Mat is a three-dimensional shaped mesh of UV stabilized polypropylene monofilaments, tangled and fused together
ProctorPassive Wraptite Self Adhesive (SA) is a light duty vapour permeable membrane for wall and metal roof application functioning as water and air barrier in one innovative vapour permeable self-adhering product .
DCT PIR Silver insulation is a general application thermoset PIR insulation board with two low emissivity foil facings, suited for use in non-exposed floor, roof, wall and ceiling applications in residential and commercial buildings.
