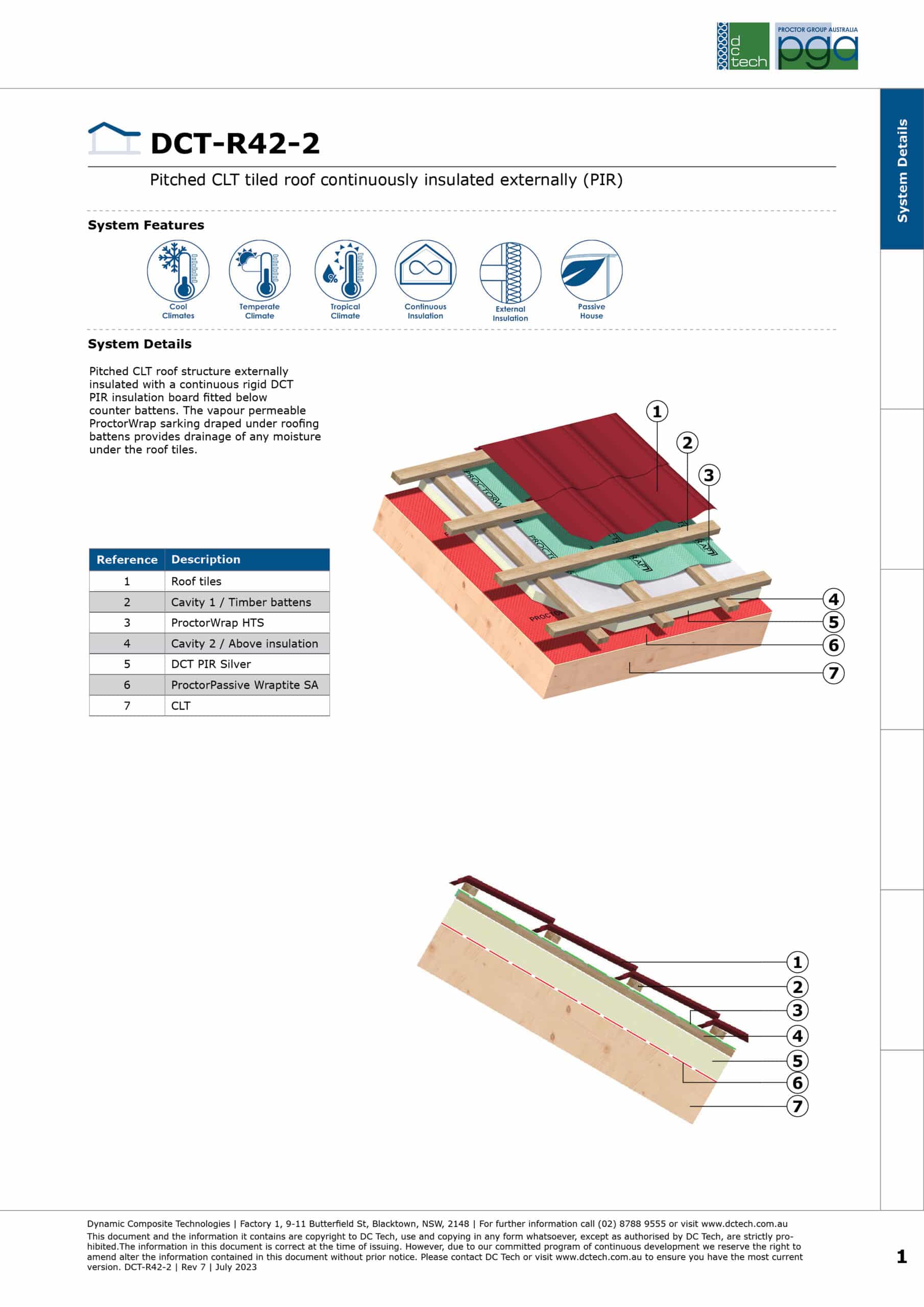

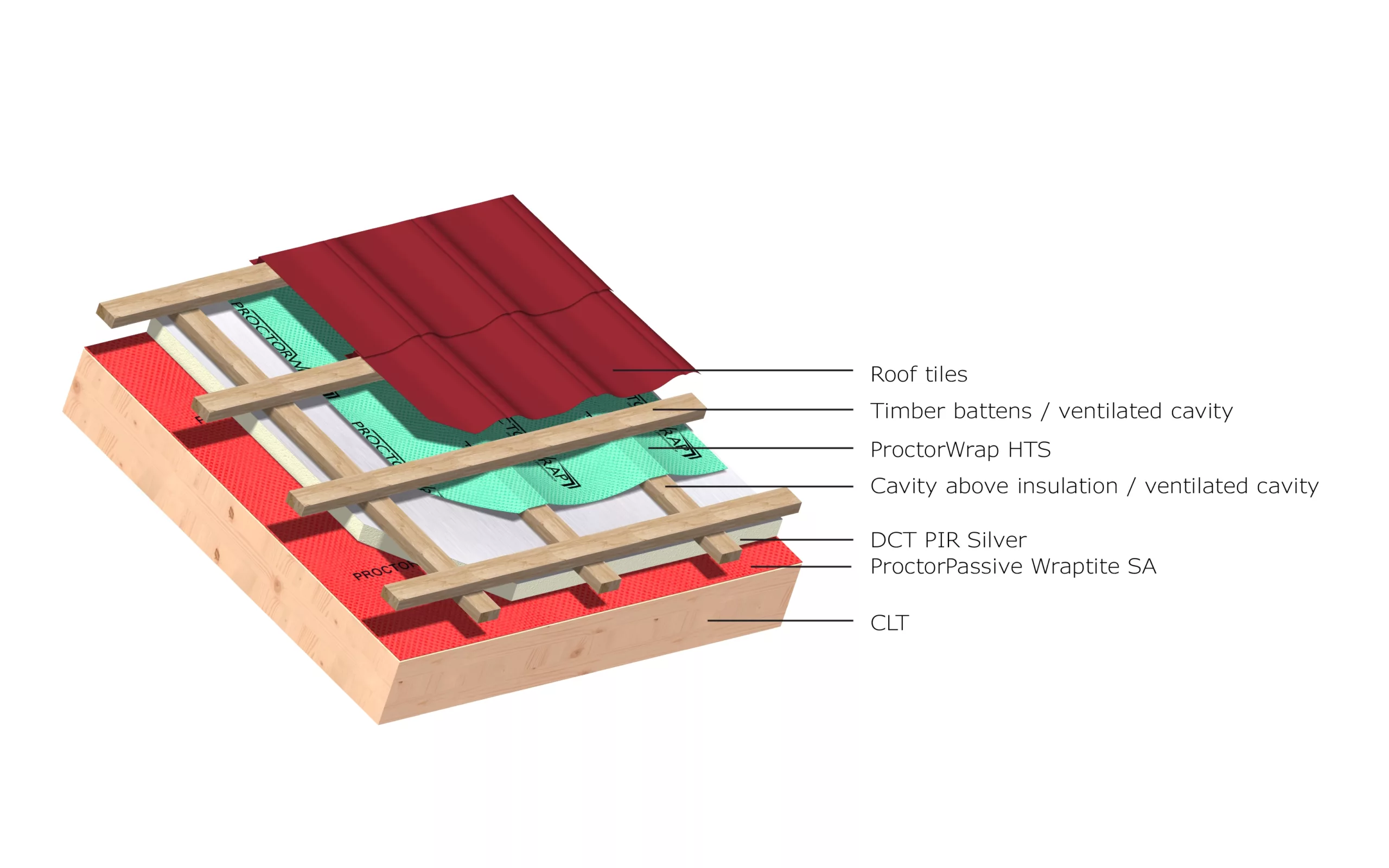

Pitched CLT roof structure externally insulated with a continuous rigid DCT PIR insulation board fitted below counter battens. The vapour permeable ProctorWrap sarking draped under roofing battens provides drainage of any moisture under the roof tiles.
Roof sarking/ wall wrap should be Enviroseal ProctorWrap HTS/ HTS-IT (with integarted tape) vapour permeable sarking membrane, compliant to AS/NZS 4200.1:2017, secured directly to the outside of the roof/wall framing in accordance with the product user guide. AS/NZS 4200.1:2017 Classifications: Duty – Medium, Water Control – Water Barrier, Vapour Control – Class 4 Vapour Permeable, AS1530.2 Flammability Index ≤ 5, Air Control – Air barrier, Electrical Conductivity – Non conductive, Emissivity – Non reflective, Vapour Permeance to ASTM E96(B) no less than 2.5µg/N.s. Thickness <1.0mm. Foil type sarkings do not comply with this specification.
DCT PIR Silver insulation is a general application thermoset PIR insulation board with two low emissivity foil facings, suited for use in non-exposed floor, roof, wall and ceiling applications in residential and commercial buildings.
ProctorPassive Wraptite Self Adhesive (SA) is a light-duty vapour permeable membrane for wall and metal roof application functioning as water and air barrier in one innovative vapour permeable self-adhering product.
