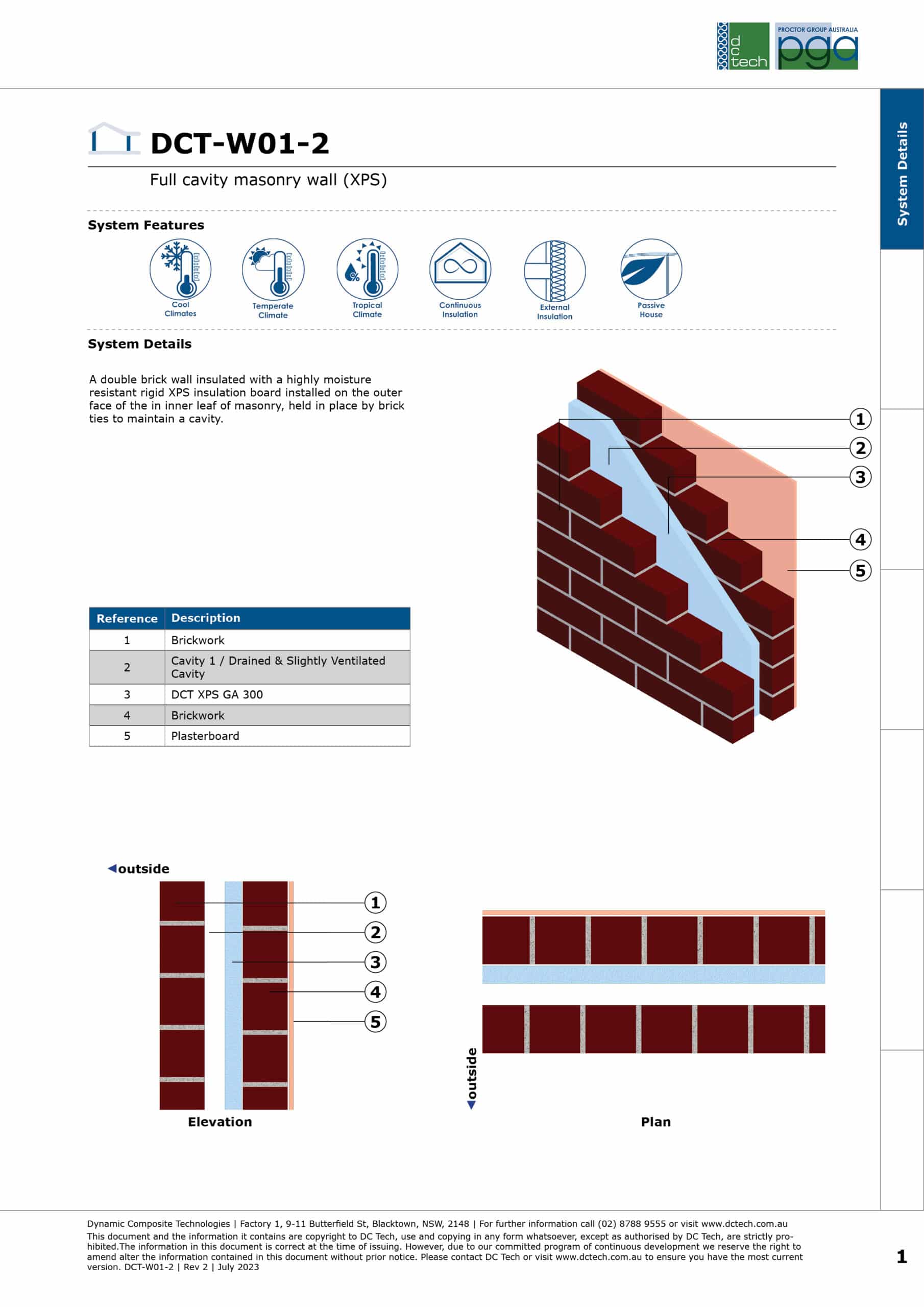

DCT-W01-2
FULL CAVITY MASONRY WALL (XPS)

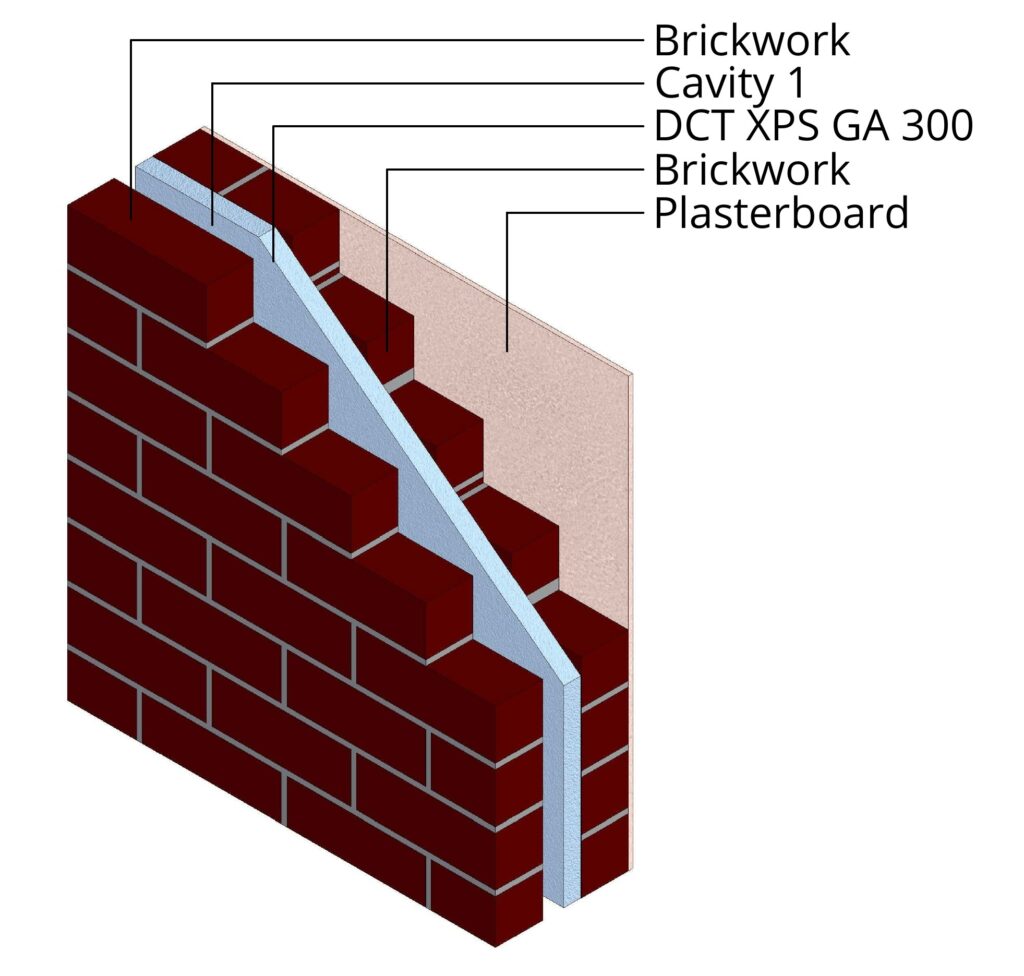

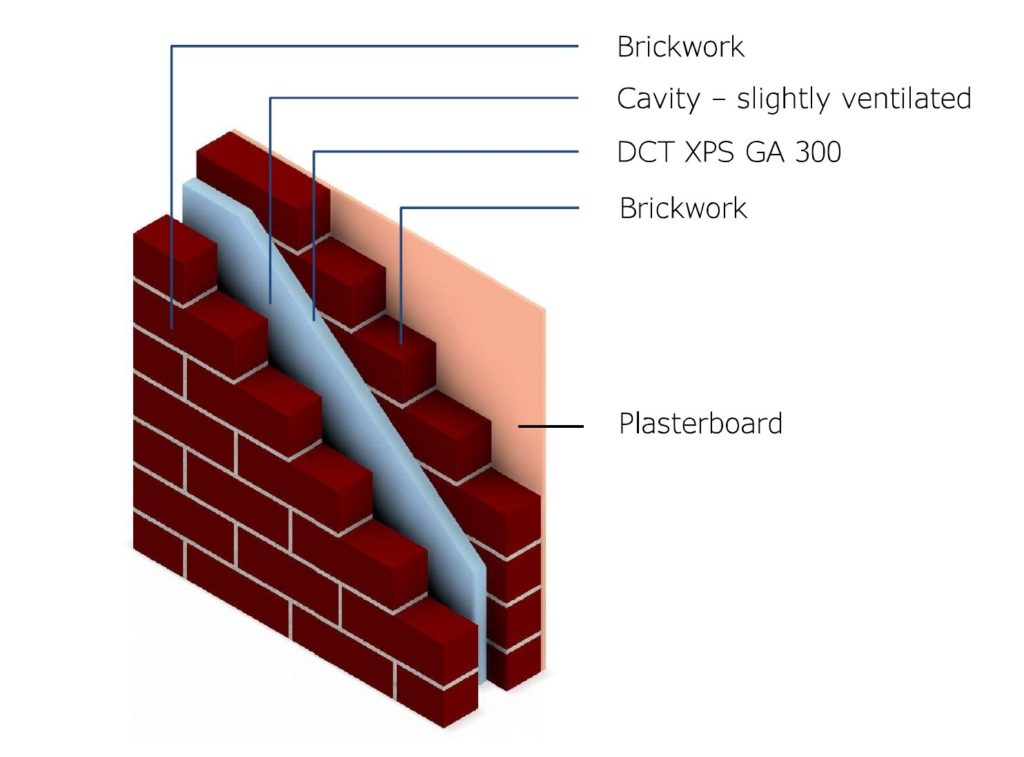

A double brick wall insulated with a highly moisture resistant rigid XPS insulation board installed on the outer face of the in inner leaf of masonry, held in place by brick ties to maintain a cavity.
Section J (NCC 2019) R-Value Calculator
DCT GA 300 is a closed cell high compressive strength, low moisture absorption extruded polystyrene (XPS) general application board for insulating roofs, walls and floors in commercial and residential applications
The insulation shall be DCT XPS GA300 [ …mm] Extruded Polystyrene (XPS) foam panel with minimum compressive strength (min) 300 kPa (AS 2498.3 = 350 kPa average) and water absorption: < 0.3%. DCT XPS GA300 Extruded Polystyrene (XPS) is manufactured under licence for DCTech.
