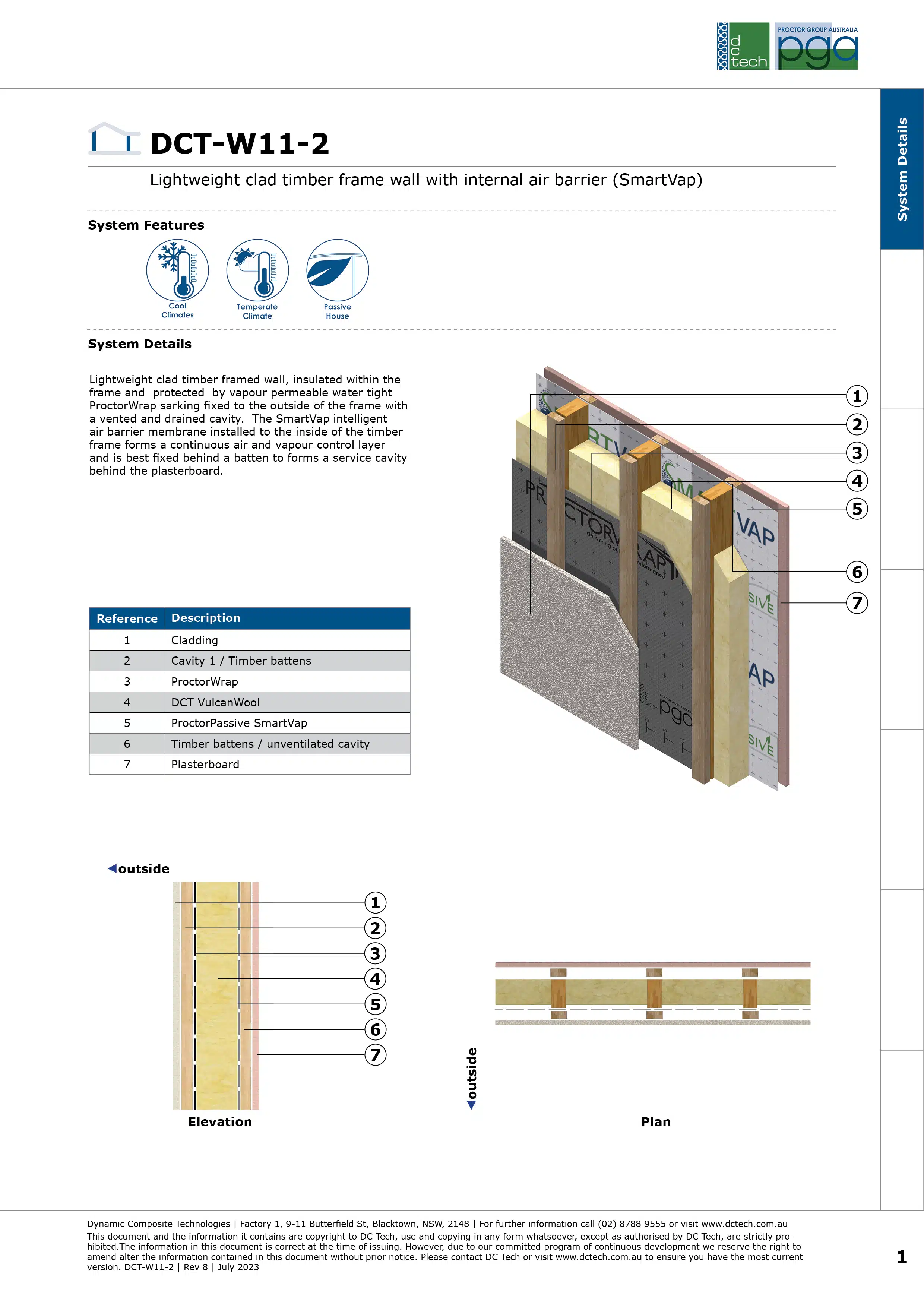

DCT-W11-2
LIGHTWEIGHT CLAD TIMBER FRAME WALL WITH INTERNAL AIR BARRIER (SMARTVAP)

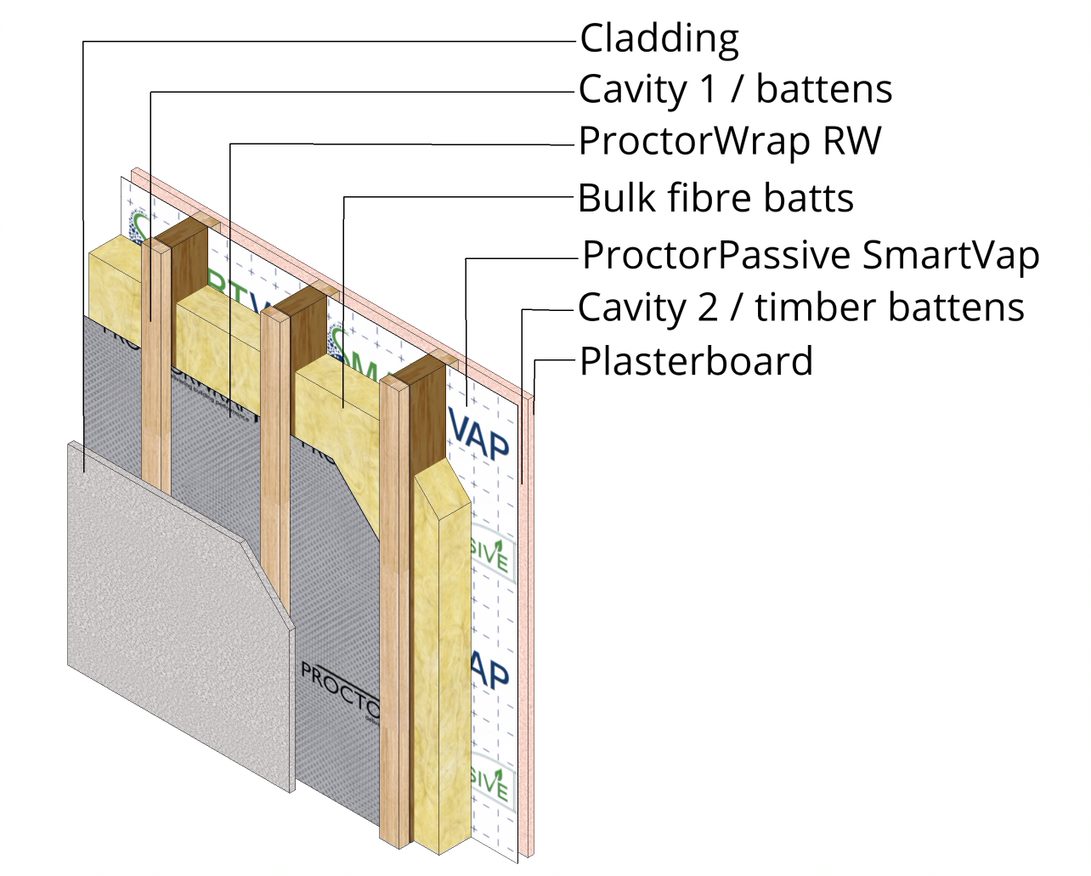

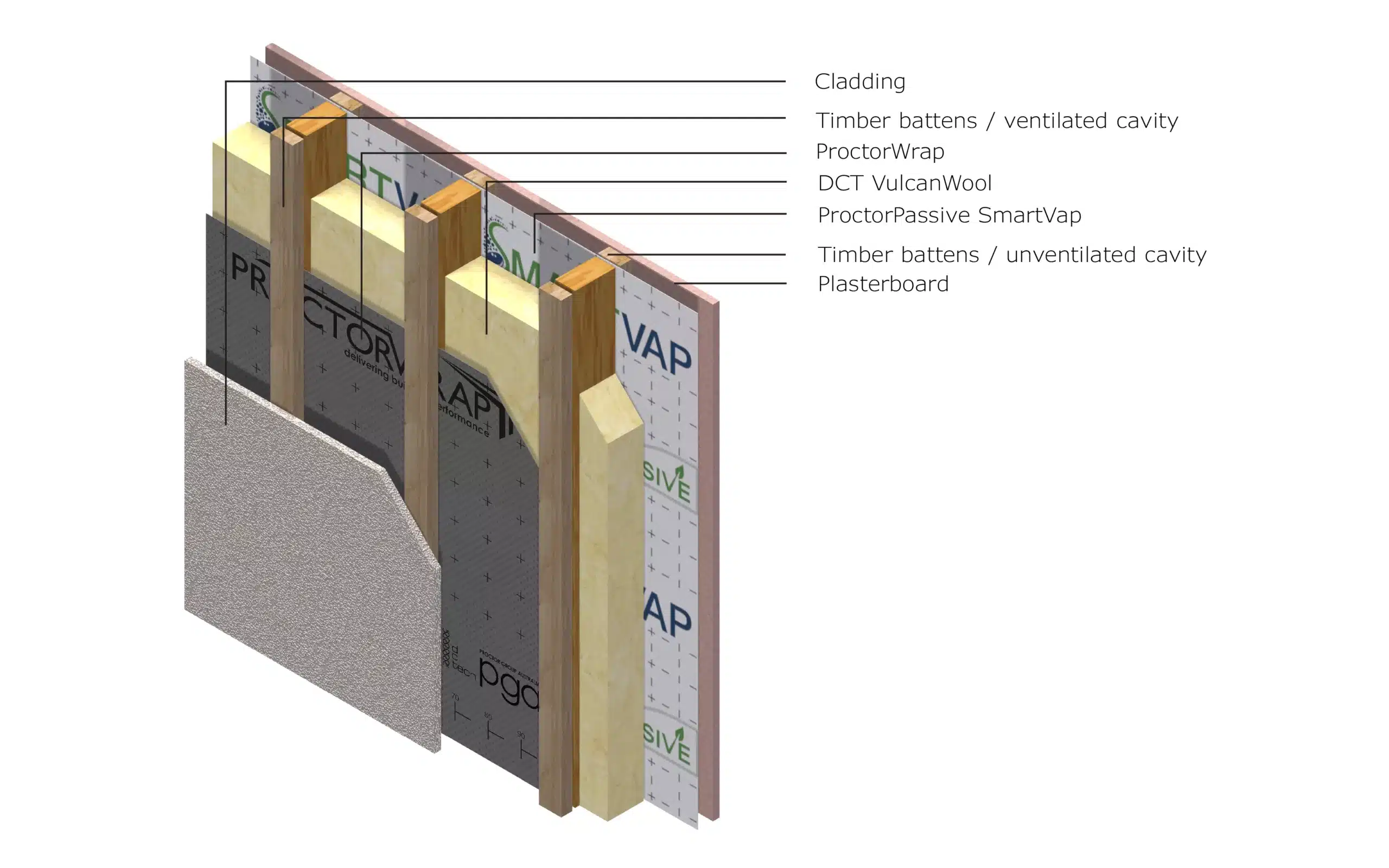

Lightweight clad timber framed wall, insulated within the frame and protected by vapour permeable water tight ProctorWrap sarking fixed to the outside of the frame with a vented and drained cavity. The SmartVap intelligent air barrier membrane installed to the inside of the timber frame forms a continuous air and vapour control layer and is best fixed behind a batten to forms a service cavity behind the plasterboard.
Section J (NCC 2019) R-Value Calculator
ProctorWrap Commercial Wall (CW) is a light duty vapour permeable wall wrap designed for use with timber and steel frame commercial wall constructions. ProctorWrap Commercial Wall (CW-IT) is supplied with double integrated tape.
ProctorPassive SmartVap is a light duty air barrier and variable vapour diffusion vapour control membrane.
