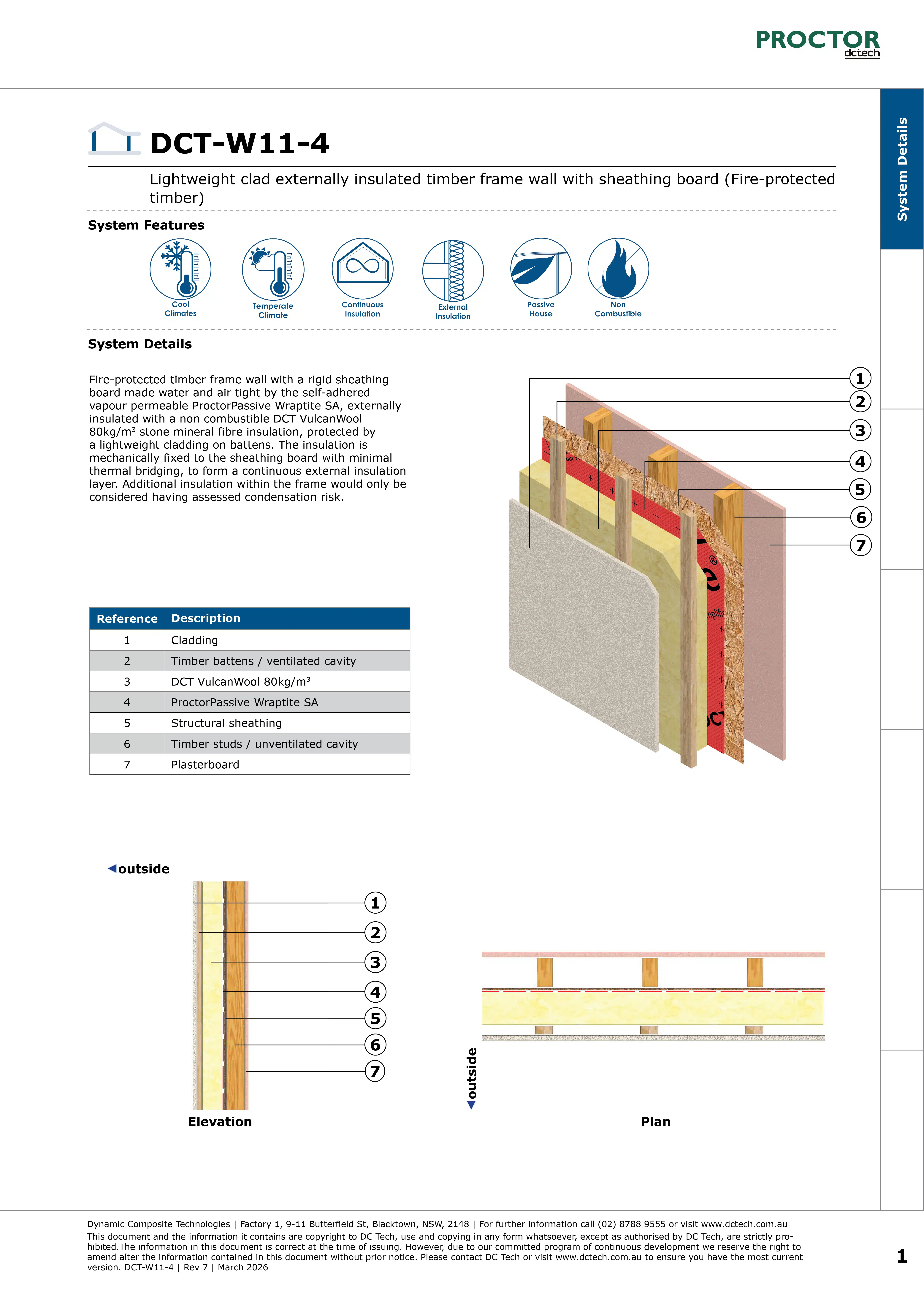

DCT-W11-4
LIGHTWEIGHT CLAD EXTERNALLY INSULATED TIMBER FRAME WALL WITH SHEATHING BOARD (Fire-protected timber)
Fire-protected timber frame wall with a rigid sheathing board made water and air tight by the self-adhered vapour permeable ProctorPassive Wraptite SA, externally insulated with a non combustible DCT VulcanWool 80kg/m3 stone mineral fibre insulation, protected by a lightweight cladding on battens. The insulation is mechanically fixed to the sheathing board with minimal thermal bridging, to form a continuous external insulation layer. Additional insulation within the frame would only be considered having assessed condensation risk.
Section J (NCC 2019) R-Value Calculator
ProctorPassive Wraptite Self Adhesive (SA) is a light duty vapour permeable membrane for wall and metal roof application functioning as water and air barrier in one innovative vapour permeable self-adhering product.
DCT VulcanWool is a non-combustible high density mineral rock fibre stonewool insulation for use as external grade insulation with water shedding characteristics, designed for use in ventilated rainscreen facades and other thermal and acoustic wall, roof, floor and ceiling applications in residential and commercial buildings.
