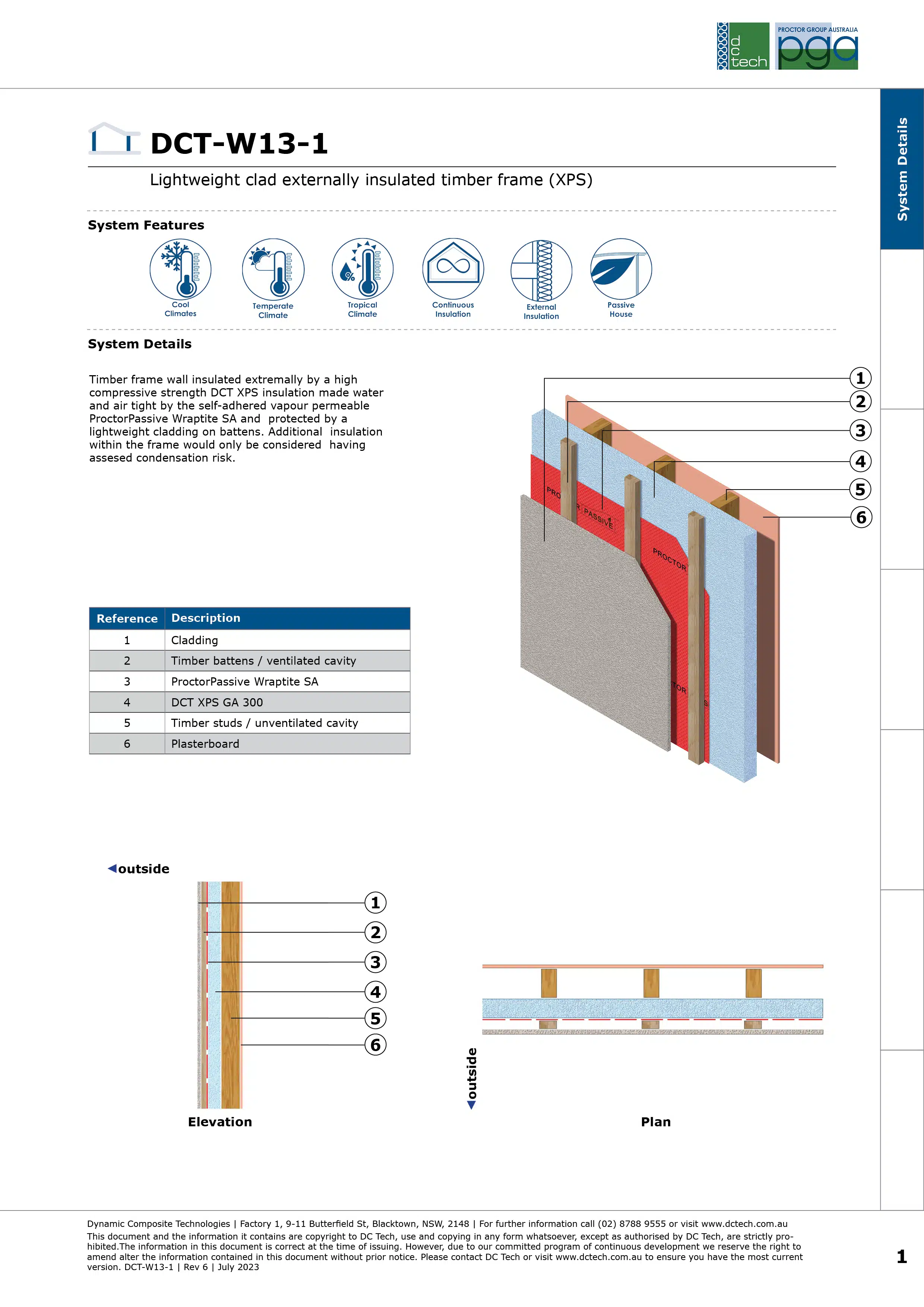

DCT-W13-1
LIGHTWEIGHT CLAD EXTERNALLY INSULATED TIMBER FRAME (XPS)

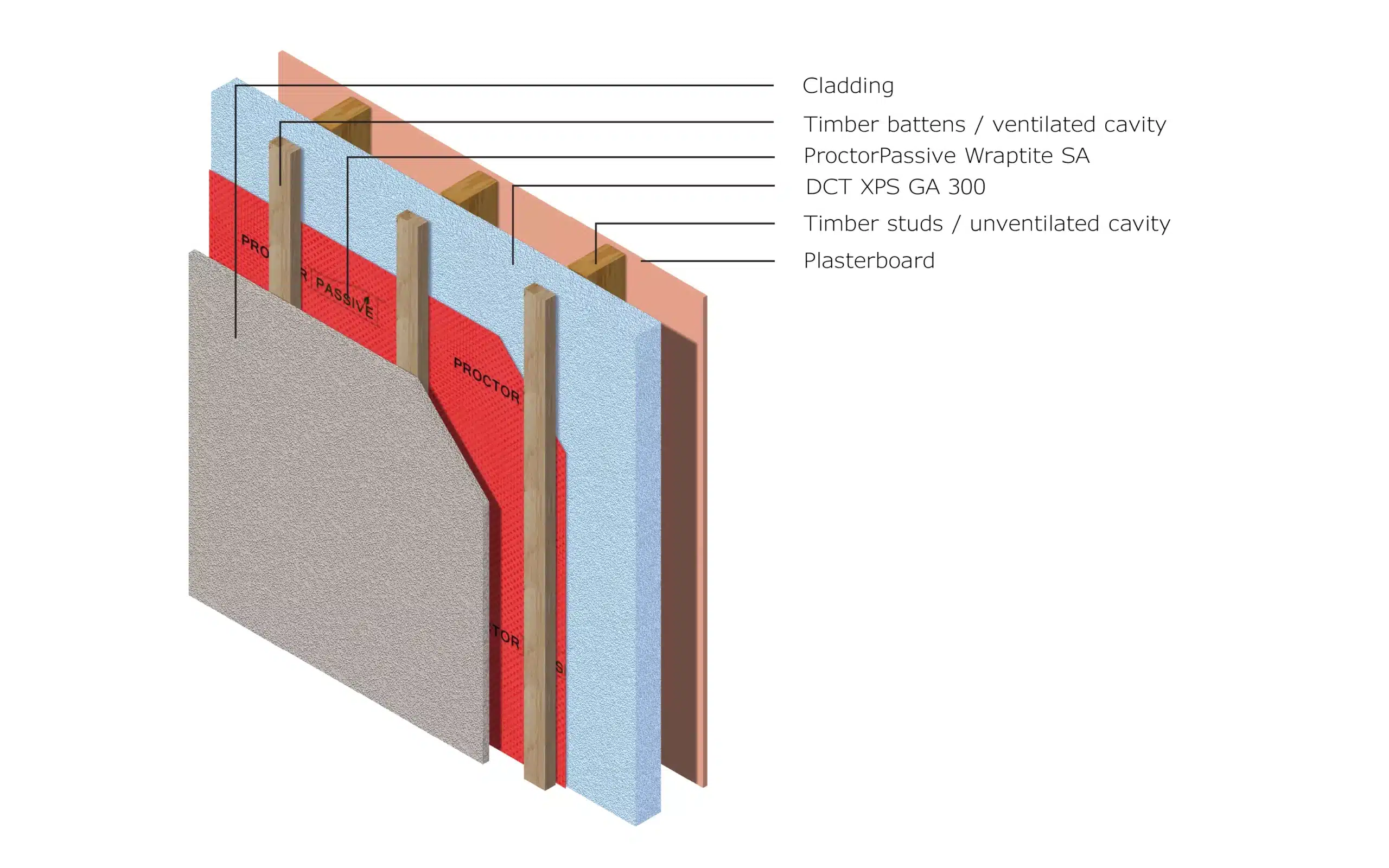

Timber frame wall insulated extremally by a high compressive strength DCT XPS insulation made water and air tight by the self-adhered vapour permeable ProctorPassive Wraptite SA and protected by a lightweight cladding on battens. Additional insulation within the frame would only be considered having assessed condensation risk.
Section J (NCC 2019) R-Value Calculator
ProctorPassive Wraptite Self Adhesive (SA) is a light duty vapour permeable membrane for wall and metal roof application functioning as water and air barrier in one innovative vapour permeable self-adhering product.
DCT GA 300 is a closed cell high compressive strength, low moisture absorption extruded polystyrene (XPS) general application board for insulating roofs, walls and floors in commercial and residential applications
