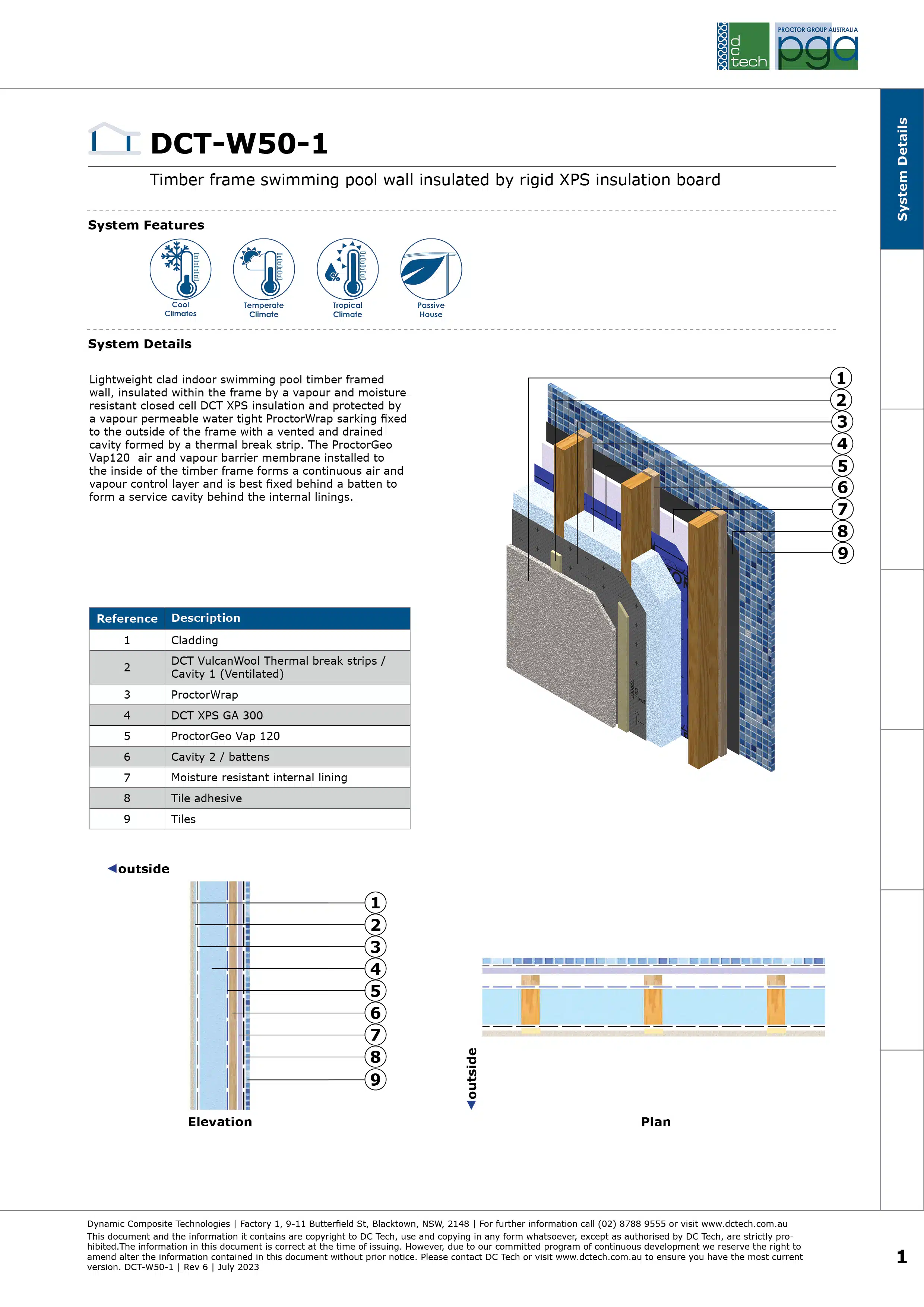

DCT-W50-1

TIMBER FRAME SWIMMING POOL WALL INSULATED BY RIGID XPS INSULATION BOARD

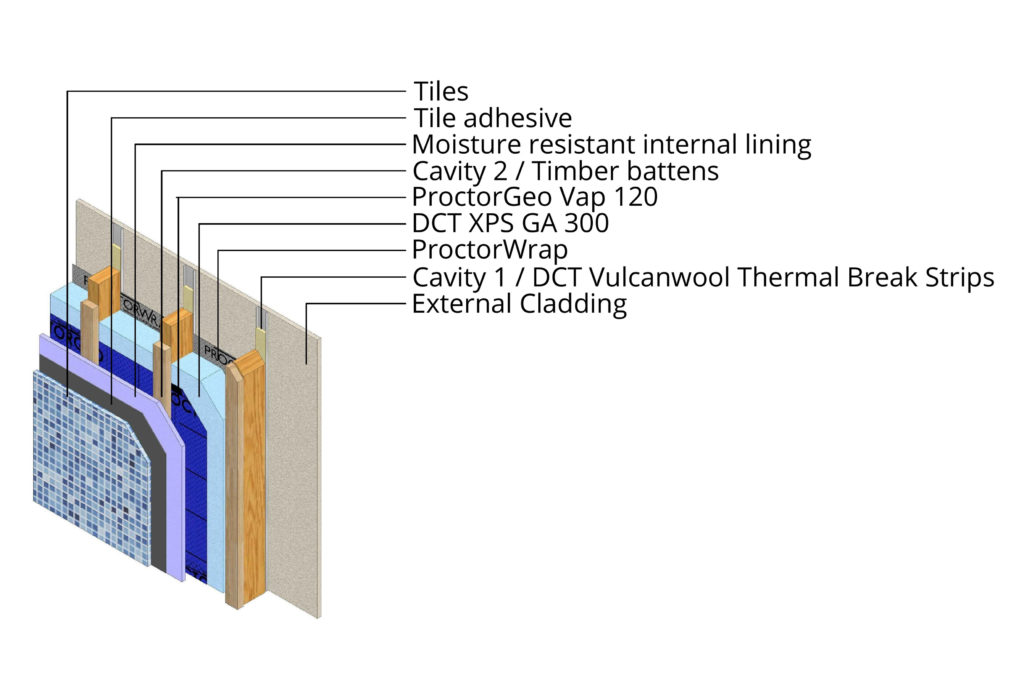

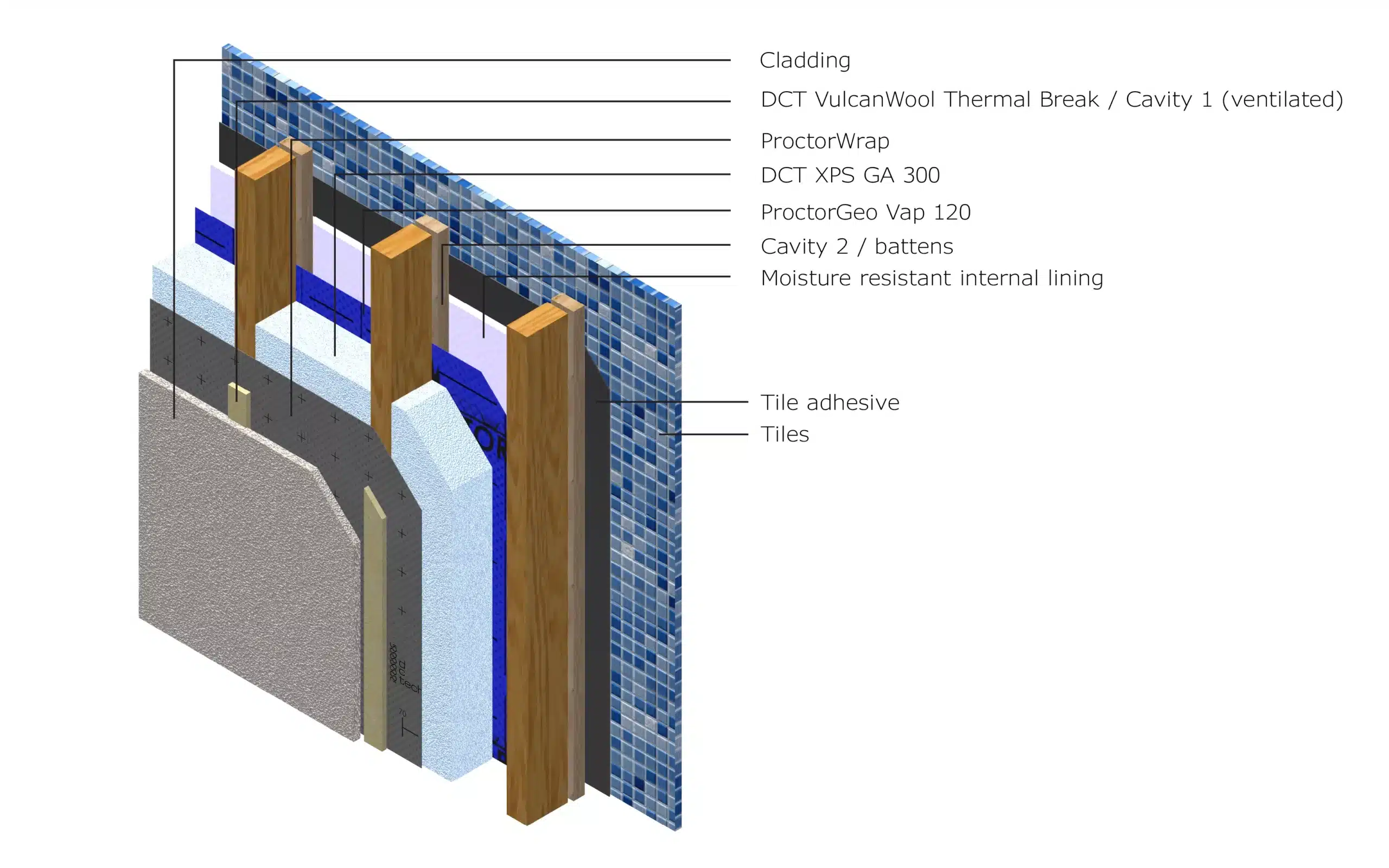

Lightweight clad indoor swimming pool timber framed wall, insulated within the frame by a vapour and moisture resistant closed cell DCT XPS insulation and protected by a vapour permeable water tight ProctorWrap sarking fixed to the outside of the frame with a vented and drained cavity formed by a thermal break strip. The ProctorGeo Vap120 air and vapour barrier membrane installed to the inside of the timber frame forms a continuous air and vapour control layer and is best fixed behind a batten to form a service cavity behind the internal linings.

Section J (NCC 2019) R-Value Calculator

New call-to-action

DCT Vulcanwool Thermal break strip is a non-combustible thermal break for wall and roofing applications, made with a high density non-combustible rock fibre Vulcanwool insulation with water shedding characteristics, reinforced with an aluminium extruded cover.

DCT GA 300 is a closed cell high compressive strength, low moisture absorption extruded polystyrene (XPS) general application board for insulating roofs, walls and floors in commercial and residential applications

Enviroseal ProctorWrap CW is a light duty vapour permeable wall wrap designed for use with timber and steel frame commercial wall constructions. Enviroseal ProctorWrap CW-IT is supplied with double integrated tape.

ProctorGeo Vap120 is a light duty air and vapour control layer.
