STYROFOAM-FLOORMATE-X

Details

Dow Styrofoam Floormate-X extruded polystyrene (XPS) thermal insulation is an ideal heavy load-bearing material suitable for most floor types, from industrial applications through to residential builds.

Dow Floormate-X (XPS) rigid thermal insulation can be installed under or over the slab in ground bearing concrete floors and is suitable for use on suspended beam and block or timber floors.

Applications

  • under concrete slab, slab on ground
  • hydronic floor heating
  • geo-engineering backfill to protect civil engineering projects from freezing

Features

  • high compressive strength
  • high thermal resistance
  • resistance to ground moisture and most ground contaminants
  • dimensionally stable
  • will not attract vermin or insects

Standards

  • Green Star compliant
  • Zero ODP
  • CO2 Blown
  • Low VOC’s
  • EU Reg EC309394

Specification Clause
General Application Board

Specify Dow Styrofoam™ ‘X’ Foam for Greenstar projects

Dow Styrofoam™ Floormate-X extruded polystyrene general application board should be described in specifications as:-

The insulation shall be Dow Styrofoam™ Floormate-X __mm closed cell rigid cellular extruded polystyrene (XPS) foam panel with minimum compressive strength 300 kPa. Dow Styrofoam™ Floormate-X is distributed by Proctor Group Australia – T: 1800 174 900.

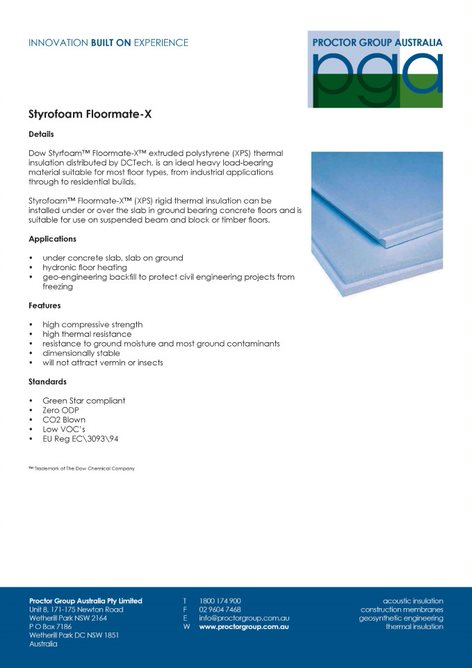

Download Brochure

Nominal Thickness to R-Value
Dow Styrofoam Floormate-X XPS @ 24°C
Nominal Thickness
mm
Lambda/K Value/Thermal
Conductivity
R Value
25 0.0278 0.90
30 0.0278 1.08
40 0.0278 1.44
50 0.0278 1.80
60 0.0278 2.16
75 0.0278 2.70
80 0.0278 2.88
90 0.0278 3.24
100 0.0278 3.60
120 0.0278 4.32
150 0.0278 5.40
200 0.0278 7.19
