Acoustic Insulation

Details

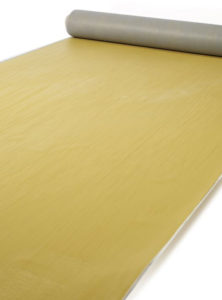

Tecsound® is a Mass Loaded Polymeric acoustic barrier, that is superior to Mass loaded Vinyl acoustic products.

Texsa Tecsound® is a high-density, polymer-based, synthetic soundproofing membrane, which provides outstanding acoustic insulation against airborne, impact and rain noise in new construction and refurbishing work.

If you would like more information about our new range of soundproofing membranes, watch the Tecsound® video or give our office a call on 1800 051 100.

Product Guide Applications
Tecsound®
Synthetic soundproofing membrane
  • Lightweight metal
  • Wooden roofs and floors
Tecsound® SY
Self adhesive synthetic soundproofing membrane
  • Gypsum board partitions and ceilings
  • Facades
  • Metal Panels
Tecsound® FT
Soundproofing material
  • Ceilings, floors and refubishing walls
Tecsound® 2FT
Soundproofing material
  • Cavity walls
Tecsound® FT 55 AL
Soundproofing material
  • Drainpipes, conducts, engines
Tecsound® S Band
Self adhesive soundproofing band
  • Damping of metallic structures
  • Sealing of joints and overlaps
Proctor Q- Silence  Soundproofing material
  • Laid under-slab, Proctor Q-Silence reduces noise from impact and foot traffic for all types of floor surfaces including ceramic tiles, timber, parquetry and carpet
DCTech URSAcoustic
  • Glass mineral wool rolled panel, faced by one side by a reinforced glass veil.
Isolgomma Acoustics
  • Due to a special grinding process, Isolgomma is able to recycle rubber products like SBR (styrene-butadiene rubber)and EPDM (ethylene propylene diene monomer) for manufacturing mats and panels of various thicknesses and densities

TECSOUND

Details

Tecsound® is a high-density, polymer-based asphalt-free synthetic soundproofing membrane, which is visco-elastic and highly adaptable, and provides good acoustic insulation in the different construction elements without increasing thickness.

Applications

  • Airborne noise insulation in vertical surfaces with low surface mass (lightweight partitions or panels in various materials)
  • Airborne noise insulation in ceilings and roofs
  • Reduction of impact noise level in all types of frameworks, information of floating floors
  • Damping of impact noise produced by atmospheric agents in metals roofs
  • In combination with sound-absorbent materials, it results in products with high acoustic performance characteristics
  • Its applications in the industrial sector range from soundproofing booths to insulation of machine rooms, drainpipes, acoustic damping of metal sheets etc.,

Download Brochure

[wpforms id=”444″ title=”Download Brochure” description=”false”]

Technical Data

Product Name: Tecsound®
Product Description: High density, polymer-based, synthetic soundproofing membrane, asphalt-free, with provides good acoustic insulation in the different construction elements.
Density: 2.0 kg/cm³
Product code: Tecsound
Pliability: Does not break when bent at -20°C
Tensile Strength: 30 N/cm²
Elongation: 300%
Crushing strength: 4.84 kg/cm²

Presentation and storage

Type kg/m² Thickness (mm) Presentation
Tecsound 35 3.5 1.75 8m x 1.22m roll
Tecsound 50 5 2.5 6m x 1.22m roll
Tecsound 70 7 3.5 5m x 1.22m roll
Tecsound 100 10 5 4m x 1.2m roll

TECSOUND SY – SELF-ADHESIVE ACOUSTIC MEMBRANE

Details

Tecsound® is a synthetic soundproofing membrane, which has a built-in self-adhesive layer enabling it to be applied straight onto most surfaces.

Applications

  • Airborne noise insulation in vertical surfaces with low surface mass (lightweight partitions or panels in various materials)
  • Airborne noise insulation in ceilings
  • Reduction of impact noise level in all types of frames works, in formation of floating floors
  • Damping of impact noise produced by atmospheric agents in metal roofs
  • In combination with sound-absorbent materials, it results in products with high acoustic performance characteristics
  • Its application in the industrial sector range from soundproofing booths to insulation of machine rooms, drainpipes, acoustic damping of metal sheeting etc.,
  • Specially for plaster sheet measurements

Features

  • High acoustic insulation, combined with flexion-pliable elements
  • Flexible
  • High elongation capacity
  • Easy to handle and adaptable to uneven surfaces
  • Hot and cold-resistant
  • Excellent adherence on all kinds of surfaces
  • Self-extinguishing
  • Rot-proof

Download Brochure

[wpforms id=”444″ title=”Download Brochure” description=”false”]

Technical Data

Product Name: Tecsound® SY
Product Description: Synthetic soundproofing membrane with built-in self-adhesive layer
Density: 2.0 kg/cm³
Product code: Tecsound SY
Pliability: Does not break when bent at -20°C
Tensile Strength: 30 N/cm²
Elongation: 300%
Crushing strength: 4.84 kg/cm²

p>Presentation and storage

Type kg/m² Thickness (mm) Presentation
Tecsound 35 3.5 1.75 8m x 1.22m roll
Tecsound 50 5 2.5 6m x 1.22m roll
Tecsound 70 7 3.5 5m x 1.22m roll
Tecsound 100 10 5 4.0m x 1.20m roll

TECSOUND S BAND

Details

Tecsound® S Band is a synthetic Tecsound® membrane soundproofing tape, with a built-in self-adhesive layer enabling it to be applied straight onto metals structures subject to vibrations.

Applications

  • Damping of vibrations of the metal structure in gypsum plasterboard partitions

Download Brochure

[wpforms id=”444″ title=”Download Brochure” description=”false”]

Presentation and storage

Type kg/m² Thickness (mm) Presentation
Tecsound S50 Band 5 2.5 6m x 0.05m roll

TECSOUND FT

Details

Tecsound® FT is a soundproofing complex comprising a porous felt and the polymer-based Tecsound® synthetic membrane, asphalt-free, both formed so that they provide high acoustic insulation in the different construction elements; walls, ceilings, roofs, etc.

Tecsound® FT is ideal for soundproofing of horizontal (ceilings) and vertical enclosures, where high acoustic insulation against transmission of airborne noise is required. Its main applications include new construction and restoration works, industries, cinemas, theatres, sports complexes, night clubs, bars, restaurants, hotels and shopping centres.

Applications

  • Airborne noise insulation in vertical surfaces
  • Airborne noise insulation in ceilings
  • Reduction of impact noise level in all types of frameworks and crossbeams

Features

  • High acoustic insulation, combined with flexion-pliable elements (sheet plaster, carrier board)
  • Easy handling and application
  • Joins easy to execute
  • Excellent ageing-resistance
  • Rot-proof
  • Self-extinguishing
  • Hot and cold-resistant

Download Brochure

[wpforms id=”444″ title=”Download Brochure” description=”false”]

 Technical Data

Product Name: Tecsound® FT
Product Description: Porous felt and polymer-based Tecsound® synthetic membrane, asphalt-free, both formed so that they provide high acoustic insulation
Product code: Tecsound® FT
Tensile strength: >30 N/cm²
Thermal conductivity coefficient: 0.037 W/m ºC (felt)

Presentation and storage

Type kg/m² Thickness (mm) Presentation
Tecsound® FT 40 4.1 12 6.0m x 1.20m roll
Tecsound® FT 55 5.6 12.5 5.50m x 1.20m roll
Tecsound® FT 75 7.6 14 5.50m x 1.20m roll

TECSOUND FT

Details

Tecsound® 2FT is a soundproofing complex comprising two porous felts with the polymer-based Tecsound® synthetic membrane, asphalt-free, sandwiched in between, so that they provide high acoustic insulation in the different construction elements; walls, ceilings, roofs etc.

Tecsound® 2FT is ideal for soundproofing of horizontal (ceilings) and vertical enclosures, where high acoustic insulation against transmission of airborne noise is required.

Applications

  • Airborne noise insulation in vertical surfaces
  • Airborne noise insulation in ceilings
  • Reduction of impact noise level in all types of frameworks and crossbeams

Features

  • High acoustic insulation, combined with flexion-pliable elements (sheet plaster, carrier board)
  • Easy handling and application
  • Joins easy to execute
  • Excellent ageing-resistance
  • Rot-proof
  • Self-extinguishing
  • Hot and cold-resistant

Download Brochure

[wpforms id=”444″ title=”Download Brochure” description=”false”]

 Technical Data

Product Name: Tecsound® 2FT
Product Description: Two porous felts with the polymer-based Tecsound® synthetic membrane, asphalt-free, sandwiched in between
Product code: Tecsound® 2FT
Tensile strength: >30 N/cm²
Thermal conductivity coefficient: 0.037 W/m ºC (felt)

Presentation and storage

Type kg/m² Thickness (mm) Presentation
Tecsound® 2FT 80 8.2 24 5.50m x 1.20m roll

TECSOUND FT 55 AL

Details

Tecsound® FT 55 AL is a soundproofing complex comprising a porous felt and the Tecsound® synthetic membrane, coated on the outside with a reinforced aluminium foil. Tecsound® FT 55 AL increased the acoustic insulation of the pipe it is applied to, its effect based on an absorbent element and a highly elastic, high-density insulating membrane.

Applications

  • Acoustic insulation of drainpipes
  • Acoustic insulation of air conditioning vents
  • Acoustic insulation of industrial pipes

Features

  • Increased acoustic insulation of the pipe it is applied to, its effect based on an absorbent element and a highly elastic, high-density insulating membrane
  • Easy handling and application
  • High flexibility
  • Excellent ageing-resistance
  • Rot-proof
  • Hot and cold-resistant

Download Brochure

[wpforms id=”444″ title=”Download Brochure” description=”false”]

 Technical Data

Product Name: Tecsound® FT 55 AL
Product Description: Porous felt and the Tecsound® synthetic membrane, coated on the outside with a film of reinforced aluminium
Density: 2.0 kg/cm³
Product code: Tecsound® FT 55 AL
Pliability: 0Does not break when bent at -10°C
Tensile Strength: >30 N/cm²
Elongation: 300%
Crushing strength: 0.037 W/m ºC (felt)

Presentation and storage

Type kg/m² Thickness (mm) Presentation
Tecsound® FT 55 AL 5.5 12.5 5.50m x 1.20m roll

ISOLGOMMA ACOUSTIC

DCTech has been offering solutions for acoustic and thermal-acoustic insulation geared towards improving the quality of life. Constantly evolving product ranges and strong emphasis on comfort and environmental awareness have led DCTech to expand its range into the railway and industrial sectors, with solutions dedicated to vibration damping.

Nowadays, Isolgomma has an established reputation in the Italian and international markets for the development of eco-sustainable solutions. The use of advanced technologies and growing industrialization of its production processes enable Isolgomma to manufacture products made of recycled rubber granules and fiber boasting unique technical and acoustic features, that are protected by international patents. Thanks to a special grinding process, Isolgomma is able to recycle rubber products like SBR (styrene-butadiene rubber) and EPDM (ethylene propylene diene monomer) for manufacturing mats and panels of various thicknesses and densities. Several different product lines – such as hot and cold presses, coupling lines and cutting lines – allow for obtaining eco-compatible items having a low environmental impact.

The production of items with excellent acoustic and thermal-acoustic properties allows for satisfying the needs of a demanding, complex market that continues to evolve.

DCTech and Isolgomma intends to continue investing in the development of innovative products for solutions offering high acoustic comfort in all application sectors, while fostering its commitment to safeguarding the environment.

Download Brochure

[wpforms id=”444″ title=”Download Brochure” description=”false”]
