DCT-W22-2 THERMALLY BROKEN INTERNALLY INSULATED STEEL FRAME RAINSCREEN WALL WITH RIGID AIR BARRIER

Steel frame wall thermally broken by a DCT VulcanWool Thermal Break Strip fixed behind a rigid air barrier made water and air tight by the self-adhered vapour permeable ProctorPassive Wraptite SA protected by a rainscreen cladding supported by the Nvelope engineered helping hand sub-framing system. As the DCT VulcanWool insulation in the frame and the thermal break strip are deemed non-combustible per AS1530.1, this solution is recommended for type A or B non-combustible wall construction.

By |2023-12-28T10:48:26+11:00December 20th, 2023|Comments Off on DCT-W22-2 THERMALLY BROKEN INTERNALLY INSULATED STEEL FRAME RAINSCREEN WALL WITH RIGID AIR BARRIER

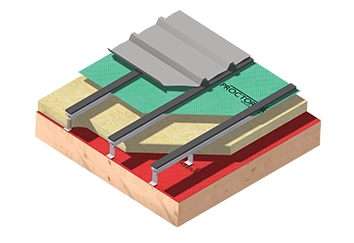

DCT-R44-1 FLAT CLT WITH METAL ROOF, SPACERS AND DCT VULCANWOOL

Flat CLT roof structure protected by ProctorPassive Wraptite SA, externally insulated with a continuous high density non-combustible DCT VulcanWool insulation board fitted between a structural roof spacer. The vapour permeable ProctorWrap HTS sarking with ProctorVent VB20 Ventilation batten provides drainage of any moisture or condensate forming below the metal roof sheet.

By |2023-12-28T11:04:57+11:00December 18th, 2023|Comments Off on DCT-R44-1 FLAT CLT WITH METAL ROOF, SPACERS AND DCT VULCANWOOL

DCT-R20-5 COMMERCIAL METAL ROOF WITH FOIL FACED INSULATION BLANKET, ROOF SPACES AND VAPOUR PERMEABLE MEMBRANE (HC8 SPACER MAT)

Commercial metal roof externally insulated with a vapour barrier faced mineral fibre insulation blanket supported by a safety mesh. The full thickness of the insulation is maintained using structural spacers at each purlin. The ProctorGeo HC8 spacer mat installed below the roof sheet, and above the vapour permeable ProctorWrap HTS sarking, provides for drainage, ventilation and acoustic attenuation.

By |2024-06-05T11:51:54+10:00December 18th, 2023|Comments Off on DCT-R20-5 COMMERCIAL METAL ROOF WITH FOIL FACED INSULATION BLANKET, ROOF SPACES AND VAPOUR PERMEABLE MEMBRANE (HC8 SPACER MAT)

DCT-R20-4 COMMERCIAL METAL ROOF WITH FOIL FACED INSULATION BLANKET, ROOF SPACES AND VAPOUR PERMEABLE MEMBRANE (VENTILATION BATTEN)

Commercial metal roof externally insulated with a vapour barrier faced mineral fibre insulation blanket supported by a safety mesh. The full thickness of the insulation is maintained using structural spacers at each purlin. The ProctorVent VB20 Ventilated Batten installed below the roof sheet, and above the vapour permeable ProctorWrap HTS sarking, provides for drainage and ventilation.

By |2023-12-28T10:56:42+11:00December 18th, 2023|Comments Off on DCT-R20-4 COMMERCIAL METAL ROOF WITH FOIL FACED INSULATION BLANKET, ROOF SPACES AND VAPOUR PERMEABLE MEMBRANE (VENTILATION BATTEN)

DCT-R50-1 SWIMMING POOL ROOF EXTERNALLY INSULATED BY RIGID XPS INSULATION BOARD

Swimming pool or aquatic centre roof externally insulated with a continuous closed cell moisture resistant DCT XPS insulation board above a ProctorGeo Vap120 vapour retarder supported by purlins, a safety mesh, roof deck or strapping. The ProctorGeo HC9 drainage mat installed between the roof sheet, and above the vapour permeable ProctorWrap HTS sarking, provides for drainage and acoustic attenuation of rain noise. The continuous external moisture resistant insulation maintains the roof structure at indoor temperature which should be above dew point.

By |2024-06-06T12:16:47+10:00May 3rd, 2021|Comments Off on DCT-R50-1 SWIMMING POOL ROOF EXTERNALLY INSULATED BY RIGID XPS INSULATION BOARD

DCT-R20-3 METAL ROOF OVER AN INSULATION BLANKET AND RIGID XPS THERMAL BREAKS (DRAINAGE BATTEN)

Pitched metal cathedral roof externally insulated with a continuous vapour and air retarder faced mineral fibre insulation blanket supported by a safety mesh or strapping. The full thickness of the insulation is maintained using a rigid DCT XPS thermal break at each purlin. The ProctorPassive Drainage Batten installed above the vapour permeable ProctorWrap HTS sarking at each purlin, provides for drainage, ventilation and separation.

By |2023-08-15T15:09:50+10:00May 3rd, 2021|Comments Off on DCT-R20-3 METAL ROOF OVER AN INSULATION BLANKET AND RIGID XPS THERMAL BREAKS (DRAINAGE BATTEN)
