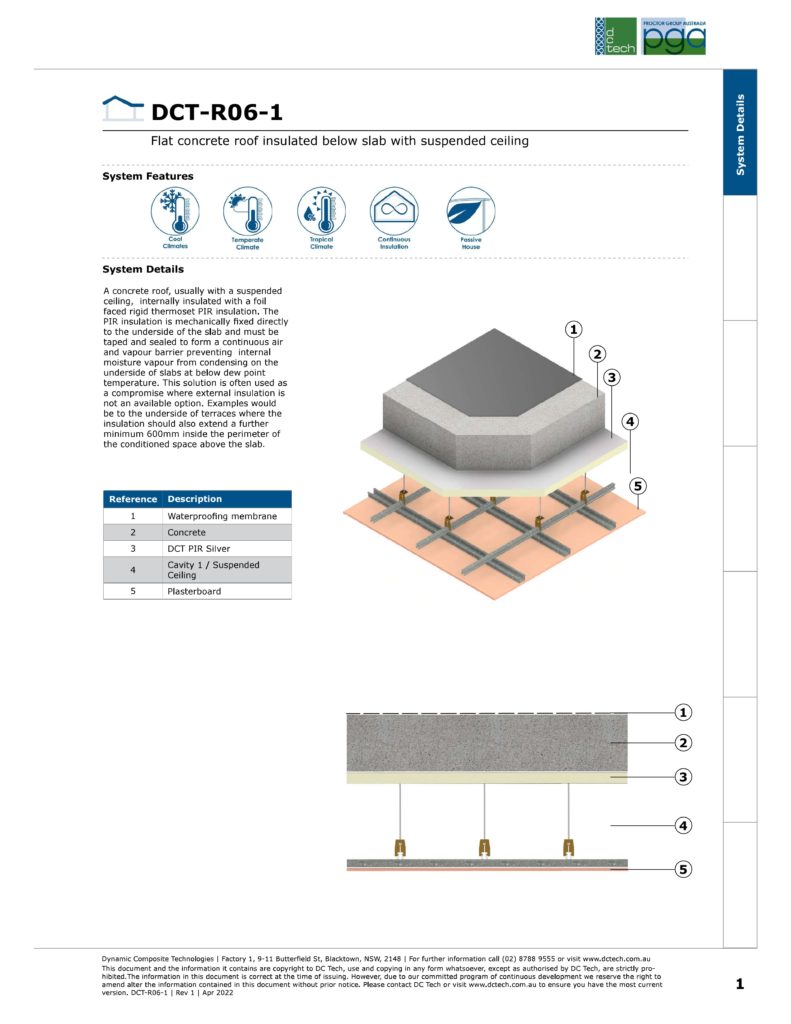

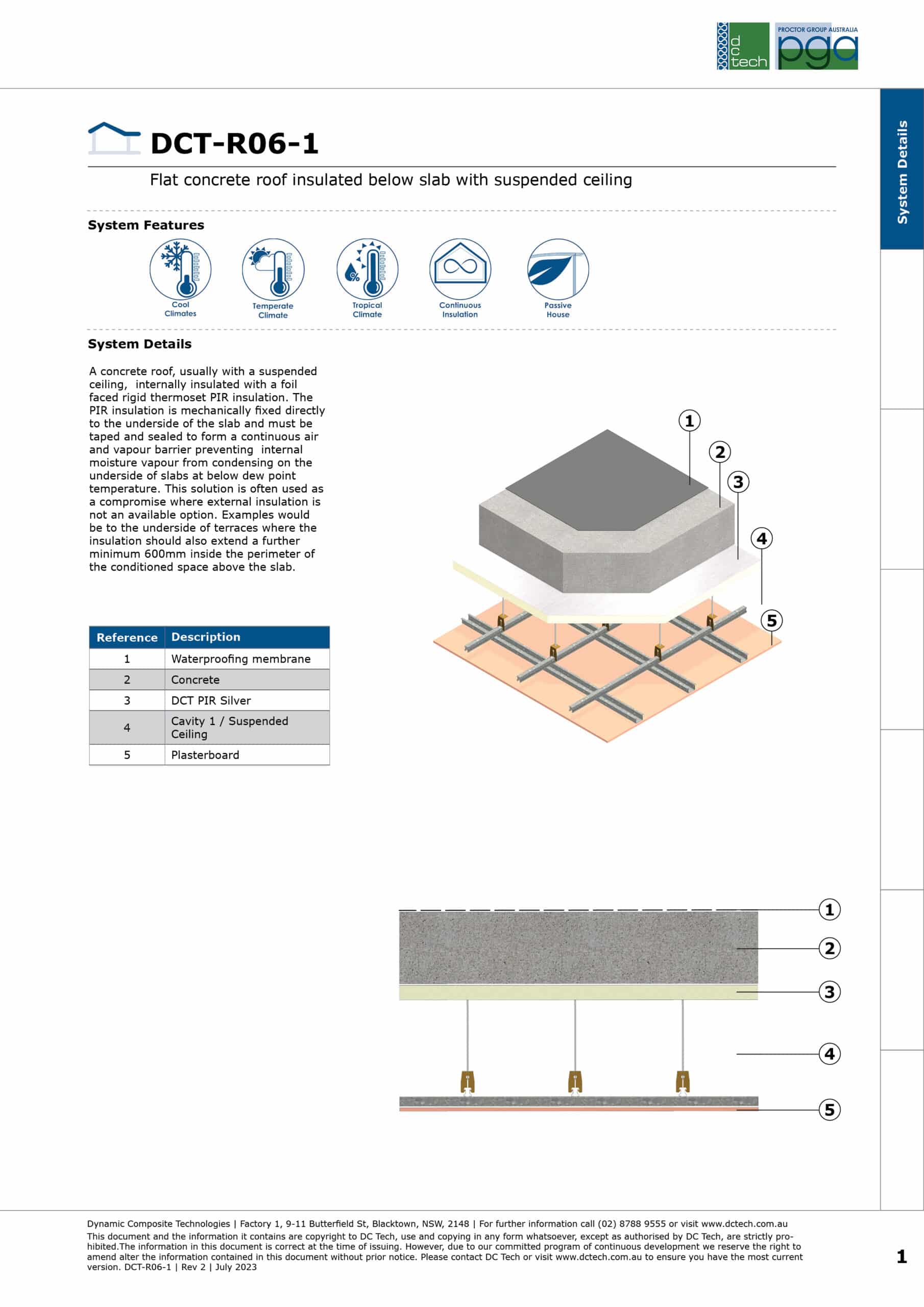

DCT-R06-1

FLAT CONCRETE ROOF INSULATED BELOW SLAB WITH SUSPENDED CEILING

A concrete roof, usually with a suspended ceiling, internally insulated with a foil faced rigid thermoset PIR insulation. The PIR insulation is mechanically fixed directly to the underside of the slab and must be taped and sealed to form a continuous air and vapour barrier preventing internal moisture vapour from condensing on the underside of slabs at below dew point temperature. This solution is often used a compromise where external insulation is not an available option such to the underside of balconies where the insulation should also extend a further minimum 600mm inside the perimeter of the condition space above the slab.

Section J (NCC 2019) R-Value Calculator

New call-to-action

DCT PIR Silver insulation is a general application thermoset PIR insulation board with two low emissivity foil facings, suited for use in non-exposed floor, roof, wall and ceiling applications in residential and commercial buildings.
