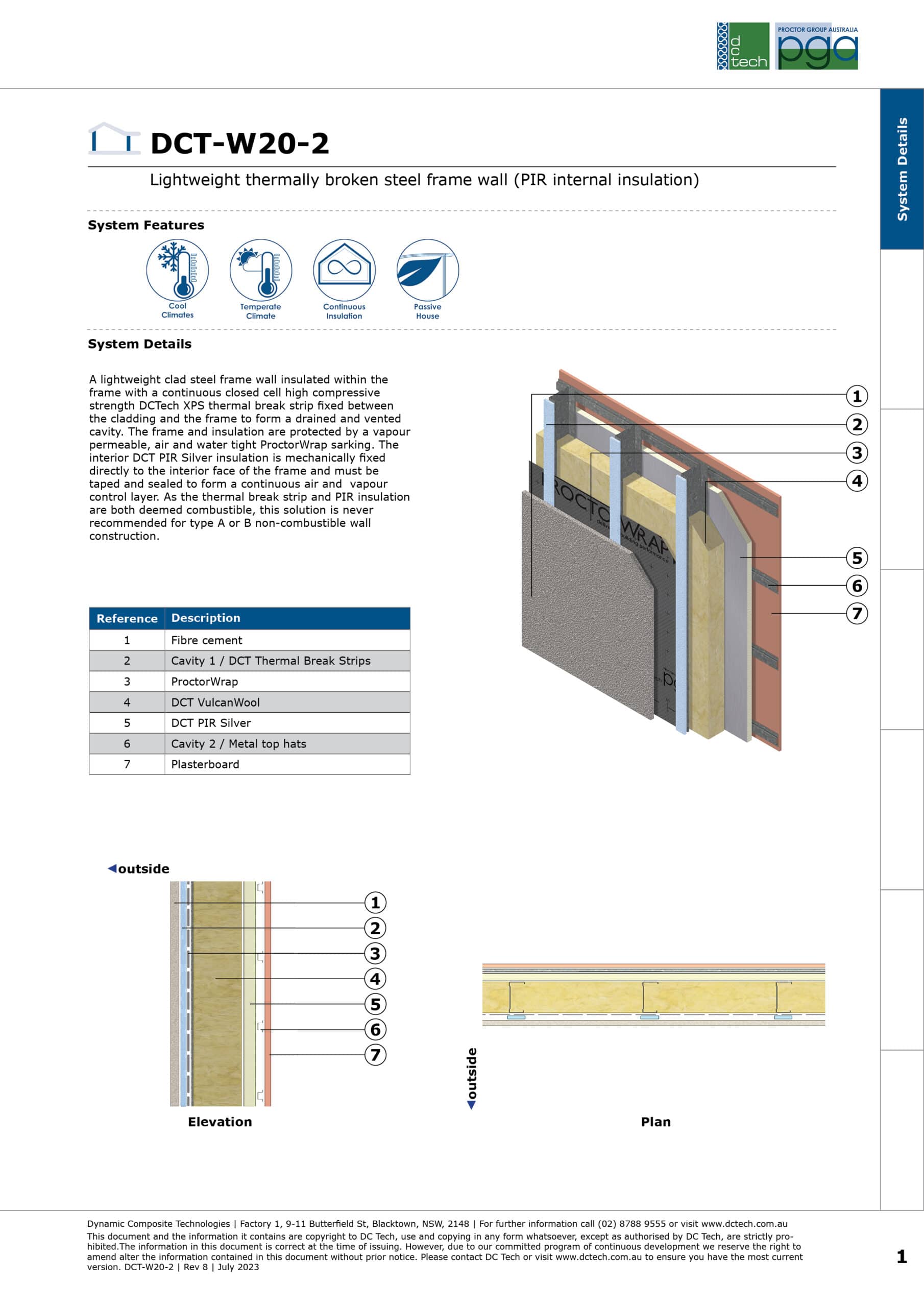

DCT-W20-2

LIGHTWEIGHT THERMALLY BROKEN STEEL FRAME WALL (PIR INTERNAL INSULATION)

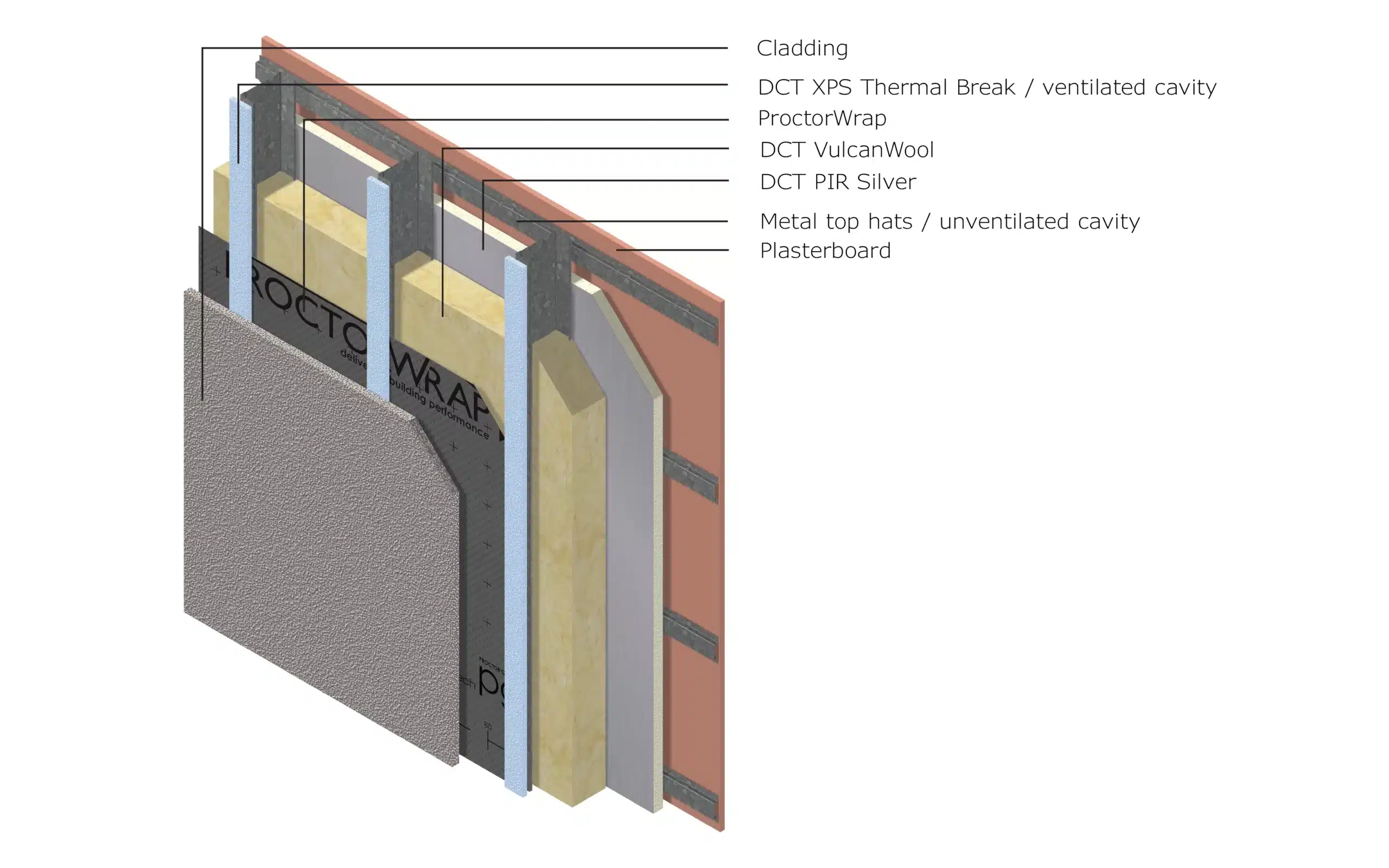

A lightweight clad steel frame wall insulated within the frame with a continuous closed cell high compressive strength DCTech XPS thermal break strip fixed between the cladding and the frame to form a drained and vented cavity. The frame and insulation are protected by a vapour permeable, air and water tight ProctorWrap sarking. The interior DCT PIR Silver insulation is mechanically fixed directly to the interior face of the frame and must be taped and sealed to form a continuous air and vapour control layer. As the thermal break strip and PIR insulation are both deemed combustible, this solution is never recommended for type A or B non-combustible wall construction.

Section J (NCC 2019) R-Value Calculator

New call-to-action

DCT PIR Silver insulation is a general application thermoset PIR insulation board with two low emissivity foil facings, suited for use in non-exposed floor, roof, wall and ceiling applications in residential and commercial buildings.

Enviroseal ProctorWrap CW

Enviroseal ProctorWrap Commercial Wall (CW) is a light duty vapour permeable wall wrap designed for use with timber and steel frame commercial wall constructions. Enviroseal ProctorWrap Commercial Wall (CW-IT) is supplied with double integrated tape.

DCT XPS Thermal Break Strips are closed cell high compressive strength, low moisture absorption extruded polystyrene (XPS) strips to serve as thermal breaks for roofs and walls in commercial and residential applications.
