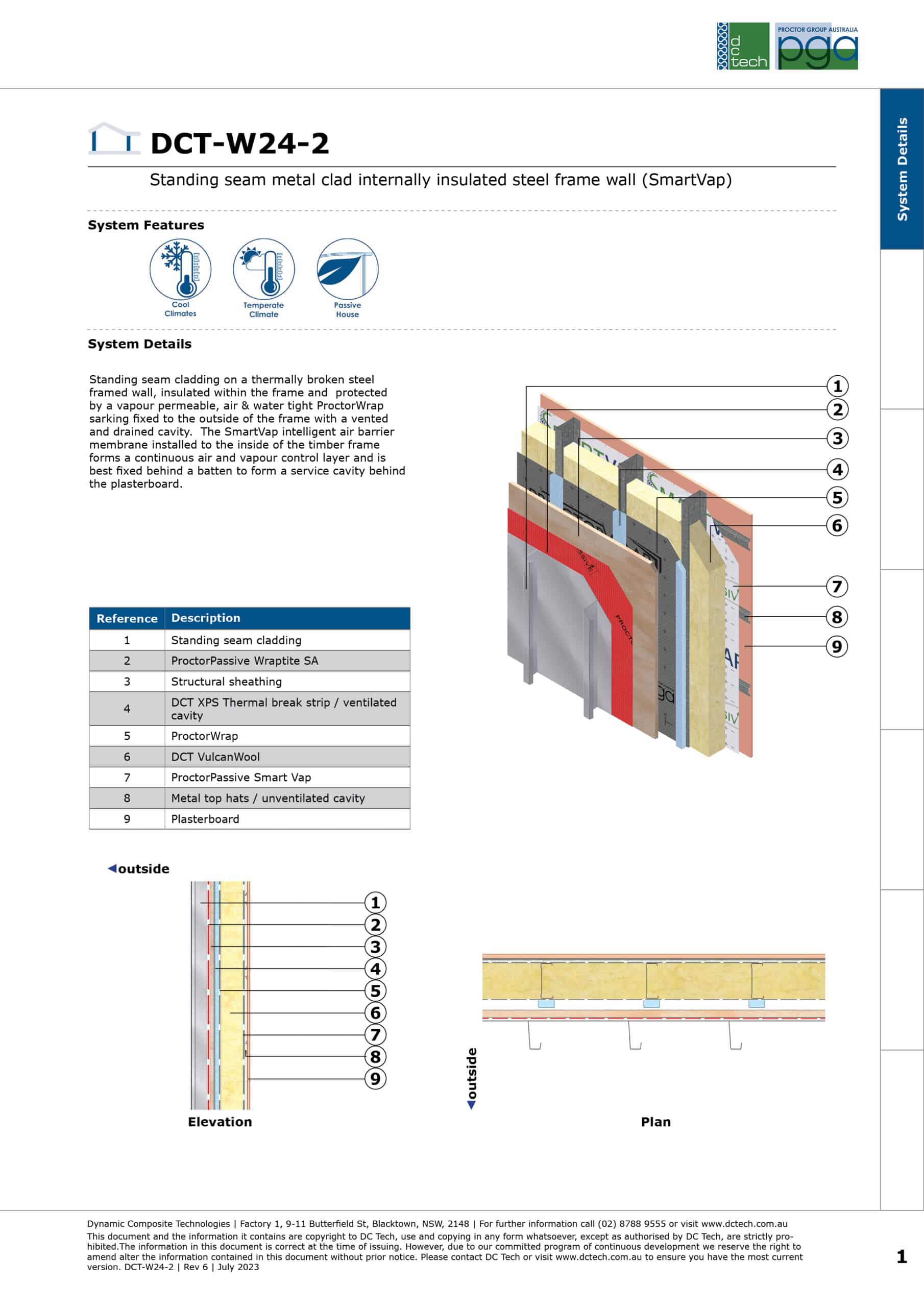

DCT-W24-2

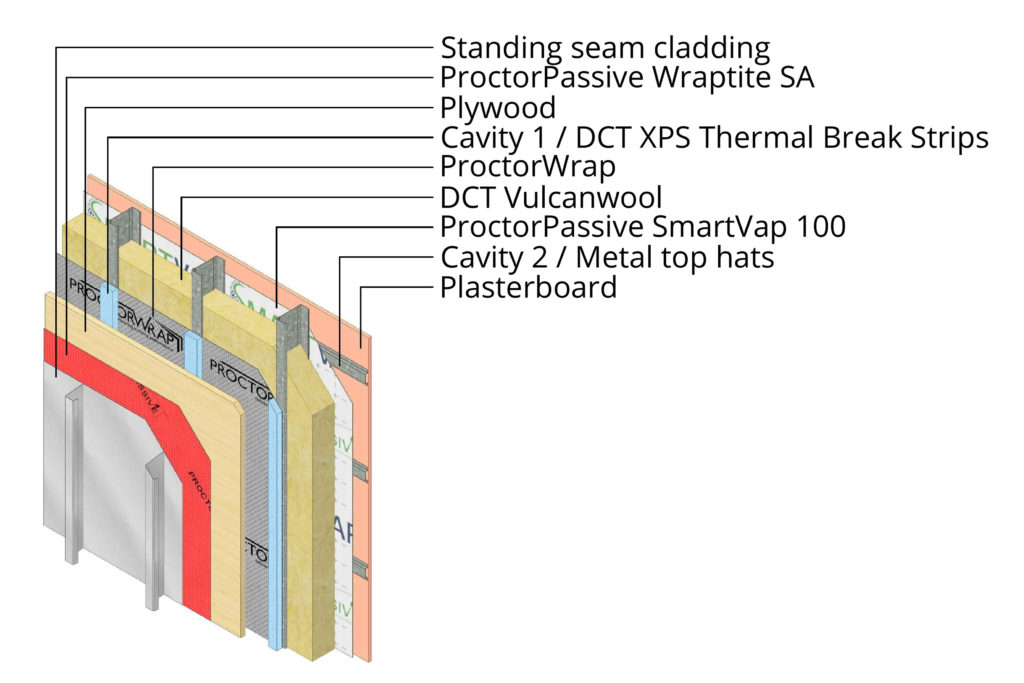

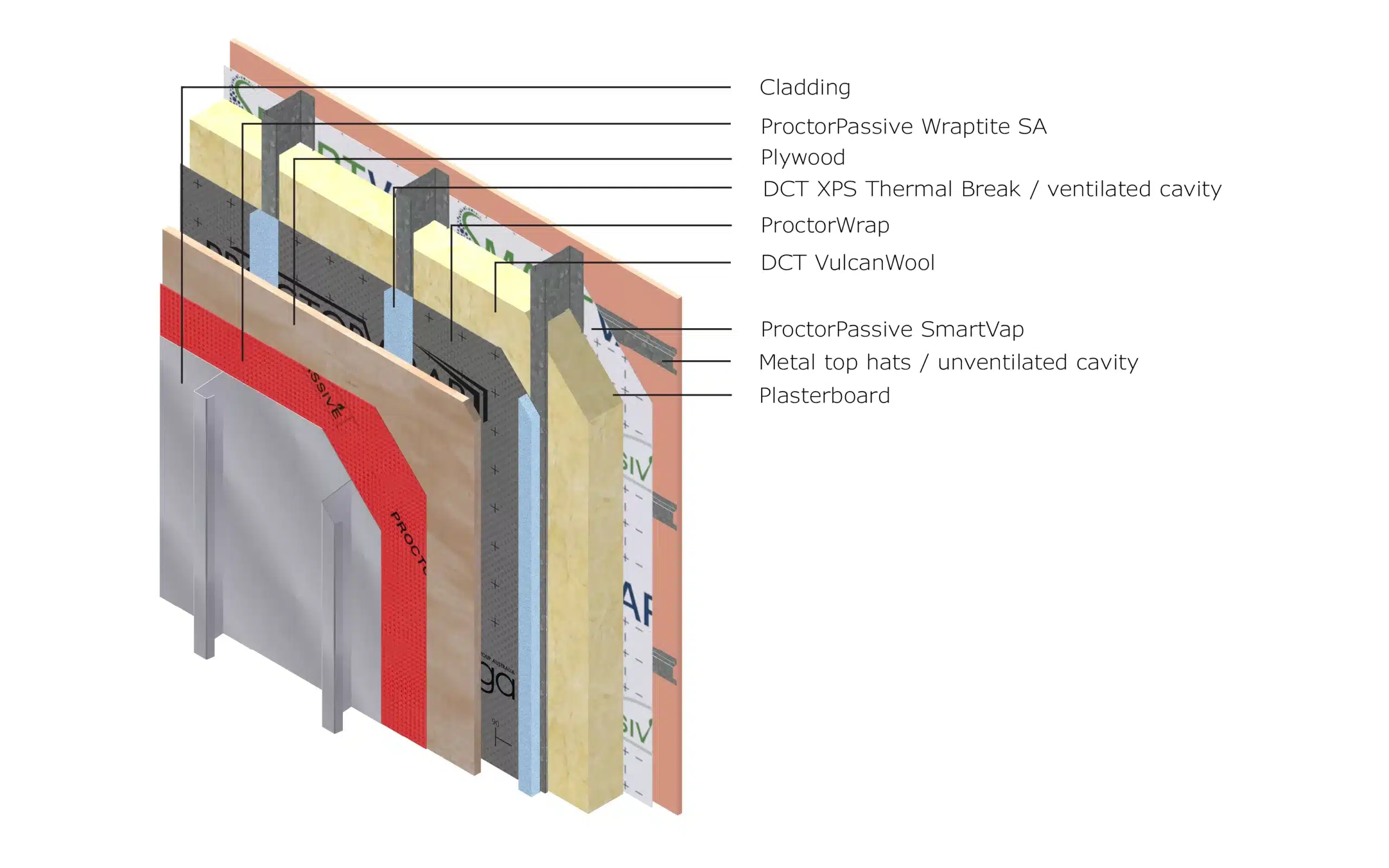

STANDING SEAM METAL CLAD INTERNALLY INSULATED STEEL FRAME WALL (SMARTVAP)
Standing seam cladding on a thermally broken steel framed wall, insulated within the frame and protected by a vapour permeable, air & water tight ProctorWrap sarking fixed to the outside of the frame with a vented and drained cavity. The SmartVap intelligent air barrier membrane installed to the inside of the timber frame forms a continuous air and vapour control layer and is best fixed behind a batten to form a service cavity behind the plasterboard.
Section J (NCC 2019) R-Value Calculator
ProctorPassive Wraptite Self Adhesive (SA) is a light duty vapour permeable membrane for wall and metal roof application functioning as water and air barrier in one innovative vapour permeable self-adhering product.
ProctorWrap CW is a light duty vapour permeable wall wrap designed for use with timber and steel frame commercial wall constructions. ProctorWrap CW-IT is supplied with double integrated tape.
ProctorPassive SmartVap is a light duty air barrier and variable vapour diffusion vapour control membrane.
DCT XPS Thermal Break Strips are closed cell high compressive strength, low moisture absorption extruded polystyrene (XPS) strips to serve as thermal breaks for walls in commercial and residential applications.
