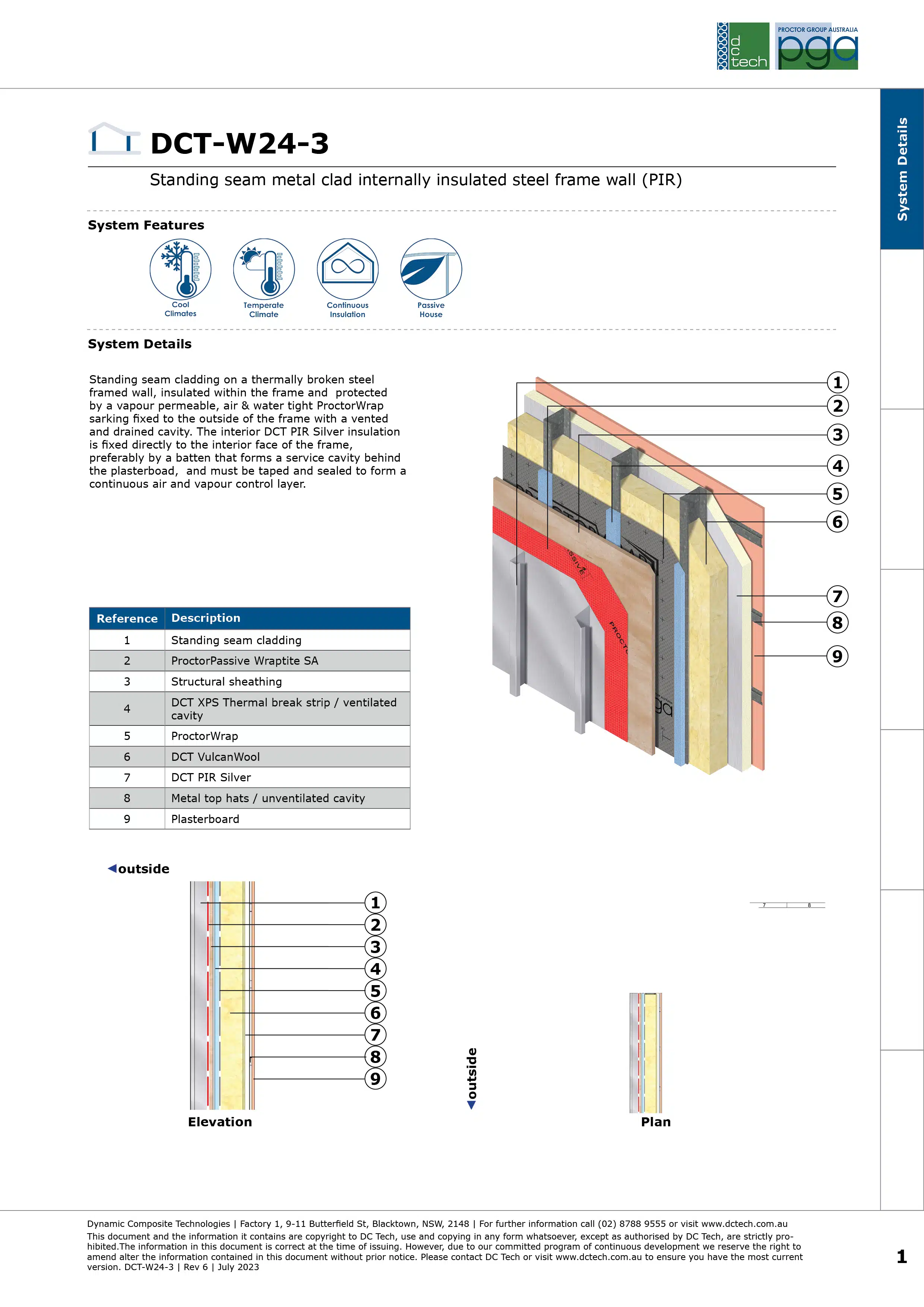

DCT-W24-3

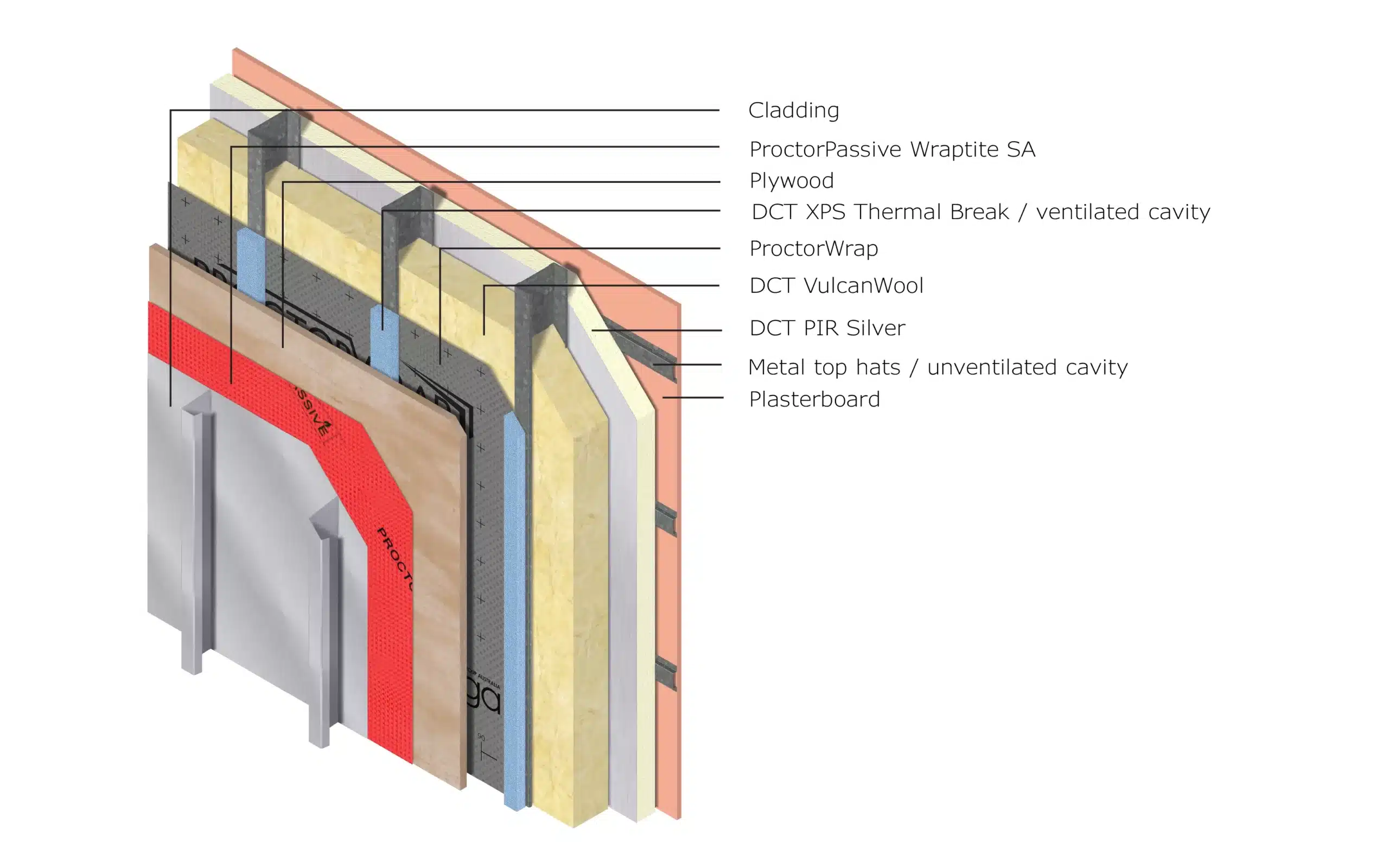

STANDING SEAM METAL CLAD INTERNALLY INSULATED STEEL FRAME WALL (PIR)

Standing seam cladding on a thermally broken steel framed wall, insulated within the frame and protected by a vapour permeable, air & water tight ProctorWrap sarking fixed to the outside of the frame with a vented and drained cavity. The interior DCT PIR Silver insulation is fixed directly to the interior face of the frame, preferably by a batten that forms a service cavity behind the plasterboard, and must be taped and sealed to form a continuous air and vapour control layer.

Section J (NCC 2019) R-Value Calculator

New call-to-action

ProctorPassive Wraptite Self Adhesive (SA) is a light duty vapour permeable membrane for wall and metal roof application functioning as water and air barrier in one innovative vapour permeable self-adhering product.

ProctorWrap CW is a light duty vapour permeable wall wrap designed for use with timber and steel frame commercial wall constructions. ProctorWrap CW-IT is supplied with double integrated tape.

DCT PIR Silver insulation is a general application thermoset PIR insulation board with two low emissivity foil facings, suited for use in non-exposed floor, roof, wall and ceiling applications in residential and commercial buildings.

DCT XPS Thermal Break Strips are closed cell high compressive strength, low moisture absorption extruded polystyrene (XPS) strips to serve as thermal breaks for walls in commercial and residential applications.
